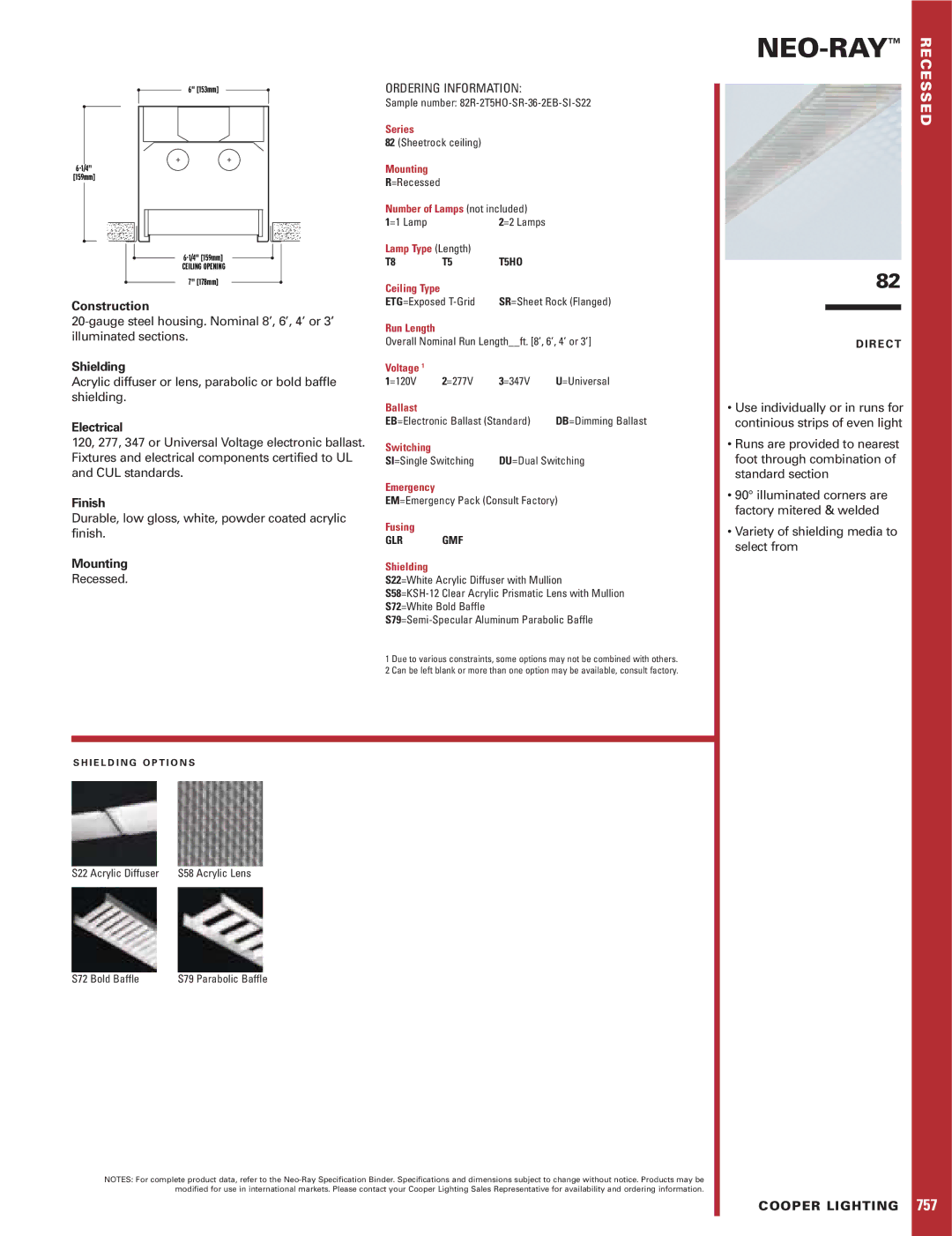

Cooper Lighting 82 specifications Neo-Ray, Construction, Shielding, Electrical, Finish, Mounting

6" [153mm]

6-1/4" [159mm]

6-1/4" [159mm]

CEILING OPENING 7" [178mm]

Construction

20-gauge steel housing. Nominal 8’, 6’, 4’ or 3’ illuminated sections.

Shielding

Acrylic diffuser or lens, parabolic or bold baffle shielding.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

Mounting

Recessed.

ORDERING INFORMATION:

Sample number: 82R-2T5HO-SR-36-2EB-SI-S22

Series

82 (Sheetrock ceiling)

Mounting

R=Recessed

Number of Lamps (not included)

1=1 Lamp		2=2 Lamps
Lamp Type (Length)
T8	T5	T5HO
Ceiling Type
ETG=Exposed T-Grid		SR=Sheet Rock (Flanged)

Run Length

Overall Nominal Run Length__ft. [8’, 6’, 4’ or 3’]

Voltage 1
1=120V	2=277V	3=347V	U=Universal
Ballast
EB=Electronic Ballast (Standard)			DB=Dimming Ballast
Switching
SI=Single Switching		DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

Shielding

S22=White Acrylic Diffuser with Mullion

S58=KSH-12 Clear Acrylic Prismatic Lens with Mullion S72=White Bold Baffle

S79=Semi-Specular Aluminum Parabolic Baffle

1 Due to various constraints, some options may not be combined with others. 2 Can be left blank or more than one option may be available, consult factory.

NEO-RAY™ RECESSED

82

D I R E C T

•Use individually or in runs for continious strips of even light

•Runs are provided to nearest foot through combination of standard section

•90° illuminated corners are factory mitered & welded

•Variety of shielding media to select from

S H I E L D I N G O P T I O N S

S22 Acrylic Diffuser S58 Acrylic Lens

S72 Bold Baffle S79 Parabolic Baffle

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

COOPER LIGHTING 757
