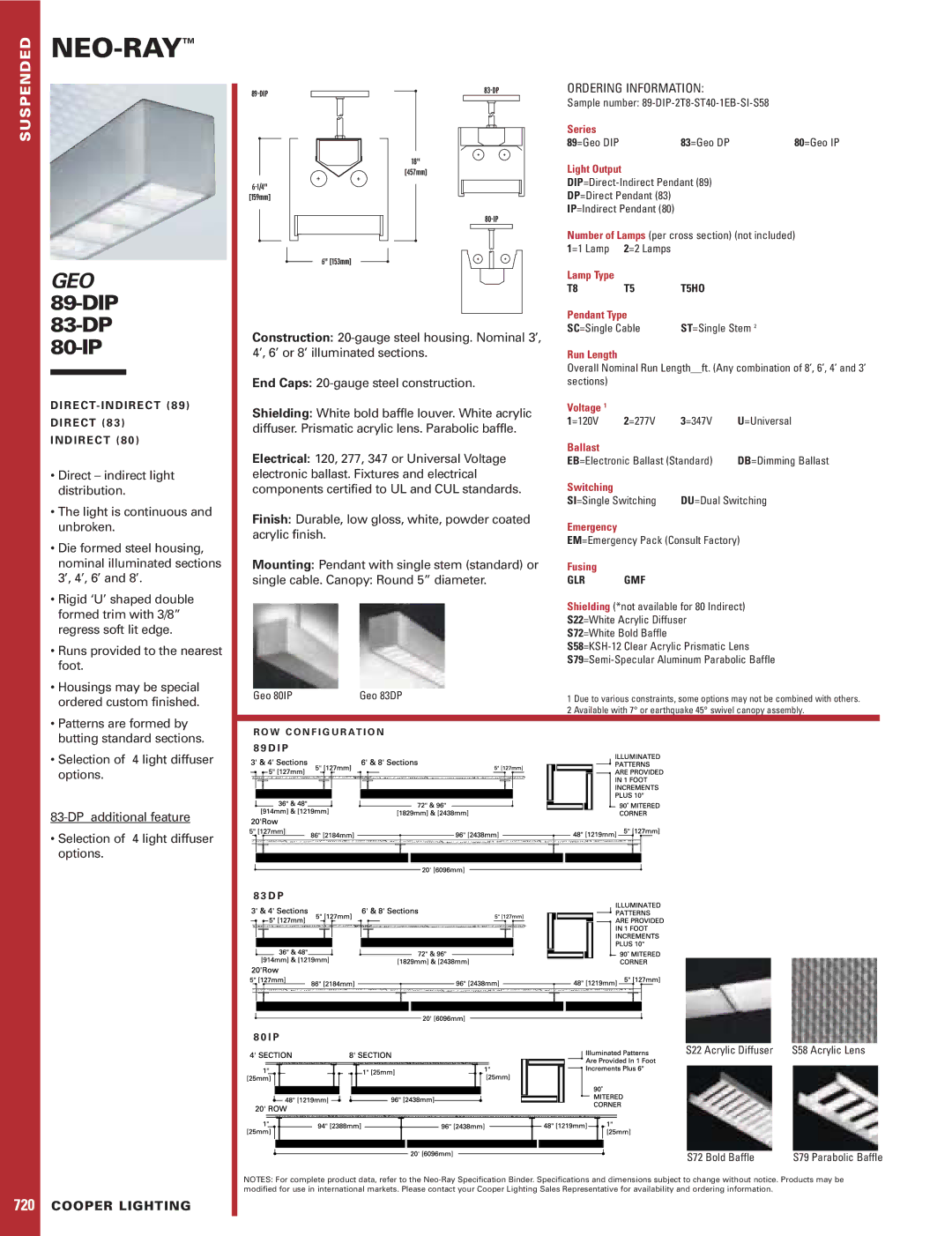

SUSPENDED NEO-RAY™

GEO 89-DIP83-DP

89-DIP

6-1/4"

[159mm]

6" [153mm]

83-DP

18"

[457mm]

80-IP

ORDERING INFORMATION:

Sample number: 89-DIP-2T8-ST40-1EB-SI-S58

Series
89=Geo DIP		83=Geo DP	80=Geo IP
Light Output
DIP=Direct-Indirect Pendant (89)
DP=Direct Pendant (83)
IP=Indirect Pendant (80)
Number of Lamps (per cross section) (not included)
1=1 Lamp	2=2 Lamps
Lamp Type
T8	T5	T5HO
Pendant Type
SC=Single Cable		ST=Single Stem 2

80-IP

D I R E C T- I N D I R E C T ( 8 9 ) D I R E C T ( 8 3 )

I N D I R E C T ( 8 0 )

• Direct – indirect light

distribution.

• The light is continuous and

unbroken.

• Die formed steel housing,

nominal illuminated sections

3’, 4’, 6’ and 8’.

• Rigid ‘U’ shaped double

formed trim with 3/8”

regress soft lit edge.

• Runs provided to the nearest

foot.

• Housings may be special

Construction: 20-gauge steel housing. Nominal 3’, 4’, 6’ or 8’ illuminated sections.

End Caps: 20-gauge steel construction.

Shielding: White bold baffle louver. White acrylic diffuser. Prismatic acrylic lens. Parabolic baffle.

Electrical: 120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish: Durable, low gloss, white, powder coated acrylic finish.

Mounting: Pendant with single stem (standard) or

single cable. Canopy: Round 5” diameter.

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

Voltage 1
1=120V	2=277V	3=347V	U=Universal
Ballast
EB=Electronic Ballast (Standard)			DB=Dimming Ballast
Switching
SI=Single Switching		DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

Shielding (*not available for 80 Indirect)

S22=White Acrylic Diffuser

S72=White Bold Baffle

S58=KSH-12 Clear Acrylic Prismatic Lens

S79=Semi-Specular Aluminum Parabolic Baffle

ordered custom finished.

• Patterns are formed by

butting standard sections.

• Selection of 4 light diffuser

options.

83-DP additional feature

•Selection of 4 light diffuser options.

720 COOPER LIGHTING

Geo 80IP	Geo 83DP	1	Due to various constraints, some options may not be combined with others.
		2	Available with 7° or earthquake 45° swivel canopy assembly.

R O W C O N F I G U R AT I O N

8 9 D I P

8 3 D P

8 0 I P

S22 Acrylic Diffuser S58 Acrylic Lens

S72 Bold Baffle S79 Parabolic Baffle

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
