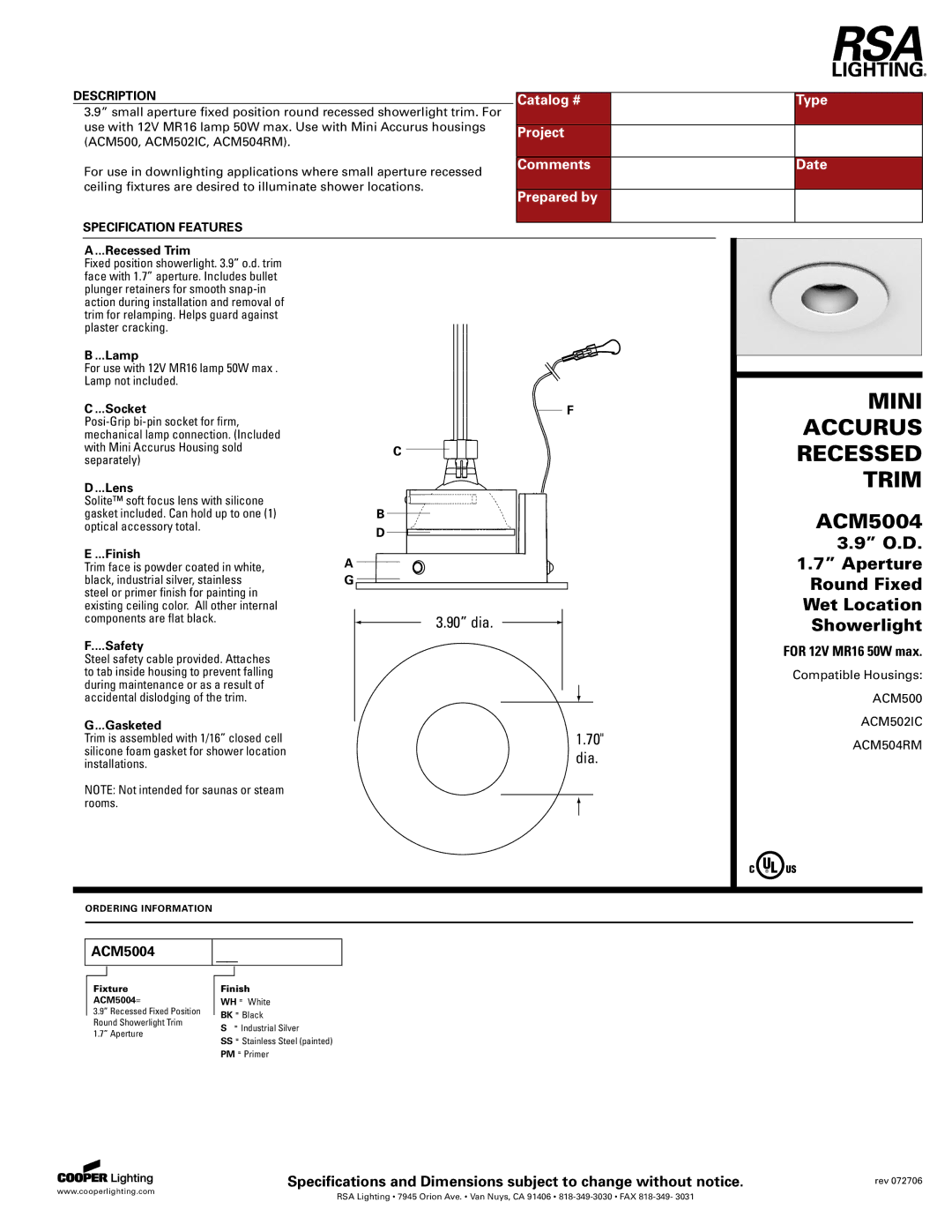

DESCRIPTION |
|
|
|
|
|
|
|
|
|
| Catalog # | |||
|
|
|
|
|
|
|
|
|
| |||||
| 3.9” small aperture fixed position round recessed showerlight trim. For |
| ||||||||||||
| use with 12V MR16 lamp 50W max. Use with Mini Accurus housings |
| Project | |||||||||||
| (ACM500, ACM502IC, ACM504RM). |
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| For use in downlighting applications where small aperture recessed |
| Comments | |||||||||||
|
|
|
|
| ||||||||||
| ceiling fixtures are desired to illuminate shower locations. |
| Prepared by | |||||||||||
|
|
|
|
|
|
|
|
|
|
|
| |||
| SPECIFICATION FEATURES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| A....Recessed Trim |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Fixed position showerlight. 3.9” o.d. trim |
|
|
|
|
|
|
|
|
|
|
|
|
|
| face with 1.7” aperture. Includes bullet |
|
|
|
|
|
|
|
|
|
|
|
|
|
| plunger retainers for smooth |
|
|
|
|
|
|
|
|
|
|
|
|
|
| action during installation and removal of |
|
|
|
|
|
|
|
|
|
|
|
|
|
| trim for relamping. Helps guard against |
|
|
|
|
|
|
|
|
|
|
|
|
|
| plaster cracking. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| B....Lamp |
|
|
|
|
|
|
|
|
|
|
|
|
|
| For use with 12V MR16 lamp 50W max . |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Lamp not included. |
|
|
|
|
|
|
|
|
|
|
|
|
|
| C....Socket |
|
|
|
|
|
|
|
|
|
|
|
| F |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| mechanical lamp connection. (Included |
|
|
|
|
|
|
|
|
|
|
|
|
|
| with Mini Accurus Housing sold |
|
|
|
|
|
|
|
|
|
|
|
|
|
| separately) | C |
|
|
|
|
|
|
|
| ||||
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Type
Date
MINI ACCURUS RECESSED TRIM
D....Lens
Solite™ soft focus lens with silicone gasket included. Can hold up to one (1) optical accessory total.
E....Finish
Trim face is powder coated in white, black, industrial silver, stainless steel or primer finish for painting in existing ceiling color. All other internal components are flat black.
F....Safety
Steel safety cable provided. Attaches to tab inside housing to prevent falling during maintenance or as a result of accidental dislodging of the trim.
G...Gasketed
Trim is assembled with 1/16” closed cell silicone foam gasket for shower location installations.
NOTE: Not intended for saunas or steam rooms.
B |
D |
A
G
3.90” dia.
1.70"
dia.
ACM5004
3.9” O.D.
1.7” Aperture
Round Fixed
Wet Location
Showerlight
FOR 12V MR16 50W max.
Compatible Housings:
ACM500
ACM502IC
ACM504RM
ORDERING INFORMATION
ACM5004
__
Fixture
ACM5004=
3.9” Recessed Fixed Position
Round Showerlight Trim
1.7” Aperture
Finish
WH = White
BK = Black
S= Industrial Silver
SS= Stainless Steel (painted) PM = Primer
Specifications and Dimensions subject to change without notice.
rev 072706
