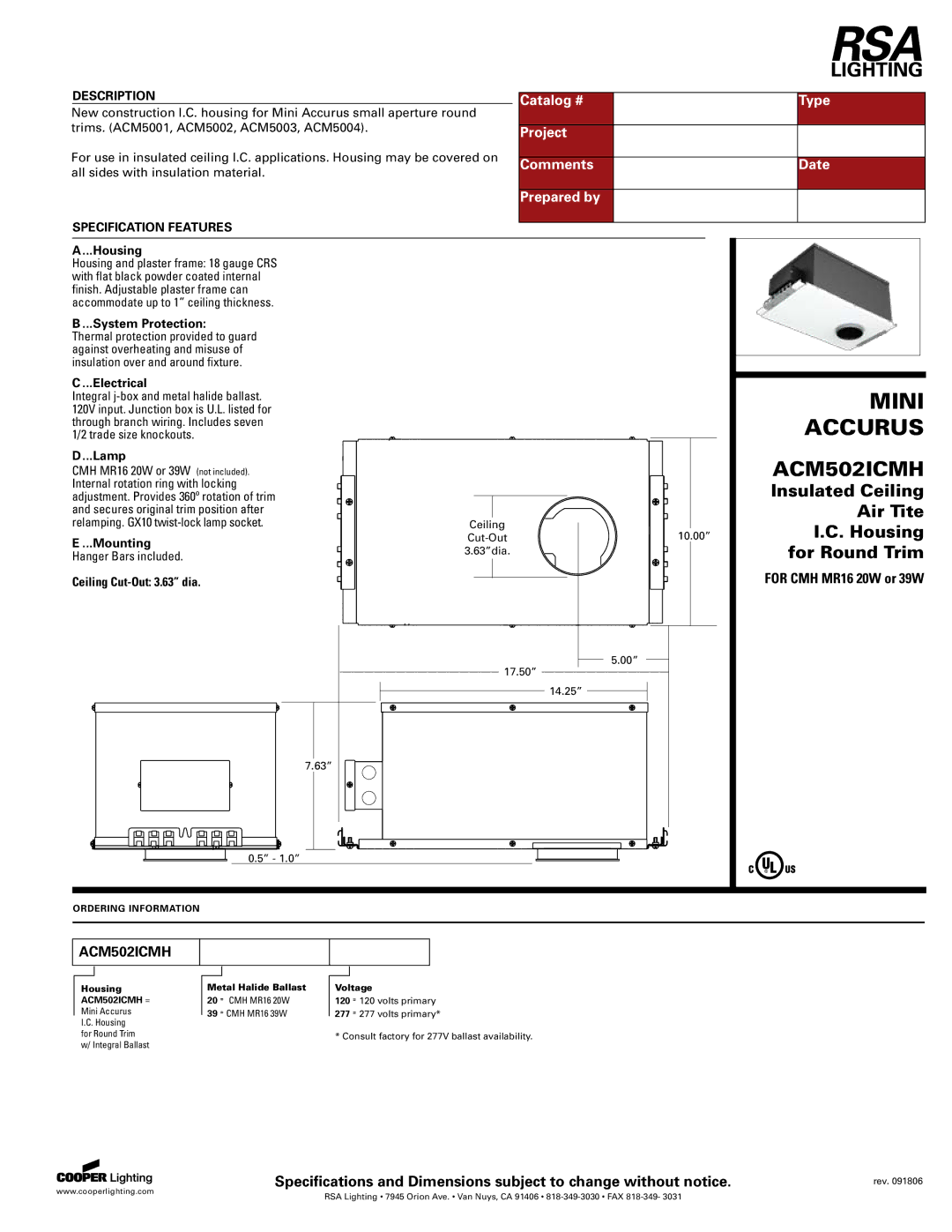

DESCRIPTION



































































Catalog #



















Type

New construction I.C. housing for Mini Accurus small aperture round























































trims. (ACM5001, ACM5002, ACM5003, ACM5004).



































































Project























For use in insulated ceiling I.C. applications. Housing may be covered on















































Comments



















Date

all sides with insulation material.











































































































































































Prepared by























SPECIFICATION FEATURES







































































































































































A....Housing





















































Housing and plaster frame: 18 gauge CRS





















































with flat black powder coated internal





















































finish. Adjustable plaster frame can





















































accommodate up to 1” ceiling thickness.





















































B....System Protection:





















































Thermal protection provided to guard





















































against overheating and misuse of





















































insulation over and around fixture.





















































C....Electrical





































































































MINI

Integral j-box and metal halide ballast.

















































120V input. Junction box is U.L. listed for

















































through branch wiring. Includes seven

















































ACCURUS

1/2 trade size knockouts.



















































D....Lamp



















































ACM502ICMH

CMH MR16 20W or 39W (not included).























































Internal rotation ring with locking























































Insulated Ceiling

adjustment. Provides 360º rotation of trim



















































and secures original trim position after





















































Air Tite





















































relamping. GX10 twist-lock lamp socket.









Ceiling







































I.C. Housing

E....Mounting









Cut-Out



























10.00”





















































3.63”dia.





































for Round Trim

Hanger Bars included.

































































































































Ceiling Cut-Out: 3.63” dia.



















































FOR CMH MR16 20W or 39W























































































































































































































































































5.00”

17.50”

14.25”

7.63”

0.5” - 1.0”

ORDERING INFORMATION

ACM502ICMH

Housing ACM502ICMH = Mini Accurus I.C. Housing

for Round Trim

w/ Integral Ballast

Metal Halide Ballast

20 = CMH MR16 20W

39 = CMH MR16 39W

Voltage

120 = 120 volts primary

277 = 277 volts primary*

* Consult factory for 277V ballast availability.

Specifications and Dimensions subject to change without notice.

rev. 091806

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1 Page 1
Page 1
Image 1
Cooper Lighting ACM502ICMH specifications Mini, Accurus
Page 1 Page 1

ACM502ICMH specifications

Cooper Lighting's ACM502ICMH is a cutting-edge recessed ceiling fixture that stands out for its energy efficiency, aesthetic appeal, and advanced lighting technology. It is designed for various applications, including residential and commercial settings, seamlessly integrating into both modern and traditional spaces.

One of the main features of the ACM502ICMH is its compact design, which allows it to fit into tight ceiling spaces while still providing robust lighting solutions. This fixture is engineered for IC (Insulation Contact) applications, meaning it can be covered with insulation without risking overheating, making it an ideal choice for energy-conscious homeowners and builders.

The ACM502ICMH employs high-quality, energy-efficient compact fluorescent or LED lamp options, ensuring reduced energy consumption while providing ample illumination. These lighting technologies contribute to significant long-term savings on energy bills, while also reducing the carbon footprint of residential and commercial properties. The fixture is available in various wattage options, allowing users to select the best intensity for their specific needs.

Another remarkable aspect of the ACM502ICMH is its exceptional color rendering capabilities. With a Color Rendering Index (CRI) typically exceeding 90, this fixture enhances the appearance of spaces by ensuring colors appear true and vibrant, making it suitable for art galleries, retail environments, and display areas.

Moreover, the ACM502ICMH features an adjustable trim, allowing for versatility in light direction. This is particularly beneficial for highlighting artwork, architectural elements, or creating mood lighting in specific areas. The fixture is also designed for easy installation, equipped with pre-wired connections that simplify the process, making it a popular choice among electricians and DIY enthusiasts alike.

The durability of the ACM502ICMH is another notable characteristic. Constructed with high-quality materials and a long-lasting lamp life, this fixture minimizes the need for frequent replacements. Available in various finishes, it not only serves a functional purpose but also complements the aesthetic of any interior design.

In conclusion, the Cooper Lighting ACM502ICMH is a highly efficient recessed fixture that combines modern technology with user-friendly features. Its energy-efficient operation, exceptional color rendering, and flexible design make it an excellent choice for anyone looking to enhance their lighting setup.
