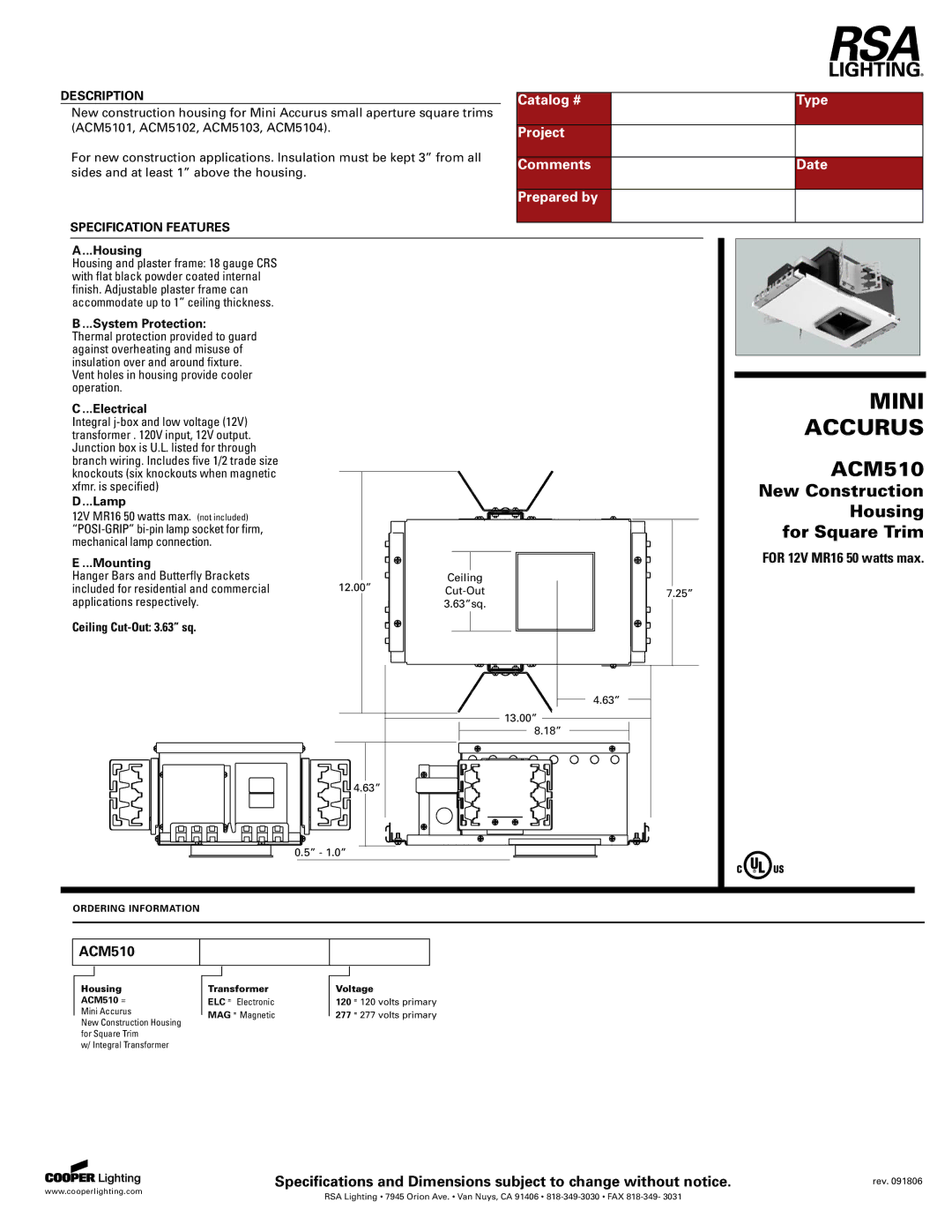

DESCRIPTION | Catalog # | Type | |
New construction housing for Mini Accurus small aperture square trims |
|
| |
(ACM5101, ACM5102, ACM5103, ACM5104). | Project |
| |
For new construction applications. Insulation must be kept 3” from all | Comments | Date | |
sides and at least 1” above the housing. | |||
|
| ||
| Prepared by |
| |
SPECIFICATION FEATURES |
|
| |
A....Housing |
|
| |
Housing and plaster frame: 18 gauge CRS |
|
| |
with flat black powder coated internal |
|
| |
finish. Adjustable plaster frame can |
|
| |
accommodate up to 1” ceiling thickness. |
|
| |
B....System Protection: |
|
| |
Thermal protection provided to guard |
|
| |
against overheating and misuse of |
|
| |
insulation over and around fixture. |
|
| |
Vent holes in housing provide cooler |
|
| |
operation. |
| MINI | |
C....Electrical |
| ||
transformer . 120V input, 12V output. |
| ACCURUS | |
Integral |
|
| |
Junction box is U.L. listed for through |
|
| |
branch wiring. Includes five 1/2 trade size |
| ACM510 | |
knockouts (six knockouts when magnetic |
| ||
xfmr. is specified) |
| New Construction | |
D....Lamp |
| Housing | |
12V MR16 50 watts max. (not included) |
| ||
| for Square Trim | ||
mechanical lamp connection. |
|
|
E....Mounting |
|
| FOR 12V MR16 50 watts max. |
Hanger Bars and Butterfly Brackets |
| Ceiling |
|
included for residential and commercial | 12.00” | 7.25” | |
applications respectively. |
| 3.63”sq. |
|
Ceiling |
|
|
|
|
|
| 4.63” |
|
|
| 13.00” |
|
|
| 8.18” |
| 4.63” |
|
|
| 0.5” - 1.0” |
|
|
ORDERING INFORMATION |
|
|
|
ACM510
__
__
Housing
ACM510 =
Mini Accurus
New Construction Housing for Square Trim
w/ Integral Transformer
Transformer
ELC = Electronic
MAG = Magnetic
Voltage
120 = 120 volts primary
277 = 277 volts primary
Specifications and Dimensions subject to change without notice. | rev. 091806 |
