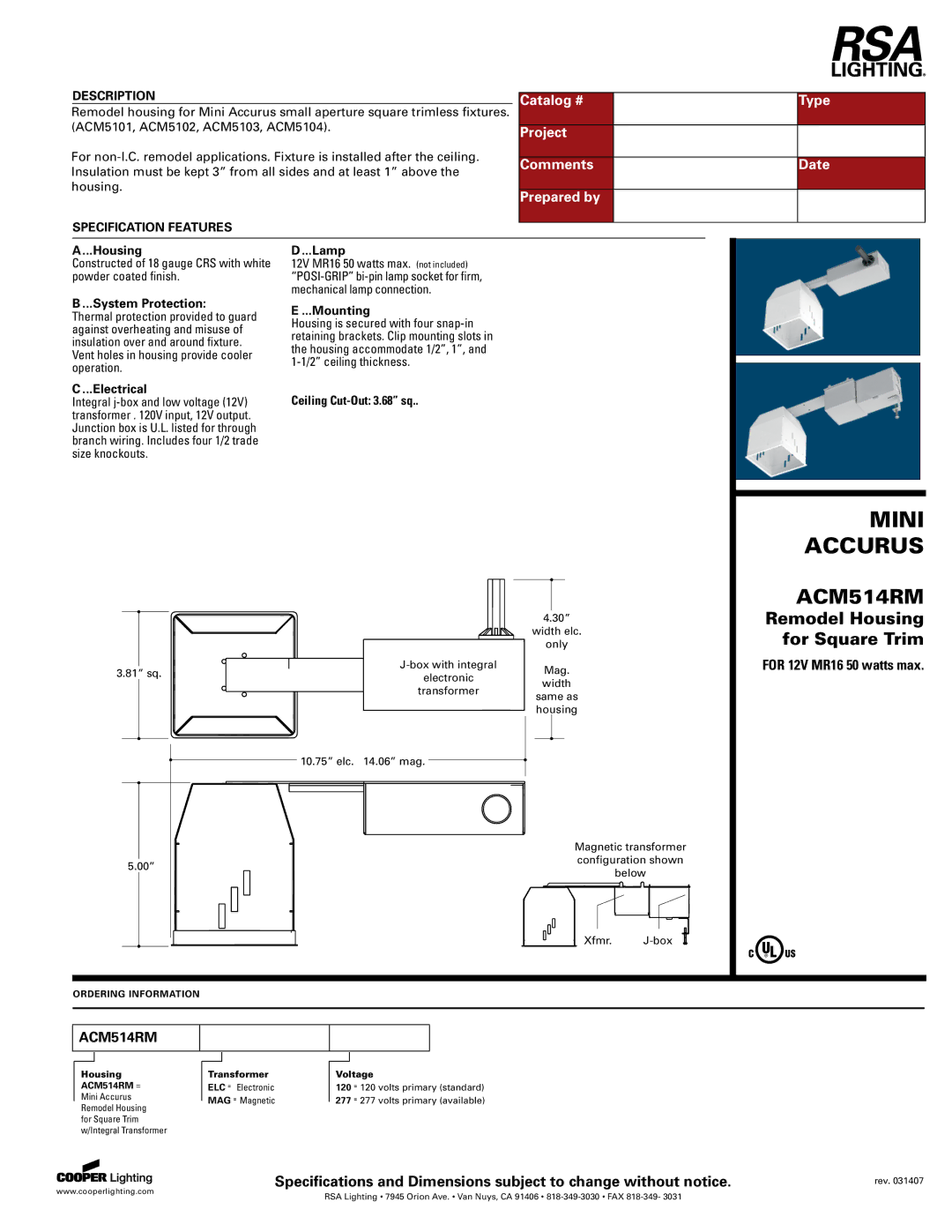

DESCRIPTION

























Catalog #









Type



Remodel housing for Mini Accurus small aperture square trimless fixtures.











(ACM5101, ACM5102, ACM5103, ACM5104).



















Project

































For non-I.C. remodel applications. Fixture is installed after the ceiling.



















Comments









Date

Insulation must be kept 3” from all sides and at least 1” above the



























housing.























Prepared by



































SPECIFICATION FEATURES





























































A....Housing

D....Lamp

















Constructed of 18 gauge CRS with white

12V MR16 50 watts max. (not included)

















powder coated finish.

“POSI-GRIP” bi-pin lamp socket for firm,

















B....System Protection:

mechanical lamp connection.

















E....Mounting

















Thermal protection provided to guard

















Housing is secured with four snap-in

















against overheating and misuse of

















retaining brackets. Clip mounting slots in

















insulation over and around fixture.

















the housing accommodate 1/2”, 1”, and

















Vent holes in housing provide cooler

















1-1/2” ceiling thickness.

















operation.



















































C....Electrical

Ceiling Cut-Out: 3.68” sq..

















Integral j-box and low voltage (12V)

















transformer . 120V input, 12V output.



















Junction box is U.L. listed for through



















branch wiring. Includes four 1/2 trade



















size knockouts.















































MINI







ACCURUS







ACM514RM





4.30”

Remodel Housing





width elc.

for Square Trim





only

3.81” sq.

J-box with integral

Mag.

FOR 12V MR16 50 watts max.

electronic



width









transformer





same as













housing





10.75” elc. 14.06” mag.





5.00”

Magnetic transformer configuration shown below

Xfmr. J-box

ORDERING INFORMATION

ACM514RM

__

__

Housing ACM514RM = Mini Accurus Remodel Housing for Square Trim w/Integral Transformer

Transformer

ELC = Electronic MAG = Magnetic

Voltage

120 = 120 volts primary (standard)

277 = 277 volts primary (available)

Specifications and Dimensions subject to change without notice.

rev. 031407

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
