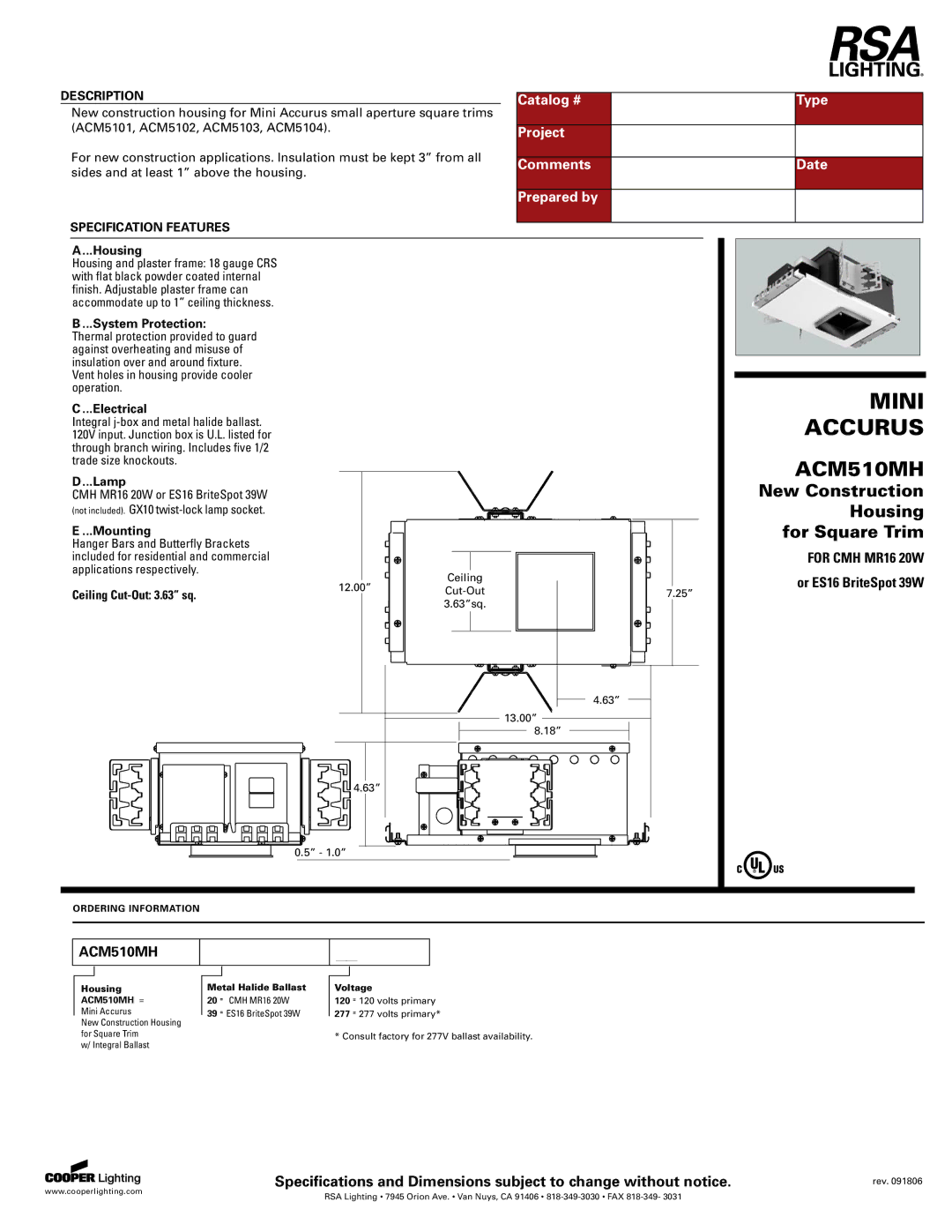

DESCRIPTION |
|
|
| |
| Catalog # | Type | ||
New construction housing for Mini Accurus small aperture square trims | ||||
|
|
| ||
(ACM5101, ACM5102, ACM5103, ACM5104). |
|
|
| |
| Project |
| ||
For new construction applications. Insulation must be kept 3” from all |
|
|
| |
| Comments | Date | ||
sides and at least 1” above the housing. |
| |||
|
|
|
Prepared by
SPECIFICATION FEATURES |
|
|
| |
A....Housing |
|
|
| |
Housing and plaster frame: 18 gauge CRS |
|
|
| |
with flat black powder coated internal |
|
|
| |
finish. Adjustable plaster frame can |
|
|
| |
accommodate up to 1” ceiling thickness. |
|
|
| |
B....System Protection: |
|
|
| |
Thermal protection provided to guard |
|
|
| |
against overheating and misuse of |
|
|
| |
insulation over and around fixture. |
|
|
| |
Vent holes in housing provide cooler |
|
|
| |
operation. |
|
| MINI | |
C....Electrical |
|
| ||
120V input. Junction box is U.L. listed for |
|
| ACCURUS | |
Integral |
|
|
| |
through branch wiring. Includes five 1/2 |
|
|
| |
trade size knockouts. |
|
| ACM510MH | |
D....Lamp |
|
| ||
|
| New Construction | ||
CMH MR16 20W or ES16 BriteSpot 39W |
|
| ||
(not included). GX10 |
|
| Housing | |
E....Mounting |
|
| for Square Trim | |
Hanger Bars and Butterfly Brackets |
|
|
| |
included for residential and commercial |
|
| FOR CMH MR16 20W | |
applications respectively. |
| Ceiling | or ES16 BriteSpot 39W | |
| 12.00” | |||
Ceiling | ||||
| 7.25” | |||
|
| 3.63”sq. |
| |
|
|
| 4.63” | |
|
|
| 13.00” | |
|
|
| 8.18” | |
| 4.63” |
|
| |
| 0.5” - 1.0” |
|
| |
ORDERING INFORMATION |
|
|
|
ACM510MH
__
__
Housing ACM510MH = Mini Accurus
New Construction Housing for Square Trim
w/ Integral Ballast
Metal Halide Ballast
20 = CMH MR16 20W
39 = ES16 BriteSpot 39W
Voltage
120 = 120 volts primary
277 = 277 volts primary*
* Consult factory for 277V ballast availability.
Specifications and Dimensions subject to change without notice. | rev. 091806 |
