DESCRIPTION

























































Catalog #



















Type

New construction I.C. housing for Mini Accurus small aperture square

































trims. (ACM5101, ACM5102, ACM5103, ACM5104).

























































Project























For use in insulated ceiling I.C. applications. Housing may be covered on





































Comments



















Date

all sides with insulation material.



















































































































































Prepared by























SPECIFICATION FEATURES







































































































































A....Housing











































Housing and plaster frame: 18 gauge CRS











































with flat black powder coated internal











































finish. Adjustable plaster frame can











































accommodate up to 1” ceiling thickness.











































B....System Protection:











































Thermal protection provided to guard











































against overheating and misuse of











































insulation over and around fixture.











































C....Electrical

















































































MINI

Integral j-box and low voltage (12V)







































transformer . 120V input, 12V output.







































branch wiring. Includes seven 1/2 trade







































ACCURUS

Junction box is U.L. listed for through











































size knockouts.











































ACM512IC











































D....Lamp













































12V MR16 50 watts max. (not included)











































Insulated Ceiling

“POSI-GRIP” bi-pin lamp socket for firm,







































mechanical lamp connection.









































Air Tite







Ceiling





























E....Mounting



































I.C. Housing







Cut-Out

















10.00”

































Hanger Bars included.







3.63”sq.



























for Square Trim



























Ceiling Cut-Out: 3.63” sq.













































































FOR 12V MR16 50 watts max.





















































































































































































































































5.00”

17.50”

14.25”

7.63”

0.5” - 1.0”

ORDERING INFORMATION

ACM512IC

Housing ACM512IC = Mini Accurus I.C. Housing for Square Trim

w/ Integral Transformer

Transformer

ELC = Electronic

MAG = Magnetic

Voltage

120 = 120 volts primary

277 = 277 volts primary

Specifications and Dimensions subject to change without notice.

rev. 091806

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1

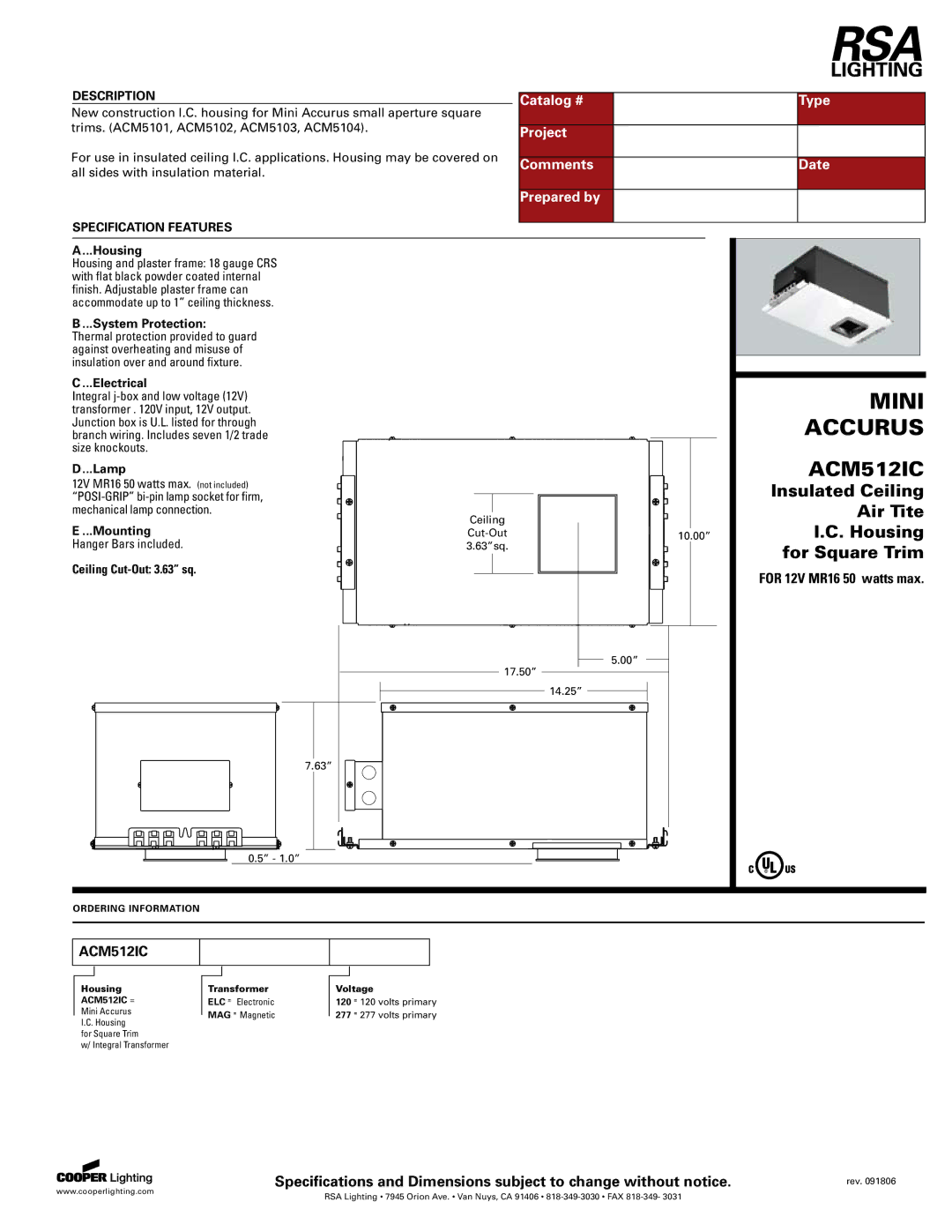

Image 1
