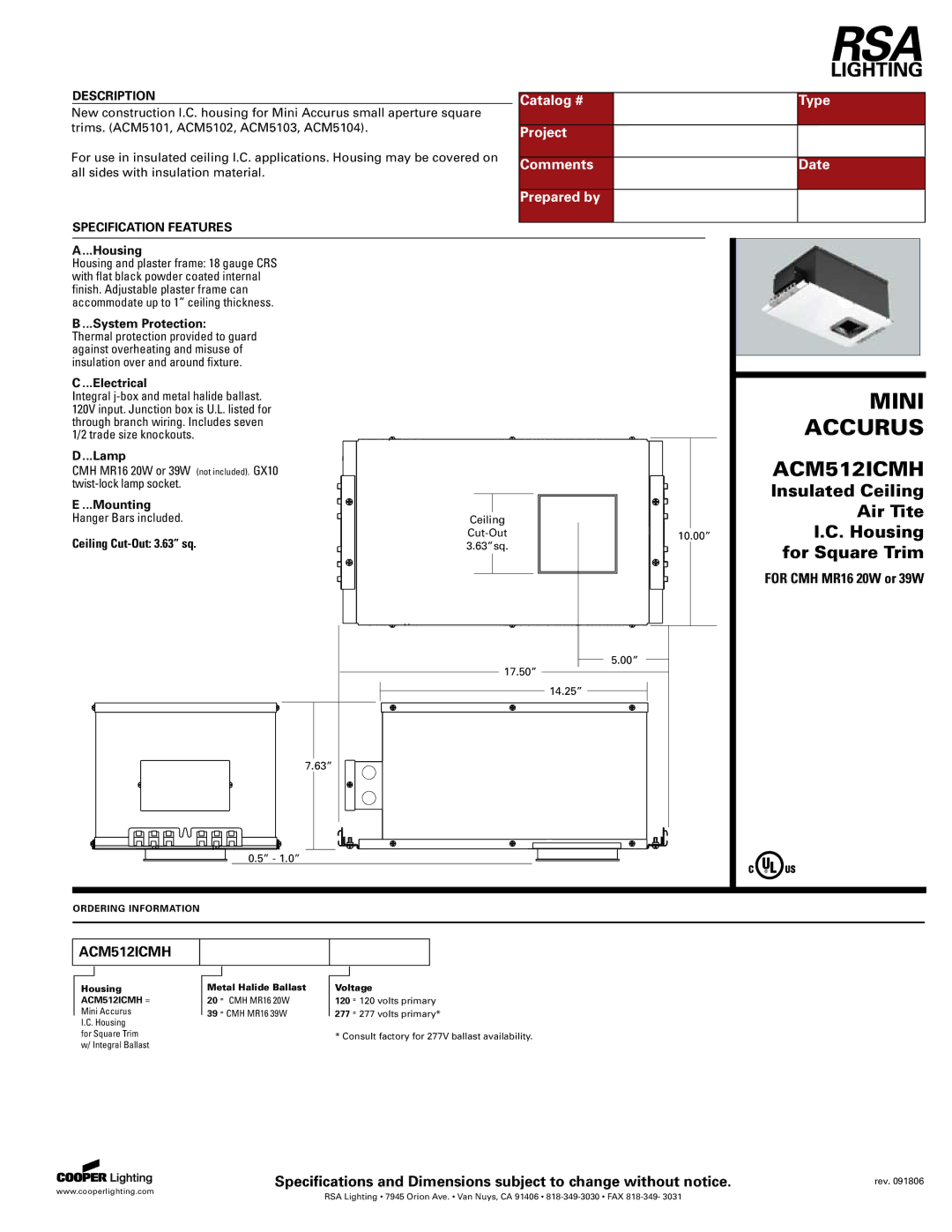

DESCRIPTION

























































Catalog #



















Type

New construction I.C. housing for Mini Accurus small aperture square

































trims. (ACM5101, ACM5102, ACM5103, ACM5104).

























































Project























For use in insulated ceiling I.C. applications. Housing may be covered on





































Comments



















Date

all sides with insulation material.























































































































































Prepared by























SPECIFICATION FEATURES









































































































































A....Housing











































Housing and plaster frame: 18 gauge CRS











































with flat black powder coated internal











































finish. Adjustable plaster frame can











































accommodate up to 1” ceiling thickness.











































B....System Protection:











































Thermal protection provided to guard











































against overheating and misuse of











































insulation over and around fixture.











































C....Electrical

















































































MINI

Integral j-box and metal halide ballast.







































120V input. Junction box is U.L. listed for







































through branch wiring. Includes seven







































ACCURUS

1/2 trade size knockouts.









































D....Lamp









































ACM512ICMH

CMH MR16 20W or 39W (not included). GX10













































twist-lock lamp socket.













































Insulated Ceiling

E....Mounting



















































































Air Tite

Hanger Bars included.









Ceiling

































































I.C. Housing

Ceiling Cut-Out: 3.63” sq.









Cut-Out

















10.00”











































3.63”sq.



























for Square Trim























































































































FOR CMH MR16 20W or 39W



























































































































































































































































5.00”

17.50”

14.25”

7.63”

0.5” - 1.0”

ORDERING INFORMATION

ACM512ICMH

Housing ACM512ICMH = Mini Accurus I.C. Housing

for Square Trim w/ Integral Ballast

Metal Halide Ballast

20 = CMH MR16 20W

39 = CMH MR16 39W

Voltage

120 = 120 volts primary

277 = 277 volts primary*

* Consult factory for 277V ballast availability.

Specifications and Dimensions subject to change without notice.

rev. 091806

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1
