DESCRIPTION

















Catalog #







Type



New construction housing for Accurus square trims. Includes electronic



















metal halide ballast for use with 20W or 39W MR16 Metal Halide lamp.

















Project





























For new construction applications. Insulation must be kept 3” from all

















Comments







Date





sides and at least 1” above the housing.



















































Prepared by













SPECIFICATION FEATURES

















































A....Housing

















Housing and plaster frame: 18 gauge CRS

















with flat black powder coated internal

















finish. Adjustable plaster frame can

















accommodate up to 1” ceiling thickness.

















B....System Protection:

















Thermal protection provided to guard

















against overheating and misuse of

















insulation over and around fixture.

















Vent holes in housing provide cooler

































operation.











ACCURUS



C....Electrical











Integral j-box and electronic metal halide

ballast. 120V/277V input. Junction box





ACT951MH

is U.L. listed for through branch wiring.





Includes five 1/2 trade size knockouts.





New Construction

D....Lamp





Metal Halide

MR16 metal halide lamp 20 or 39 watts.





Housing

GX10 TAL lamp socket included. Internal





rotation ring with locking adjustment.





for 5” Square Trim

Provides 360º rotation of trim and secures





original trim position after relamping.





FOR METAL HALIDE MR16







E....Mounting



Ceiling

20W or 39W

Hanger Bars and Butterfly Brackets

12.00”

Cut-Out

7.25”

included for residential and commercial



4.50”sq.

applications respectively.











Ceiling Cut-Out: 4.50” sq.













4.63”







13.00”







8.18”



4.63”







0.5” - 1.0”





ORDERING INFORMATION







ACT951MH

__

__

Housing ACT951MH = Accurus New Construction Housing for Square Trim w/Integral Metal Halide Ballast

Lamp Wattage 20 = 20 watts 39 = 39 watts

Voltage

120 = 120 volts primary

277 = 277 volts primary

Specifications and Dimensions subject to change without notice.

rev 122007

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1

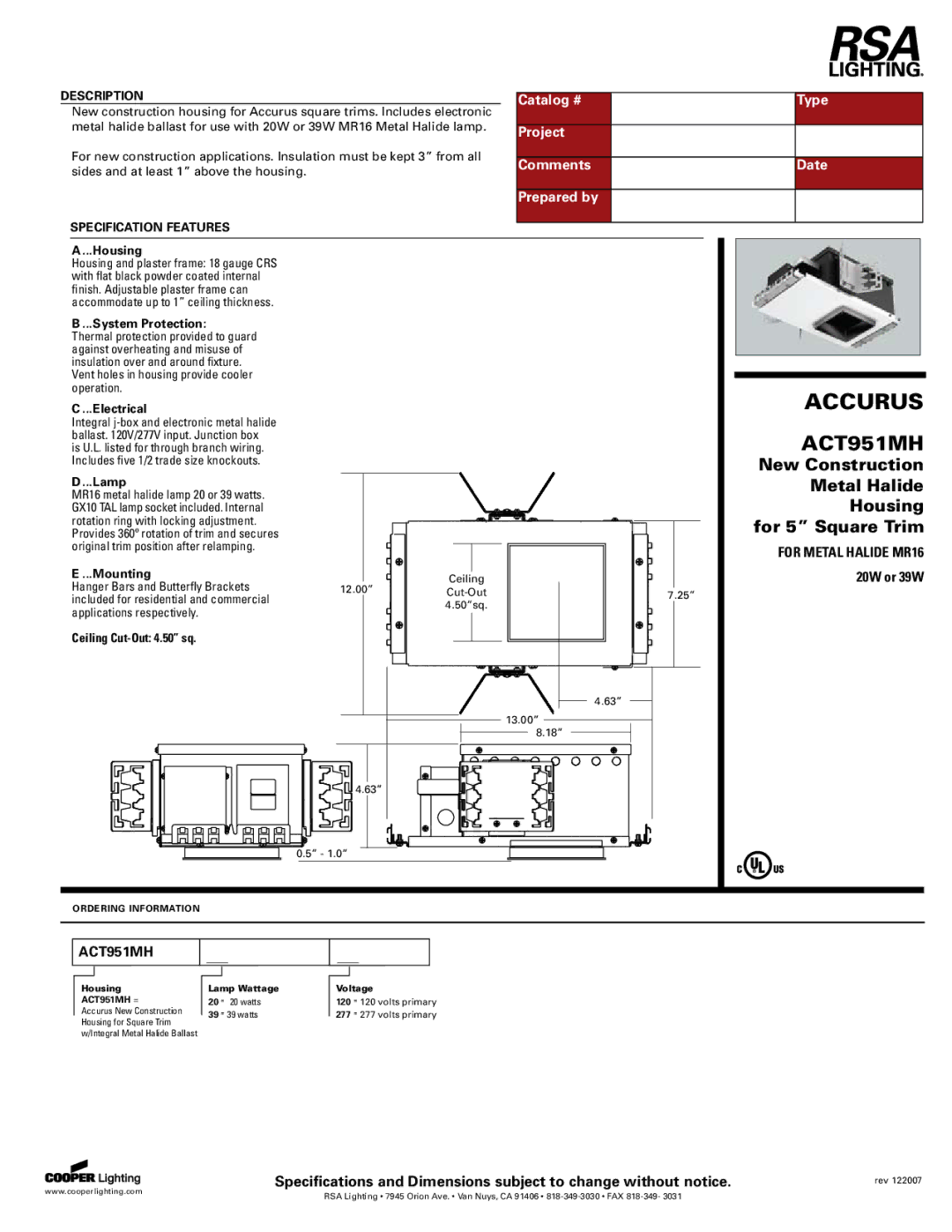

Image 1
