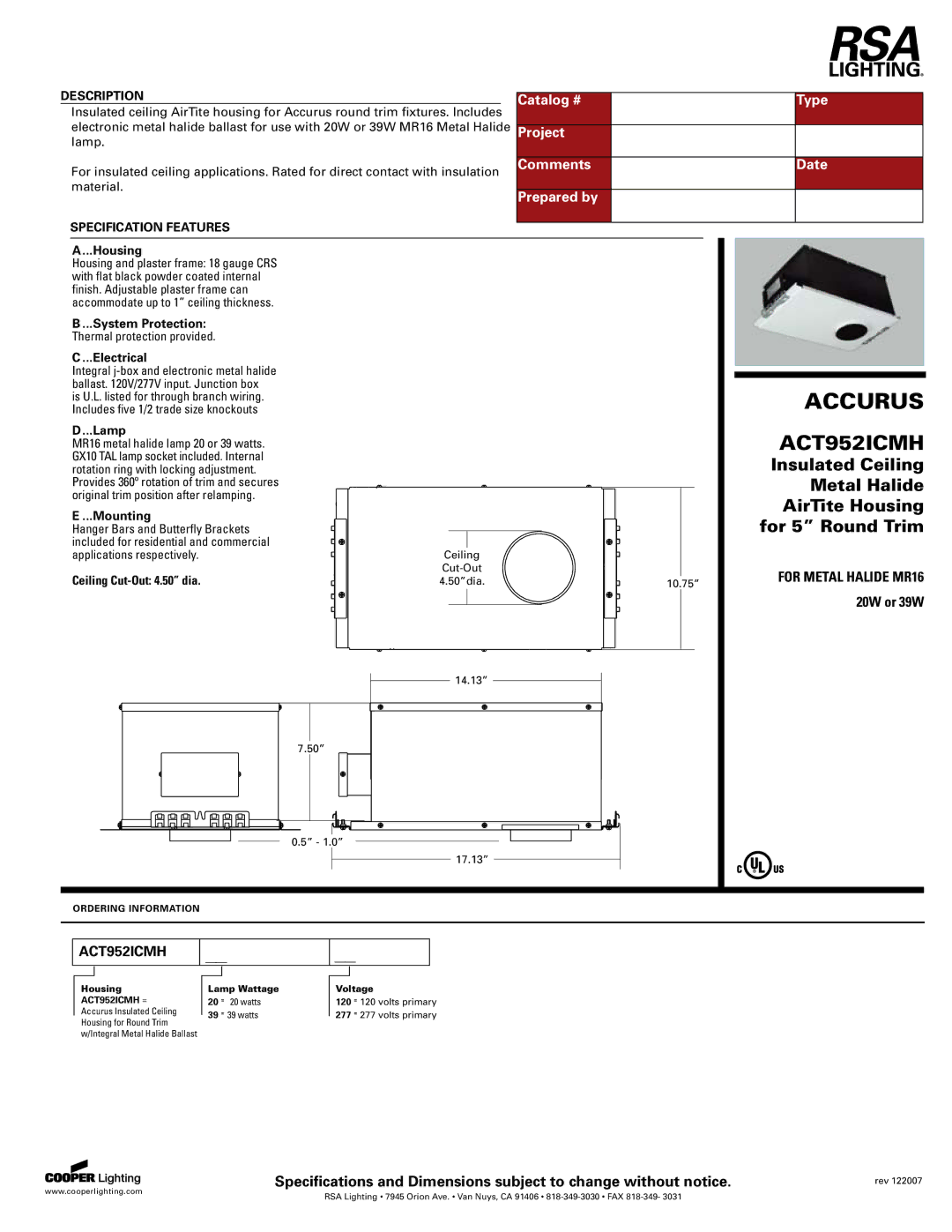

DESCRIPTION
Insulated ceiling AirTite housing for Accurus round trim fixtures. Includes electronic metal halide ballast for use with 20W or 39W MR16 Metal Halide lamp.
For insulated ceiling applications. Rated for direct contact with insulation material.
SPECIFICATION FEATURES
Catalog #
Project
Comments
Prepared by
Type
Date
A....Housing
Housing and plaster frame: 18 gauge CRS with flat black powder coated internal finish. Adjustable plaster frame can accommodate up to 1” ceiling thickness.
B....System Protection:
Thermal protection provided.
C....Electrical
Integral
is U.L. listed for through branch wiring. Includes five 1/2 trade size knockouts
D....Lamp
MR16 metal halide lamp 20 or 39 watts. GX10 TAL lamp socket included. Internal rotation ring with locking adjustment.
Provides 360º rotation of trim and secures original trim position after relamping.
E....Mounting
Hanger Bars and Butterfly Brackets included for residential and commercial applications respectively.
Ceiling Cut-Out: 4.50” dia.
7.50” |
0.5” - 1.0” |
Ceiling
4.50”dia.
14.13”
17.13”
10.75”
ACCURUS |
ACT952ICMH |
Insulated Ceiling Metal Halide AirTite Housing for 5” Round Trim
FOR METAL HALIDE MR16 20W or 39W
ORDERING INFORMATION
ACT952ICMH
__
__
Housing ACT952ICMH = Accurus Insulated Ceiling Housing for Round Trim w/Integral Metal Halide Ballast
Lamp Wattage 20 = 20 watts 39 = 39 watts
Voltage
120 = 120 volts primary
277 = 277 volts primary
Specifications and Dimensions subject to change without notice.
rev 122007
