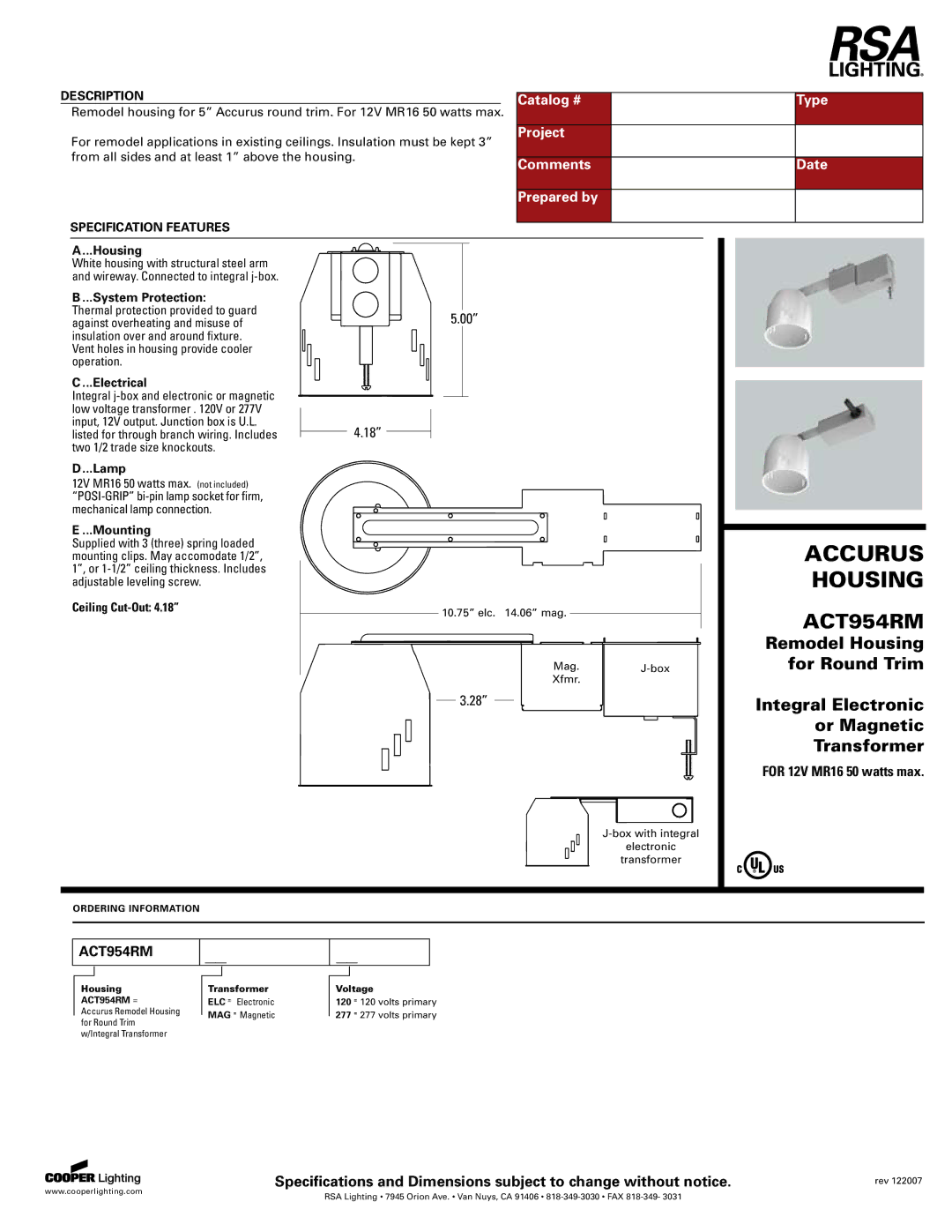

DESCRIPTION
DESCRIPTION



Catalog #



Type

Remodel housing for 5” Accurus round trim. For 12V MR16 50 watts max.



For remodel applications in existing ceilings. Insulation must be kept 3”

Project











from all sides and at least 1” above the housing.

Comments



Date











Prepared by





SPECIFICATION FEATURES









A....Housing









White housing with structural steel arm









and wireway. Connected to integral j-box.









B....System Protection:









Thermal protection provided to guard

5.00”







against overheating and misuse of







insulation over and around fixture.









Vent holes in housing provide cooler









operation.









C....Electrical









Integral j-box and electronic or magnetic









low voltage transformer . 120V or 277V









input, 12V output. Junction box is U.L.

4.18”







listed for through branch wiring. Includes







two 1/2 trade size knockouts.









D....Lamp









12V MR16 50 watts max. (not included)









“POSI-GRIP” bi-pin lamp socket for firm,









mechanical lamp connection.









E....Mounting









Supplied with 3 (three) spring loaded







ACCURUS

mounting clips. May accomodate 1/2”,







1”, or 1-1/2” ceiling thickness. Includes







HOUSING

adjustable leveling screw.







Ceiling Cut-Out: 4.18”

10.75” elc.

14.06” mag.



ACT954RM





















Remodel Housing





Mag.

J-box

for Round Trim





Xfmr.







3.28”





Integral Electronic









or Magnetic









Transformer









FOR 12V MR16 50 watts max.







J-box with integral









electronic









transformer



ORDERING INFORMATION









ACT954RM

__

__

Housing ACT954RM = Accurus Remodel Housing for Round Trim w/Integral Transformer

Transformer

ELC = Electronic MAG = Magnetic

Voltage

120 = 120 volts primary

277 = 277 volts primary

Specifications and Dimensions subject to change without notice.

rev 122007
