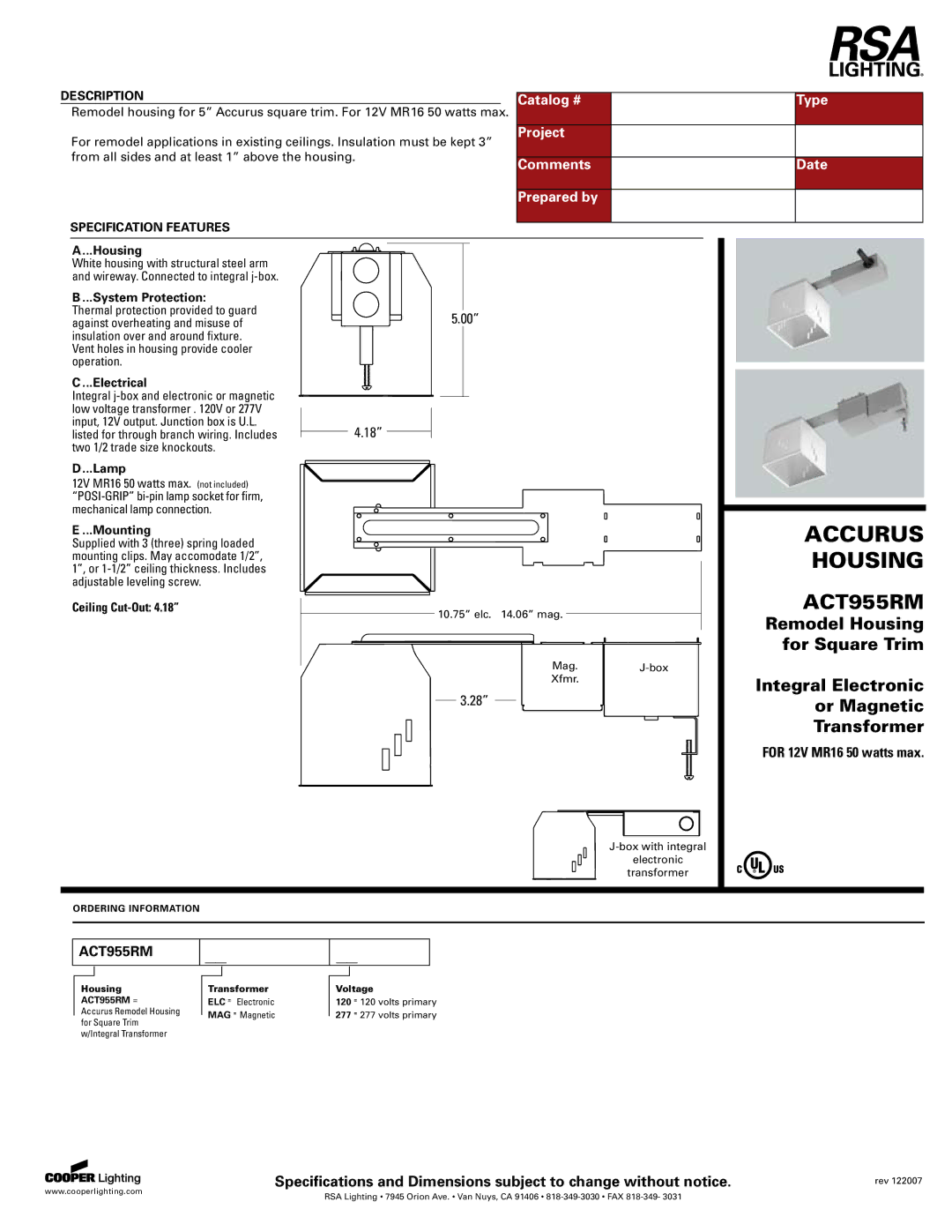

Cooper Lighting ACT955RM specifications Accurus, Remodel Housing, for Square Trim, Catalog #

DESCRIPTION		Catalog #	Type
Remodel housing for 5” Accurus square trim. For 12V MR16 50 watts max.
For remodel applications in existing ceilings. Insulation must be kept 3”		Project
from all sides and at least 1” above the housing.		Comments	Date
		Prepared by
SPECIFICATION FEATURES
A....Housing
White housing with structural steel arm
and wireway. Connected to integral j-box.
B....System Protection:
Thermal protection provided to guard	5.00”
against overheating and misuse of
insulation over and around fixture.
Vent holes in housing provide cooler
operation.
C....Electrical

Integral j-box and electronic or magnetic

low voltage transformer . 120V or 277V
input, 12V output. Junction box is U.L.	4.18”
listed for through branch wiring. Includes
two 1/2 trade size knockouts.
D....Lamp
12V MR16 50 watts max. (not included)
“POSI-GRIP” bi-pin lamp socket for firm,
mechanical lamp connection.			ACCURUS
Supplied with 3 (three) spring loaded
E....Mounting			HOUSING
1”, or 1-1/2” ceiling thickness. Includes
mounting clips. May accomodate 1/2”,
adjustable leveling screw.
Ceiling Cut-Out: 4.18”	10.75” elc.	14.06” mag.	ACT955RM
			Remodel Housing
			for Square Trim
		Mag.	J-box
		Xfmr.	Integral Electronic
	3.28”
			or Magnetic
			Transformer
			FOR 12V MR16 50 watts max.

J-box with integral

electronic

transformer

ORDERING INFORMATION

ACT955RM

__

__

Housing ACT955RM = Accurus Remodel Housing for Square Trim w/Integral Transformer

Transformer

ELC = Electronic MAG = Magnetic

Voltage

120 = 120 volts primary

277 = 277 volts primary

Specifications and Dimensions subject to change without notice.

rev 122007

www.cooperlighting.com RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
