Cooper Lighting ADH080901 specifications 150 - 400 W, Cooper Lighting - Lumark, Catalog #, Type

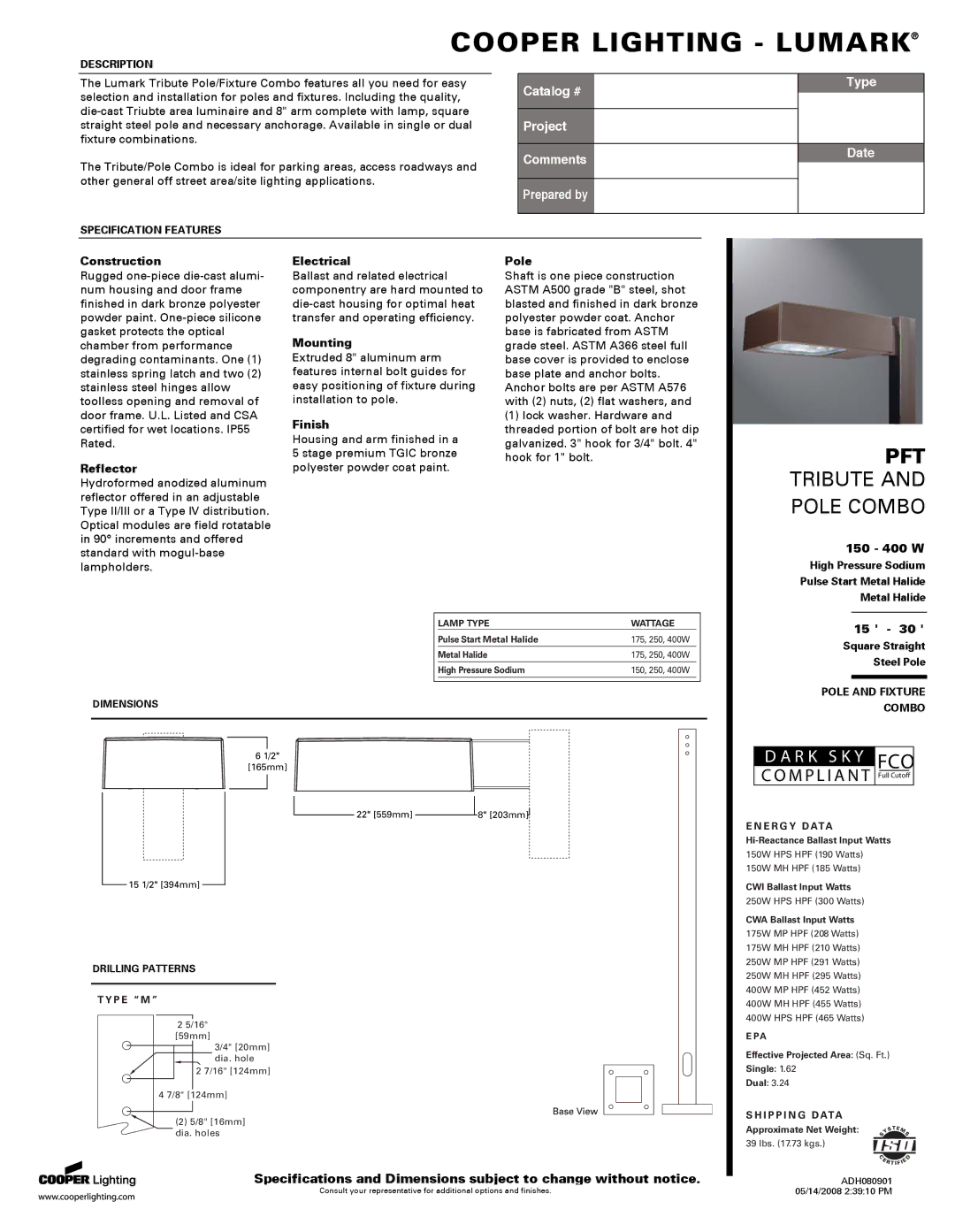

COOPER LIGHTING - LUMARK®

DESCRIPTION

The Lumark Tribute Pole/Fixture Combo features all you need for easy selection and installation for poles and fixtures. Including the quality, die-cast Triubte area luminaire and 8" arm complete with lamp, square straight steel pole and necessary anchorage. Available in single or dual fixture combinations.

The Tribute/Pole Combo is ideal for parking areas, access roadways and other general off street area/site lighting applications.

Catalog #

Project

Comments

Prepared by

TypeDate

SPECIFICATION FEATURES

Construction

Rugged one-piece die-cast alumi- num housing and door frame finished in dark bronze polyester powder paint. One-piece silicone gasket protects the optical chamber from performance degrading contaminants. One (1) stainless spring latch and two (2) stainless steel hinges allow toolless opening and removal of door frame. U.L. Listed and CSA certified for wet locations. IP55 Rated.

Reflector

Hydroformed anodized aluminum reflector offered in an adjustable Type II/III or a Type IV distribution. Optical modules are field rotatable in 90° increments and offered standard with mogul-base lampholders.

Electrical

Ballast and related electrical componentry are hard mounted to die-cast housing for optimal heat transfer and operating efficiency.

Mounting

Extruded 8" aluminum arm features internal bolt guides for easy positioning of fixture during installation to pole.

Finish

Housing and arm finished in a 5 stage premium TGIC bronze polyester powder coat paint.

Pole

Shaft is one piece construction ASTM A500 grade "B" steel, shot blasted and finished in dark bronze polyester powder coat. Anchor base is fabricated from ASTM grade steel. ASTM A366 steel full base cover is provided to enclose base plate and anchor bolts. Anchor bolts are per ASTM A576 with (2) nuts, (2) flat washers, and

(1)lock washer. Hardware and threaded portion of bolt are hot dip galvanized. 3" hook for 3/4" bolt. 4" hook for 1" bolt.

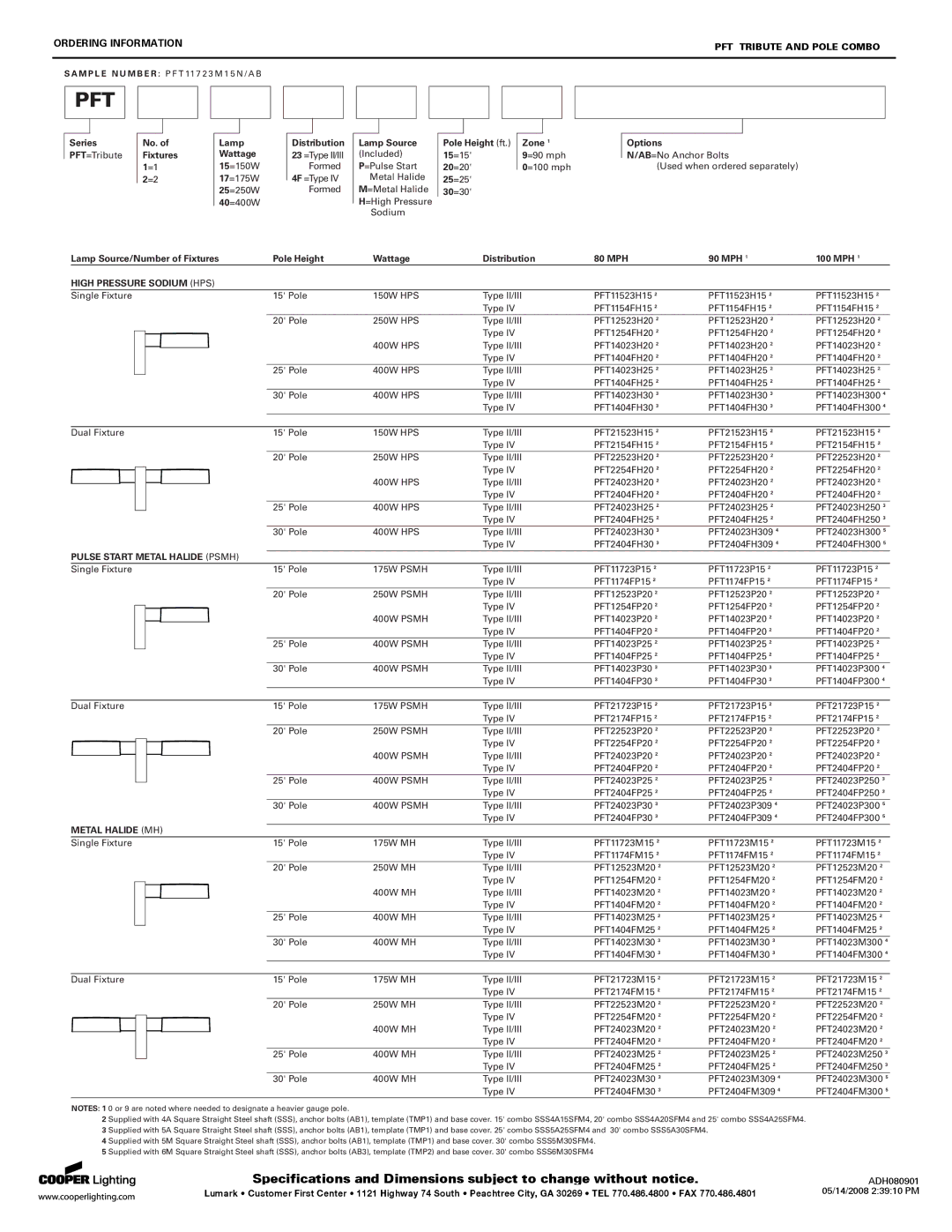

PFT

TRIBUTE AND POLE COMBO

150 - 400 W

High Pressure Sodium

Pulse Start Metal Halide

Metal Halide

LAMP TYPE		WATTAGE
	Pulse Start Metal Halide	175, 250, 400W
	Metal Halide	175, 250, 400W
	High Pressure Sodium	150, 250, 400W

DIMENSIONS

15 ' - 30 '

Square Straight Steel Pole

POLE AND FIXTURE COMBO

15 1/2" [394mm]

61/2"

[165mm]

22" [559mm]

8" [203mm]

D A R K S K Y FCO C O M P L I A N T Full Cuto￿

E N E R G Y DATA

Hi-Reactance Ballast Input Watts

150W HPS HPF (190 Watts)

150W MH HPF (185 Watts)

CWI Ballast Input Watts

250W HPS HPF (300 Watts)

CWA Ballast Input Watts

175W MP HPF (208 Watts)

175W MH HPF (210 Watts)

DRILLING PATTERNS

TY P E “ M ”

25/16"

[59mm]

3/4" [20mm] dia. hole

2 7/16" [124mm]

4 7/8" [124mm]

(2) 5/8" [16mm] dia. holes

Specifications and Dimensions subject to change without notice.

Consult your representative for additional options and finishes.

250W MP HPF (291 Watts)

250W MH HPF (295 Watts)

400W MP HPF (452 Watts)

400W MH HPF (455 Watts)

400W HPS HPF (465 Watts)

E PA

Effective Projected Area: (Sq. Ft.)

Single: 1.62

Dual: 3.24

S H I P P I N G DATA

Approximate Net Weight:		Y		MS
	S		STE
39 lbs. (17.73 kgs.)
	E			ED
	C
			R TIFI

ADH080901 05/14/2008 2:39:10 PM
