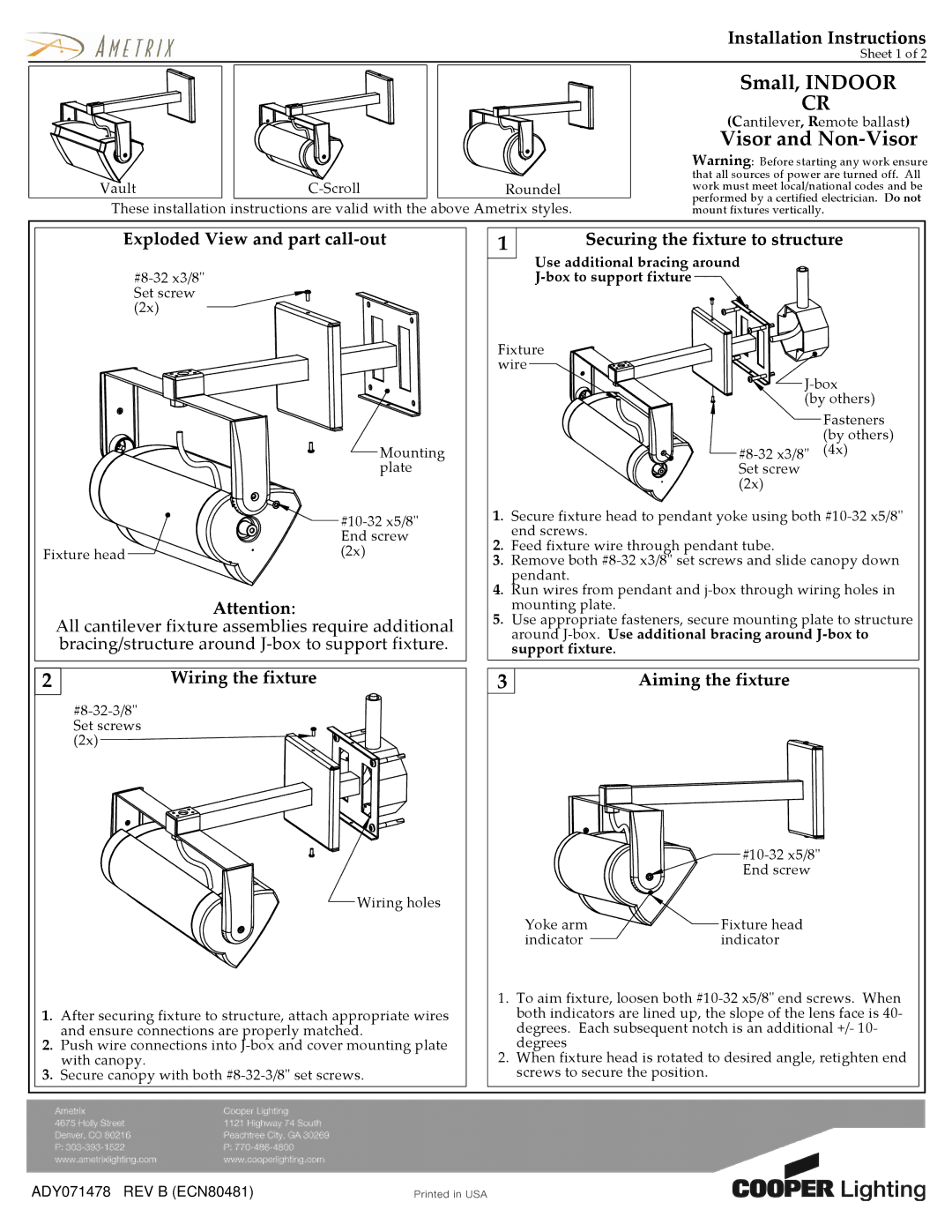

Cooper Lighting ADY071478 installation instructions Small, Indoor, Visor and Non-Visor

Installation Instructions

Sheet 1 of 2

Vault

C-Scroll

Roundel

Small, INDOOR

CR

(Cantilever, Remote ballast)

Visor and Non-Visor

Warning: Before starting any work ensure that all sources of power are turned off. All work must meet local/national codes and be performed by a certified electrician. Do not

These installation instructions are valid with the above Ametrix styles.

mount fixtures vertically.

Exploded View and part call-out

1Securing the fixture to structure

#8-32 x3/8" Set screw (2x)

Use additional bracing around

J-box to support fixture

Fixture wire

J-box

(by others)

Mounting plate

#8-32 x3/8" Set screw (2x)

Fasteners (by others) (4x)

Fixture head

#10-32 x5/8" End screw (2x)

1.	Secure fixture head to pendant yoke using both #10-32 x5/8"
2.	end screws.
	Feed fixture wire through pendant tube.
3.	Remove both #8-32 x3/8" set screws and slide canopy down
4.	pendant.
	Run wires from pendant and j-box through wiring holes in

Attention:

All cantilever fixture assemblies require additional bracing/structure around J-box to support fixture.

2Wiring the fixture

#8-32-3/8" Set screws (2x)

Wiring holes

1.After securing fixture to structure, attach appropriate wires and ensure connections are properly matched.

2.Push wire connections into J-box and cover mounting plate with canopy.

3.Secure canopy with both #8-32-3/8" set screws.

mounting plate.

5. Use appropriate fasteners, secure mounting plate to structure

around J-box. Use additional bracing around J-box to

support fixture.

3Aiming the fixture

	#10-32 x5/8"
	End screw
Yoke arm	Fixture head
indicator	indicator

1.To aim fixture, loosen both #10-32 x5/8" end screws. When both indicators are lined up, the slope of the lens face is 40- degrees. Each subsequent notch is an additional +/- 10- degrees

2.When fixture head is rotated to desired angle, retighten end screws to secure the position.

ADY071478 REV B (ECN80481)
