Cooper Lighting ANG17MWW33431 manual D E C O R At I V E G L A S S L U M I N A I R E, 70-175W

D E C O R AT I V E
ANG MANCHESTER	70-175W
	MH/HPS
D E C O R AT I V E G L A S S L U M I N A I R E

15 5/8" [397mm]

311/2"

[801mm]

STREETWORKS™

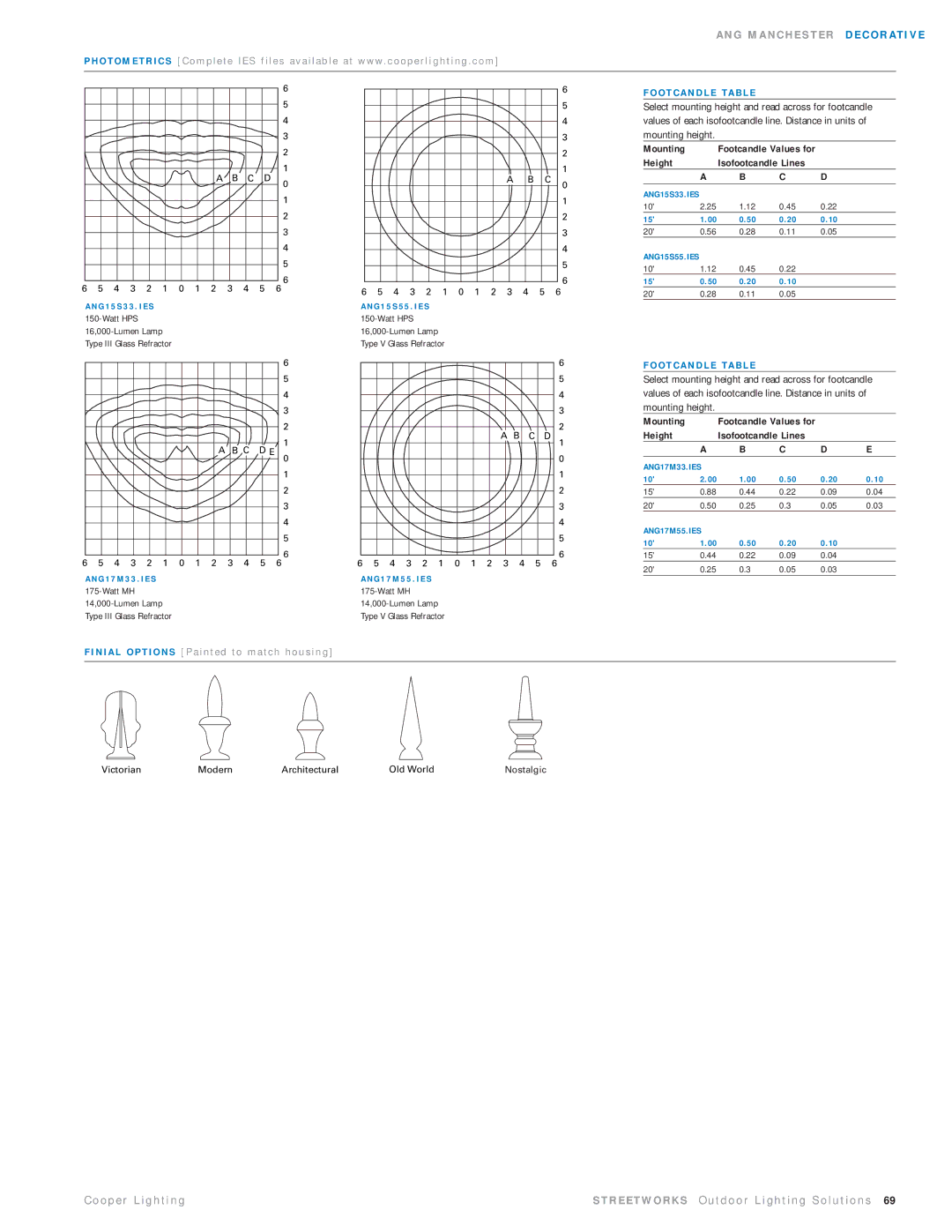

F I N I A L

Cast finial optional. Finial painted to match cast housing.

G L O B E

Borosilicate two-piece prismatic glass refractor, available in either a Type III or Type V distribution.

C A G E O R B A N D

Optional decorative cage or band is available. Cage uprights are manufactured of cast aluminum. Bands are extruded aluminum. Finish colors match housing color choice. Optional gold anodized band available. Other finish colors available. Consult your Streetworks Representative.

H O U S I N G

Heavy-duty cast aluminum housing. Optional NEMA PCR is accessible through door assembly. Provided with 1” ANSI wattage source label.

B A L L A S T

Ballast provided with a power tray assembly for ease of maintenance. Mogul-base is standard for 70W through 150W HPS and 175W MH. 70W through 150W MH use medium-base. Standard plug-in starter when applicable. U.L. Listing is available.

M O U N T I N G

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : A N G 1 7 M W W 3 3 4 3 1

PRODUCT	LAMP		LAMP TYPE 1	BALLAST TYPE 1	VOLTAGE 1		REFRACTOR	CAGE/BAND TYPE	TOP TYPE	FINIAL TYPE 4	OPTIONS +
FAMILY	WATTAGE 1		M=Metal	R=Reac./NPF 3	2=120V		TYPE	1=Classical	3=Victorian	1=Victorian	ACCESSORIES
ANG=Manchester	70=70W		Halide 2	H=Reac./HPF	0=208V		33=Type III	A=Classical/Sun Gold		2=Modern	(See Below)
	10=100W		S=High	N=Hi. Reac./NPF	4=240V		55=Type V	B=Classical/Antique		3=Architectural
	15=150W		Pressure	P=Hi. Reac./HPF	7=277V			Gold		4=Nostalgic
	17=175W		Sodium	W=CWA	8=480V			C=Classical/Colonial		5=Old World
					9=347V			Bronze		X=None
					W=Multi-Tap Wired 120V			4=Gold Anodized Band 4
					N=Multi-Tap Wired 277V			5=Painted Band
								X=None
O P T I O N S + A C C E S S O R I E S [ M u s t b e o r d e r e d i n a l p h a n u m e r i c o r d e r ]
OPTIONS (add as suffix)				ACCESSORIES (order separately)
1=Single Fuse (120 or 277V)				AA3000=House Side Shield—Mogul-base Socket
2=Double Fuse (208, 240, or 480V)				AA3001=House Side Shield—Medium-base Socket
4=Internal NEMA photocontrol Receptacle
BZ=Bronze
AP=Grey
DP=Dark Platinum
H=Hartford Green
U=UL/CSA Listed
O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b l a c k , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]
				DP
BZ		AP				H
Bronze		Grey		Dark Platinum		Hartford Green

Post top mount fits 3" O.D. tenons and secures in place with four (4) allen-head set screws.

F I N I S H

Standard polyester powder coat finish in black. For more color options see optional color or consult your Streetworks represenatitive for more information.

E P A :

Effective Projective Area: 1.6

S H I P P I N G D A T A
Approximate Net Weight:
60 lbs. (27 kgs.)	NOTE: 1 Refer to technical section for lamp/ballast/voltage compatibility. 2 Medium-base socket standard for 150W and below MH. 3 Available in 120V only. 4 When gold anodized band is chosen, finial finished in gold.
