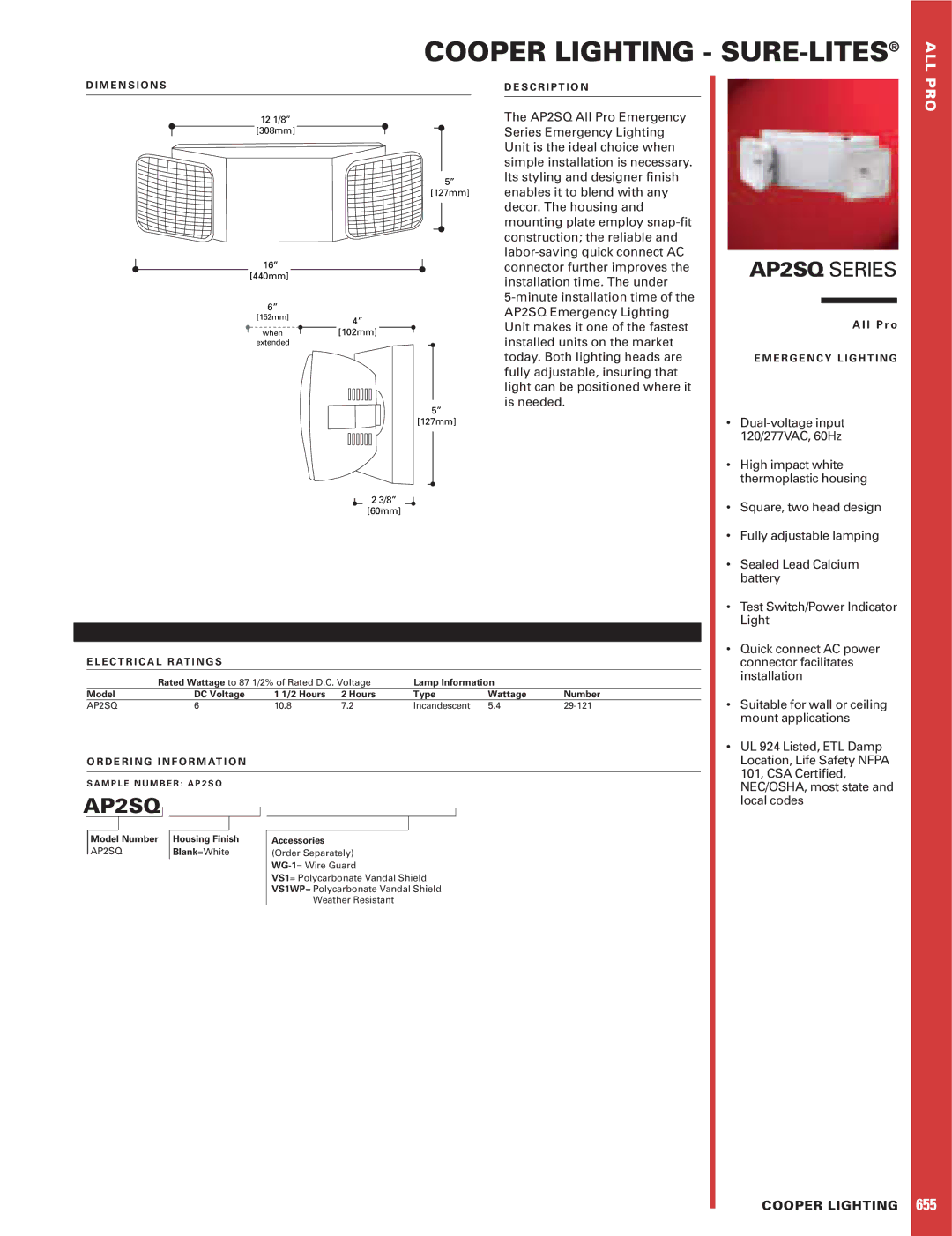

Cooper Lighting dimensions Cooper Lighting - Sure-Lites, AP2SQ SERIES

COOPER LIGHTING - SURE-LITES®

ALL

D I M E N S I O N S

12 1/8”

[308mm]

5”

[127mm]

16”

[440mm]

6”
[152mm]	4”
when	[102mm]
extended

5”

[127mm]

2 3/8”

[60mm]

D E S C R I P T I O N

The AP2SQ All Pro Emergency Series Emergency Lighting Unit is the ideal choice when simple installation is necessary. Its styling and designer finish enables it to blend with any decor. The housing and mounting plate employ snap-fit construction; the reliable and labor-saving quick connect AC connector further improves the installation time. The under

5-minute installation time of the AP2SQ Emergency Lighting Unit makes it one of the fastest installed units on the market today. Both lighting heads are fully adjustable, insuring that light can be positioned where it is needed.

AP2SQ SERIES

A l l P r o

E M E R G E N C Y L I G H T I N G

• Dual-voltage input
	120/277VAC, 60Hz
•	High impact white
	thermoplastic housing
• Square, two head design
•	Fully adjustable lamping
•	Sealed Lead Calcium
	battery
•	Test Switch/Power Indicator
	Light
• Quick connect AC power

PRO

E L E C T R I C A L R AT I N G S

	Rated Wattage to 87 1/2% of Rated D.C. Voltage			Lamp Information
Model	DC Voltage	1 1/2 Hours	2 Hours	Type	Wattage	Number
AP2SQ	6	10.8	7.2	Incandescent	5.4	29-121

O R D E R I N G I N F O R M AT I O N

connector facilitates

installation

• Suitable for wall or ceiling

mount applications

• UL 924 Listed, ETL Damp

Location, Life Safety NFPA

101, CSA Certified,

S A M P L E N U M B E R : A P 2 S Q

AP2SQ

Model Number	Housing Finish
AP2SQ	Blank=White

Accessories

(Order Separately)

WG-1= Wire Guard

VS1= Polycarbonate Vandal Shield

VS1WP= Polycarbonate Vandal Shield

Weather Resistant

NEC/OSHA, most state and

local codes

COOPER LIGHTING

655
