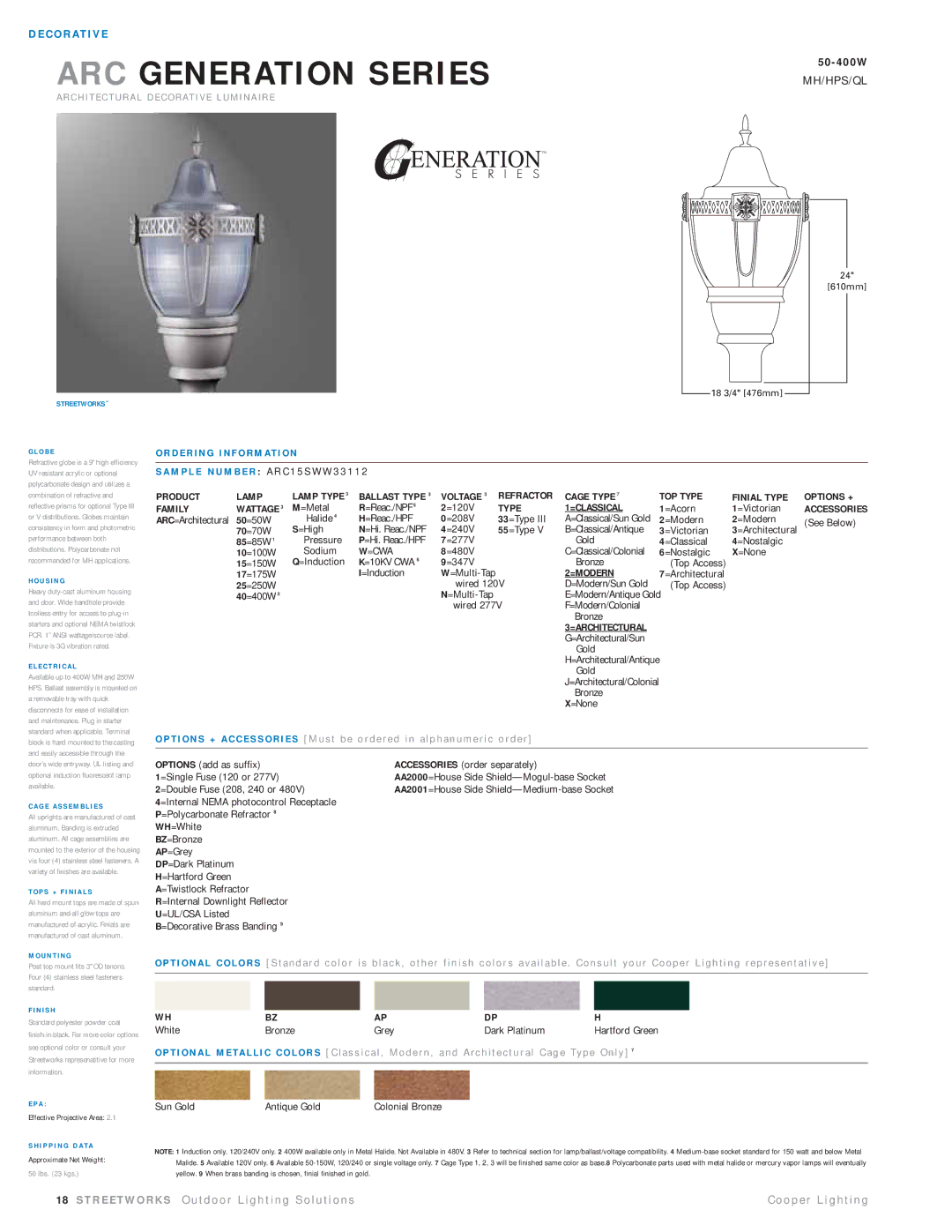

Cooper Lighting ARC15SWW33112 manual O R D E R I N G I N F O R M At I O N, Arc Generation Series

D E C O R AT I V E
ARC GENERATION SERIES			50-400W
		MH/HPS/QL
A R C H I T E C T U R A L D E C O R AT I V E L U M I N A I R E
	TM

24"

[610mm]

18 3/4" [476mm]

STREETWORKS™

G L O B E

Refractive globe is a 9" high efficiency UV resistant acrylic or optional polycarbonate design and utilizes a combination of refractive and reflective prisms for optional Type III or V distributions. Globes maintain consistency in form and photometric performance between both distributions. Polycarbonate not recommended for MH applications.

H O U S I N G

Heavy duty-cast aluminum housing and door. Wide handhole provide toolless entry for access to plug-in starters and optional NEMA twistlock PCR. 1" ANSI wattage/source label. Fixture is 3G vibration rated.

E L E C T R I C A L

Available up to 400W MH and 250W HPS. Ballast assembly is mounted on a removable tray with quick disconnects for ease of installation and maintenance. Plug in starter standard when applicable. Terminal block is hard mounted to the casting and easily accessible through the door’s wide entryway. UL listing and optional induction fluorescent lamp available.

C A G E A S S E M B L I E S

All uprights are manufactured of cast aluminum. Banding is extruded aluminum. All cage assemblies are mounted to the exterior of the housing via four (4) stainless steel fasteners. A variety of finishes are available.

T O P S + F I N I A L S

All hard mount tops are made of spun aluminum and all glow tops are manufactured of acrylic. Finials are manufactured of cast aluminum.

M O U N T I N G

Post top mount fits 3" OD tenons. Four (4) stainless steel fasteners standard.

F I N I S H

Standard polyester powder coat

finish in black. For more color options

see optional color or consult your

Streetworks represenatitive for more

information.

E PA :

Effective Projective Area: 2.1

S H I P P I N G D ATA

Approximate Net Weight:

50 lbs. (23 kgs.)

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : A R C 1 5 S W W 3 3 1 1 2

PRODUCT	LAMP	LAMP TYPE 3	BALLAST TYPE 3	VOLTAGE 3	REFRACTOR	CAGE TYPE 7	TOP TYPE	FINIAL TYPE	OPTIONS +
FAMILY	WATTAGE 3	M=Metal	R=Reac./NPF 5	2=120V	TYPE	1=CLASSICAL	1=Acorn	1=Victorian	ACCESSORIES
ARC=Architectural	50=50W	Halide 4	H=Reac./HPF	0=208V	33=Type III	A=Classical/Sun Gold	2=Modern	2=Modern	(See Below)
	70=70W	S=High	N=Hi. Reac./NPF	4=240V	55=Type V	B=Classical/Antique	3=Victorian	3=Architectural
	85=85W 1	Pressure	P=Hi. Reac./HPF	7=277V		Gold	4=Classical	4=Nostalgic
	10=100W	Sodium	W=CWA	8=480V		C=Classical/Colonial	6=Nostalgic	X=None
	15=150W	Q=Induction	K=10KV CWA 6	9=347V		Bronze	(Top Access)
	17=175W		I=Induction	W=Multi-Tap		2=MODERN	7=Architectural
	25=250W			wired 120V		D=Modern/Sun Gold	(Top Access)
	40=400W 2			N=Multi-Tap		E=Modern/Antique Gold
				wired 277V		F=Modern/Colonial
						Bronze
						3=ARCHITECTURAL
						G=Architectural/Sun
						Gold
						H=Architectural/Antique
						Gold
						J=Architectural/Colonial
						Bronze
						X=None
O P T I O N S + A C C E S S O R I E S [ M u s t b e o r d e r e d i n a l p h a n u m e r i c o r d e r ]
OPTIONS (add as suffix)			ACCESSORIES (order separately)
1=Single Fuse (120 or 277V)			AA2000=House Side Shield—Mogul-base Socket
2=Double Fuse (208, 240 or 480V)			AA2001=House Side Shield—Medium-base Socket

4=Internal NEMA photocontrol Receptacle P=Polycarbonate Refractor 8 WH=White

BZ=Bronze

AP=Grey

DP=Dark Platinum

H=Hartford Green

A=Twistlock Refractor

R=Internal Downlight Reflector U=UL/CSA Listed B=Decorative Brass Banding 9

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b l a c k , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH	BZ	AP	DP	H
White	Bronze	Grey	Dark Platinum	Hartford Green

O P T I O N A L M E TA L L I C C O L O R S [ C l a s s i c a l , M o d e r n , a n d A rc h i t e c t u r a l C a g e Ty p e O n l y ] 7

Sun Gold Antique Gold Colonial Bronze

NOTE: 1 Induction only. 120/240V only. 2 400W available only in Metal Halide. Not Available in 480V. 3 Refer to technical section for lamp/ballast/voltage compatibility. 4 Medium-base socket standard for 150 watt and below Metal Malide. 5 Available 120V only. 6 Available 50-150W, 120/240 or single voltage only. 7 Cage Type 1, 2, 3 will be finished same color as base.8 Polycarbonate parts used with metal halide or mercury vapor lamps will eventually yellow. 9 When brass banding is chosen, finial finished in gold.

18 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s C o o p e r L i g h t i n g
