D E C O R AT I V E











ARC AVENUE







50-400W







MH/HPS/QL

D E C O R AT I V E L U M I N A I R E



































TM















37 3/8"











[949mm]

25 3/8" [645mm]

STREETWORKS

T O P S + F I N I A L S

All hard mount tops are made of spun aluminum. Top provided with toolless access for ease of maintenance.

Finials are manufactured of cast aluminum.

G L O B E

Globe is available in 9" high efficiency UV resistant acrylic or optional polycarbonate refractive design. Internal and external prisms work in conjunction to provide excellent vertical and horizontal illumination.

C A G E A S S E M B L I E S

Two (2) uprights are manufactured of cast aluminum. Banding is spun aluminum. All cage assemblies are mounted to the exterior of the housing via four (4) stainless steel fasteners. A variety of finishes are available.

E L E C T R I C A L

Available up to 400W MH and 250W HPS. Ballast assembly is mounted on a removable tray with quick discon- nects for ease of installation and maintenance. Plug in starter standard when applicable. Terminal block is hard mounted to the casting and easily accessible through the door’s wide entryway. UL listing and optional induction fluorescent lamp available.

H O U S I N G

Heavy duty-cast aluminum housing and door. Wide handhole provide toolless entry for access to plug-in starters and optional NEMA twistlock PCR. 1" ANSI wattage/source label. Fixture is 3G vibration rated.

M O U N T I N G

Post top mount fits 3" OD tenons. Four (4) stainless steel fasteners standard.

F I N I S H

Standard polyester powder coat

finish in black. For more color options

see optional color or consult your

Streetworks represenatitive for more

information.

E PA :

Effective Projective Area: 2.1

S H I P P I N G D ATA

Approximate Net Weight:

50 lbs. (23 kgs.)

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : A R C 2 5 M W W 5 5 5 2

PRODUCT

LAMP

LAMP TYPE 3

BALLAST TYPE 3

VOLTAGE 3

REFRACTOR

CAGE TYPE 7, 8

TOP TYPE 7

FINIAL TYPE

OPTIONS +

FAMILY

WATTAGE 3

M=Metal

R=Reac./NPF 5

2=120V

TYPE

6=Avenue

5=Avenue

2=Modern

ACCESSORIES

ARC=Architectural

50=50W

Halide 4

H=Reac./HPF

0=208V

33=Type III

X=None

(Top Access)

3=Architectural

(See Below)



70=70W

S=High

N=Hi. Reac./NPF

4=240V

55=Type V











85=85W 1

Pressure

P=Hi. Reac./HPF

7=277V













10=100W

Sodium

W=CWA

8=480V













15=150W

Q=Induction

K=10KV CWA 6

9=347V













17=175W



I=Induction

W=Multi-Tap













25=250W





wired 120V











40=400W 2





N=Multi-Tap



















wired 277V











O P T I O N S + A C C E S S O R I E S [ M u s t b e o r d e r e d i n a l p h a n u m e r i c o r d e r ]























OPTIONS (add as suffix)



ACCESSORIES (order separately)









1=Single Fuse (120 or 277V)



AA2000=House Side Shield—Mogul-base Socket







2=Double Fuse (208, 240 or 480V)

AA2001=House Side Shield—Medium-base Socket







4=Internal NEMA photocontrol Receptacle P=Polycarbonate Refractor 9 WH=White

BZ=Bronze

AP=Grey

DP=Dark Platinum

H=Hartford Green

R=Internal Downlight Reflector U=UL/CSA Listed

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b l a c k , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH

BZ

AP

DP

H

White

Bronze

Grey

Dark Platinum

Hartford Green

NOTE: 1 85W QL Induction only. 120V or 240V only. 2 400W available only in Metal Halide. Not available in 480V. 3 Refer to technical section for lamp/ballast/voltage compatibility. 4 Medium-base lamp standard for 150W and below Metal Halide. 5 Available 120V only. 6 Available 50-150W, 120/240 or single voltage only. 7 Avenue Cage must be used with Avenue Top. Avenue Top is available without cage. 8 Cage Type 6 will be finished same color as base. 9 Polycarbonate parts used with Metal Halide lamps will eventually yellow.

42 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s

C o o p e r L i g h t i n g

Page 1

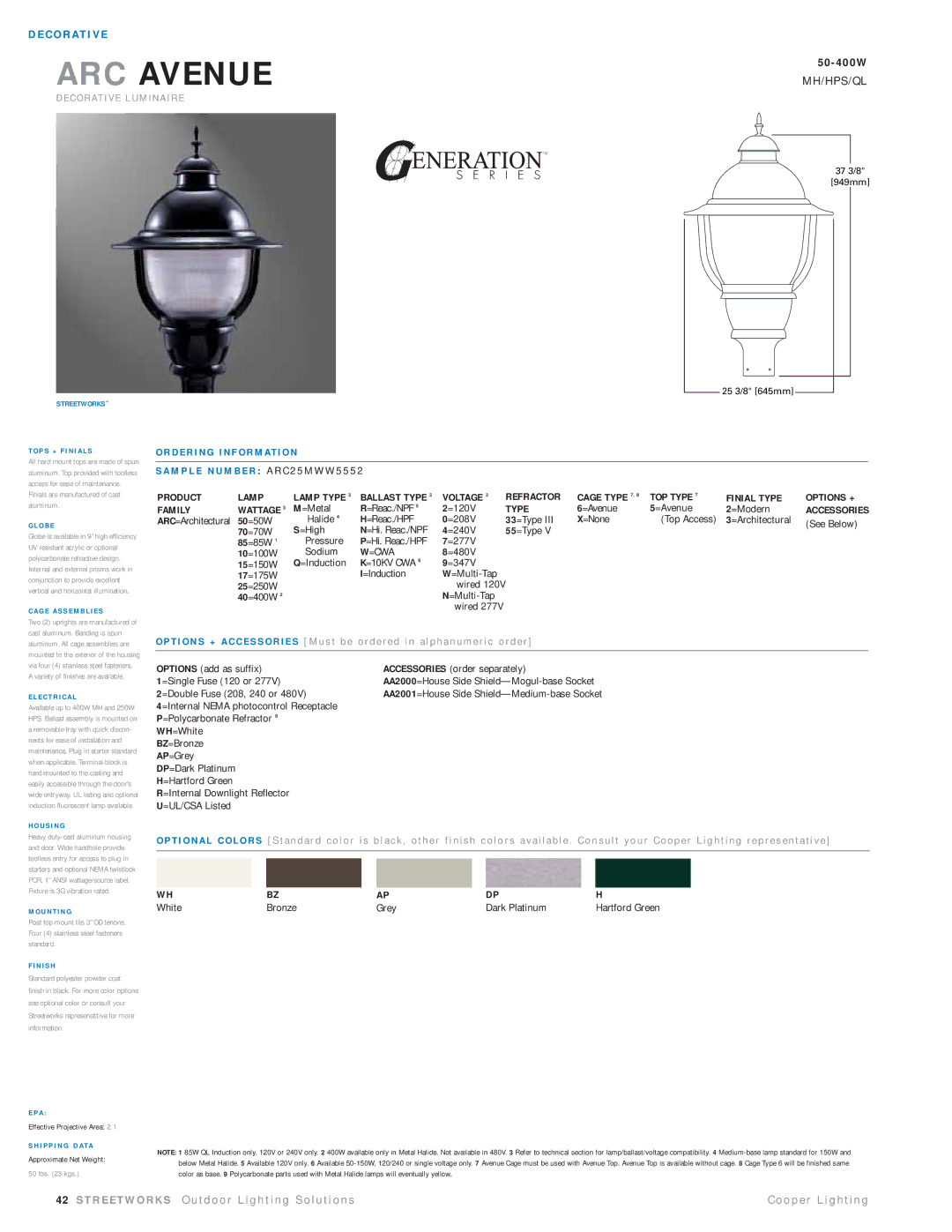

Image 1
