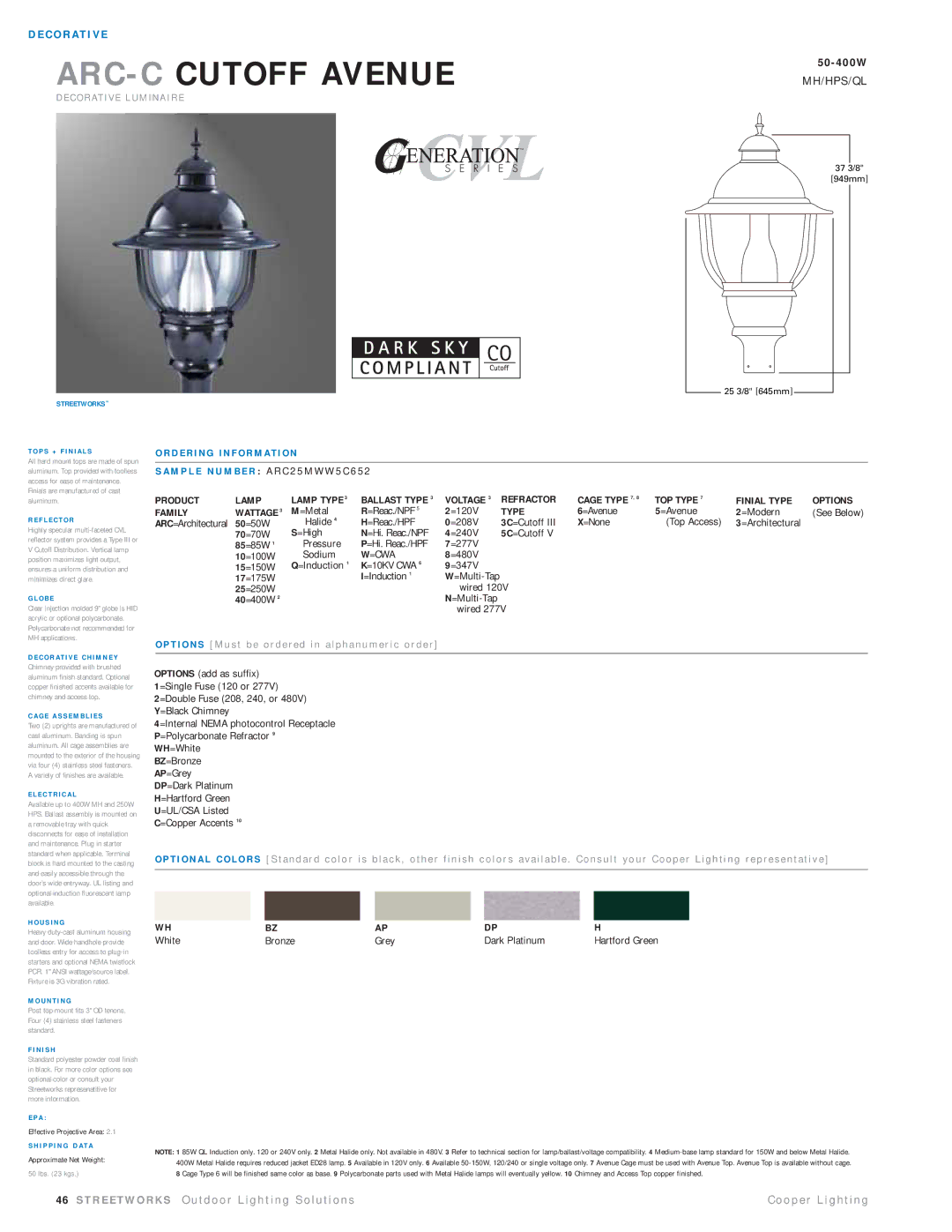

D E C O R AT I V E







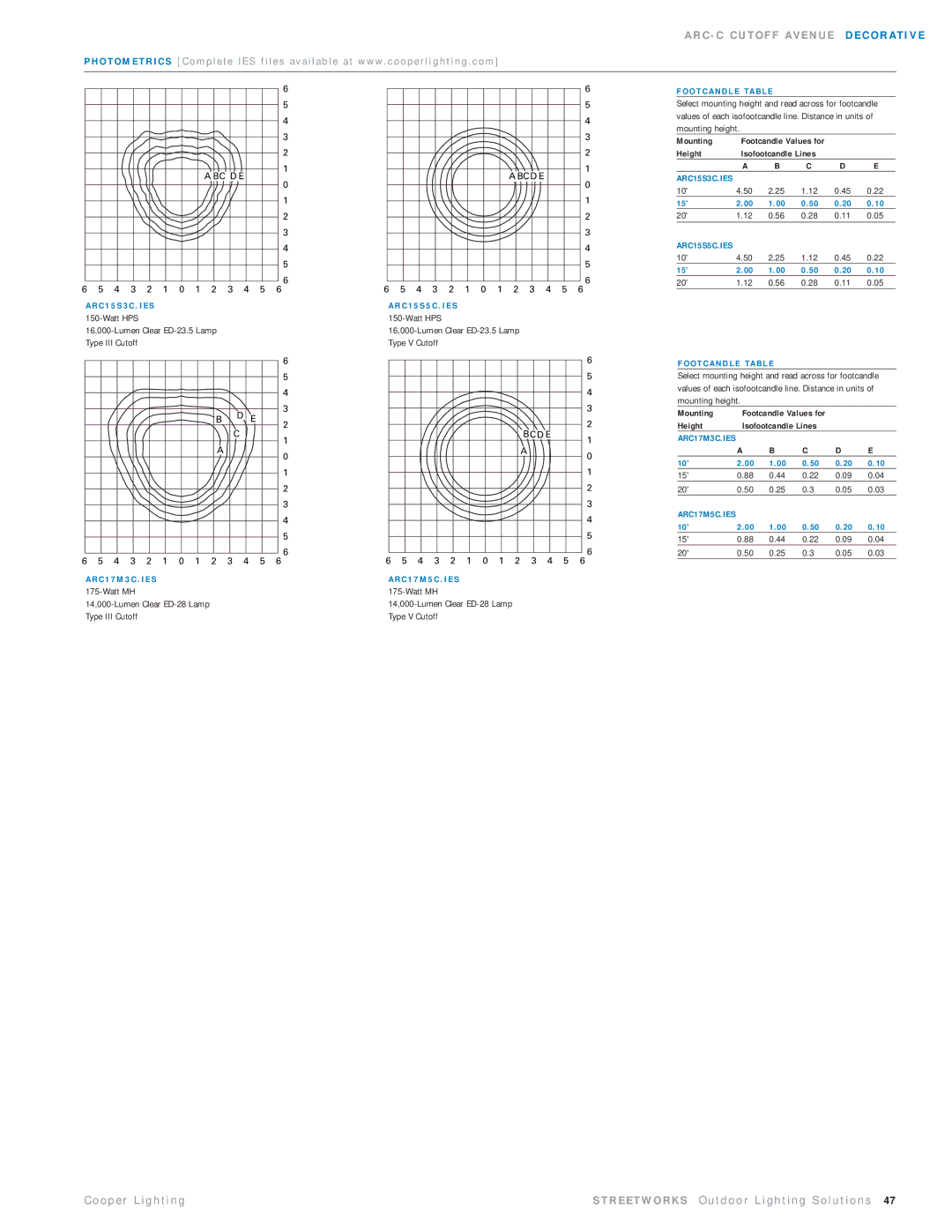

ARC-CCUTOFF AVENUE



50-400W



MH/HPS/QL

D E C O R AT I V E L U M I N A I R E









TM



















CVL







37 3/8"



[949mm]

25 3/8" [645mm]

STREETWORKS

T O P S + F I N I A L S

All hard mount tops are made of spun aluminum. Top provided with toolless access for ease of maintenance.

Finials are manufactured of cast aluminum.

R E F L E C T O R

Highly specular multi-faceted CVL reflector system provides a Type III or V Cutoff Distribution. Vertical lamp position maximizes light output, ensures a uniform distribution and minimizes direct glare.

G L O B E

Clear injection molded 9" globe is HID acrylic or optional polycarbonate. Polycarbonate not recommended for MH applications.

D E C O R AT I V E C H I M N E Y

Chimney provided with brushed aluminum finish standard. Optional copper finished accents available for chimney and access top.

C A G E A S S E M B L I E S

Two (2) uprights are manufactured of cast aluminum. Banding is spun aluminum. All cage assemblies are mounted to the exterior of the housing via four (4) stainless steel fasteners. A variety of finishes are available.

E L E C T R I C A L

Available up to 400W MH and 250W HPS. Ballast assembly is mounted on a removable tray with quick disconnects for ease of installation and maintenance. Plug in starter standard when applicable. Terminal block is hard mounted to the casting and easily accessible through the door’s wide entryway. UL listing and optional induction fluorescent lamp available.

H O U S I N G

Heavy duty-cast aluminum housing and door. Wide handhole provide toolless entry for access to plug-in starters and optional NEMA twistlock PCR. 1" ANSI wattage/source label. Fixture is 3G vibration rated.

M O U N T I N G

Post top mount fits 3" OD tenons. Four (4) stainless steel fasteners standard.

F I N I S H

Standard polyester powder coat finish in black. For more color options see optional color or consult your Streetworks represenatitive for more information.

E PA :

Effective Projective Area: 2.1

S H I P P I N G D ATA

Approximate Net Weight:

50 lbs. (23 kgs.)

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : A R C 2 5 M W W 5 C 6 5 2

PRODUCT

LAMP

LAMP TYPE 3

BALLAST TYPE 3

VOLTAGE 3

REFRACTOR

CAGE TYPE 7, 8

TOP TYPE 7

FINIAL TYPE

OPTIONS

FAMILY

WATTAGE 3

M=Metal

R=Reac./NPF 5

2=120V

TYPE

6=Avenue

5=Avenue

2=Modern

(See Below)

ARC=Architectural

50=50W

Halide 4

H=Reac./HPF

0=208V

3C=Cutoff III

X=None

(Top Access)

3=Architectural





70=70W

S=High

N=Hi. Reac./NPF

4=240V

5C=Cutoff V











85=85W 1

Pressure

P=Hi. Reac./HPF

7=277V













10=100W

Sodium

W=CWA

8=480V













15=150W

Q=Induction 1

K=10KV CWA 6

9=347V













17=175W



I=Induction 1

W=Multi-Tap













25=250W





wired 120V











40=400W 2





N=Multi-Tap



















wired 277V









O P T I O N S [ M u s t b e o r d e r e d i n a l p h a n u m e r i c o r d e r ]

OPTIONS (add as suffix)

1=Single Fuse (120 or 277V)

2=Double Fuse (208, 240, or 480V) Y=Black Chimney

4=Internal NEMA photocontrol Receptacle P=Polycarbonate Refractor 9 WH=White

BZ=Bronze

AP=Grey

DP=Dark Platinum

H=Hartford Green

U=UL/CSA Listed

C=Copper Accents 10

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b l a c k , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH

BZ

AP

DP

H

White

Bronze

Grey

Dark Platinum

Hartford Green

NOTE: 1 85W QL Induction only. 120 or 240V only. 2 Metal Halide only. Not available in 480V. 3 Refer to technical section for lamp/ballast/voltage compatibility. 4 Medium-base lamp standard for 150W and below Metal Halide. 400W Metal Halide requires reduced jacket ED28 lamp. 5 Available in 120V only. 6 Available 50-150W, 120/240 or single voltage only. 7 Avenue Cage must be used with Avenue Top. Avenue Top is available without cage. 8 Cage Type 6 will be finished same color as base. 9 Polycarbonate parts used with Metal Halide lamps will eventually yellow. 10 Chimney and Access Top copper finished.

46 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s

C o o p e r L i g h t i n g

Page 1
