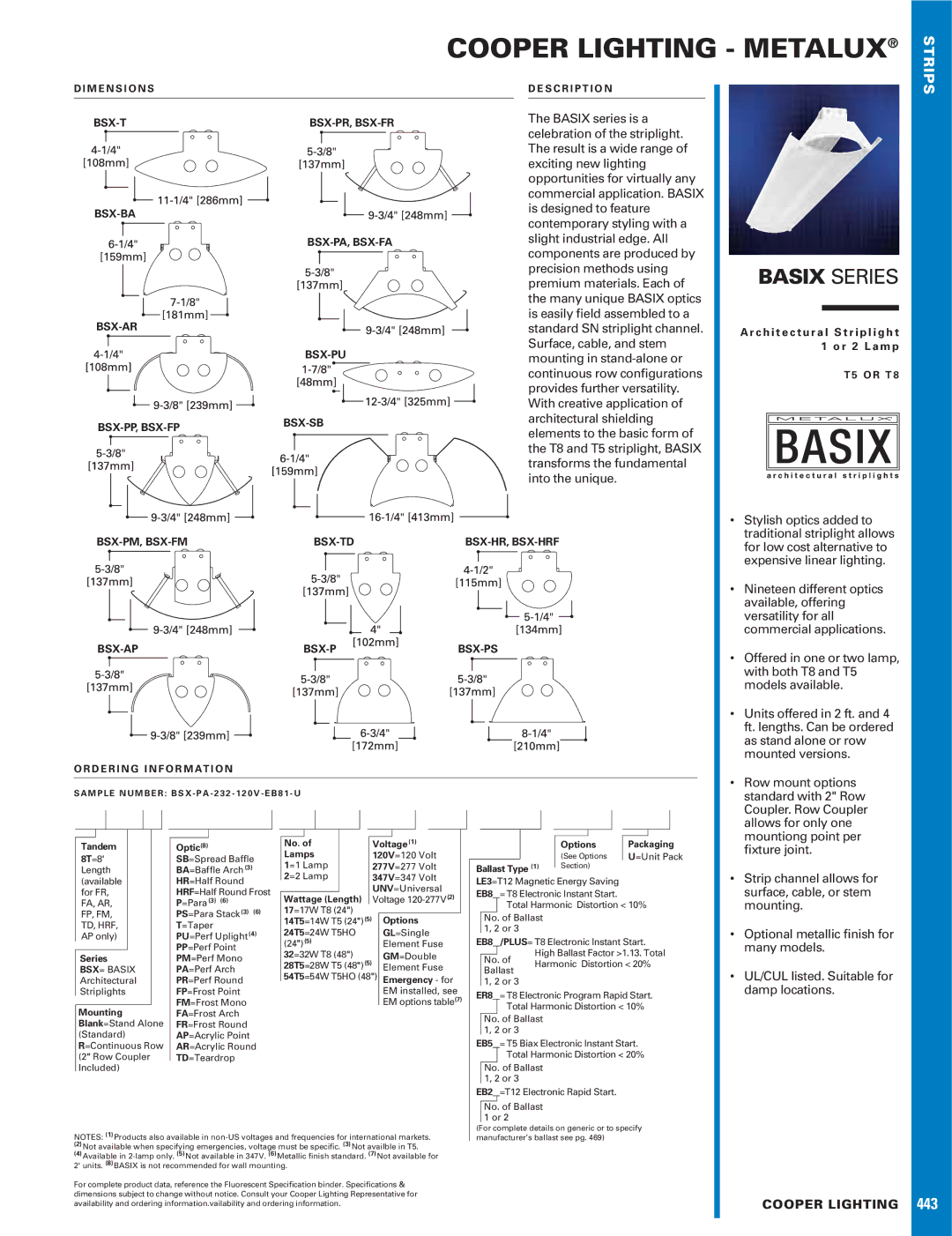

COOPER LIGHTING - METALUX®

STRIPS

D I M E N S I O N S

BSX-T BSX-PR, BSX-FR

BSX-BA

BSX-PA, BSX-FA

BSX-AR

BSX-PU

BSX-PP, BSX-FP BSX-SB

D E S C R I P T I O N

The BASIX series is a celebration of the striplight. The result is a wide range of exciting new lighting opportunities for virtually any commercial application. BASIX is designed to feature contemporary styling with a slight industrial edge. All components are produced by precision methods using premium materials. Each of the many unique BASIX optics is easily field assembled to a standard SN striplight channel. Surface, cable, and stem mounting in stand-alone or continuous row configurations provides further versatility. With creative application of architectural shielding elements to the basic form of the T8 and T5 striplight, BASIX transforms the fundamental into the unique.

BASIX SERIES

A r c h i t e c t u r a l S t r i p l i g h t 1 o r 2 L a m p

T 5 O R T 8

BSX-PM, BSX-FM BSX-TD BSX-HR, BSX-HRF

BSX-AP BSX-P BSX-PS

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : B S X - P A - 2 3 2 - 1 2 0 V - E B 8 1 - U

• Stylish optics added to
	traditional striplight allows
	for low cost alternative to
	expensive linear lighting.
•	Nineteen different optics
	available, offering
	versatility for all
	commercial applications.
• Offered in one or two lamp,
	with both T8 and T5
	models available.
• Units offered in 2 ft. and 4
	ft. lengths. Can be ordered
	as stand alone or row
	mounted versions.
•	Row mount options
	standard with 2" Row
	Coupler. Row Coupler
	allows for only one
	mountiong point per

Tandem

8T=8' Length (available for FR, FA, AR, FP, FM, TD, HRF, AP only)

Series

BSX= BASIX

Architectural

Striplights

Mounting

Blank=Stand Alone (Standard) R=Continuous Row (2" Row Coupler Included)

Optic(8)

SB=Spread Baffle

BA=Baffle Arch (3)

HR=Half Round

HRF=Half Round Frost

P=Para (3) (6)

PS=Para Stack (3) (6)

T=Taper

PU=Perf Uplight (4)

PP=Perf Point

PM=Perf Mono

PA=Perf Arch

PR=Perf Round

FP=Frost Point

FM=Frost Mono

FA=Frost Arch

FR=Frost Round

AP=Acrylic Point

AR=Acrylic Round

TD=Teardrop

No. of	Voltage (1)
Lamps	120V=120 Volt
1=1 Lamp	277V=277 Volt
2=2 Lamp	347V=347 Volt
	UNV=Universal
Wattage (Length)	Voltage 120-277V(2)
17=17W T8 (24")	Options
14T5=14W T5 (24")(5)
24T5=24W T5HO	GL=Single
(24")(5)	Element Fuse
32=32W T8 (48")	GM=Double
28T5=28W T5 (48")(5)	Element Fuse
54T5=54W T5HO (48") Emergency - for
	EM installed, see
	EM options table(7)

	Options	Packaging
	(See Options	U=Unit Pack
Ballast Type (1)	Section)

LE3=T12 Magnetic Energy Saving EB8 = T8 Electronic Instant Start.

Total Harmonic Distortion < 10% No. of Ballast

1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start.

No. of	High Ballast Factor >1.13. Total
	Harmonic Distortion < 20%
Ballast
1, 2 or 3

ER8 = T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB5 = T5 Biax Electronic Instant Start. Total Harmonic Distortion < 20%

No. of Ballast 1, 2 or 3

EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

fixture joint.

• Strip channel allows for

surface, cable, or stem

mounting.

• Optional metallic finish for

many models.

• UL/CUL listed. Suitable for

damp locations.

NOTES: (1)Products also available in non-US voltages and frequencies for international markets.

(2)Not available when specifying emergencies, voltage must be specific. (3)Not availble in T5.

(4)Available in 2-lamp only. (5)Not available in 347V. (6)Metallic finish standard. (7)Not available for 2' units. (8)BASIX is not recommended for wall mounting.

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.vailability and ordering information.

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)
