BRACKETS

COOPER LIGHTING - METALUX®

WALL

BI/BIU SERIES

2 ' , 3 ' o r 4 '

1 o r 2 L a m p s

S T E E L WA L L B R A C K E T

• Equipped with energy

saving ballasts/complies

D E S C R I P T I O N

The BI Series meets the need for a very low brightness wall bracket. This speciﬁcation grade wall bracket with an injection molded refractor produces effective up, down or combination lighting. This energy efﬁcient luminaire offers up lighting, multi-level switching and convenience outlets as options. These design features ensure that the BI Series will provide ease of use and comfort. The BI Series features speciﬁcation efﬁciency in a low proﬁle wall bracket. The Series is an excellent choice for dressing rooms, lavatories, hospital and nursing homes, stairways and task lighting.

O R D E R I N G I N F O R M AT I O N

D I M E N S I O N S

NOMINAL LENGTH	A	B
2', 3' ,4'	7-1/2" (190mm)	3-1/2" (89mm)

with federal energy

efﬁciency standards

• Low proﬁle design

S A M P L E N U M B E R : B I - 2 3 2 - 1 2 0 V - E B 8 1 - U

• Die formed, steel housing
• Baked white enamel ﬁnish
•	Down or combination
	up/downlight
•	Injection molded
	diffuser/end plate

BI=Series

Light Distribution

Blank=Downlight

Only

U=Up and

Downlight

Number of

Lamps

1 or 2 lamps

(Not Included)

Wattage (Length) 20=20W T12 (24") 17=17W T8 (24")

30=30W T12 (36")

25=25W T8 (36")

40=40W T12 (48")

32=32W T8 (48")

Voltage (1)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal

Voltage 120-277 (2)

Options

GL=Single Element Fuse

GM=Double Element Fuse Emergency - for EM installed, see EM options table (3)

	Options	Packaging
	(See Options	U=Unit Pack
Ballast Type (1)	Section)

Blank=Standard Magnetic Ballast (20W only)

LE3=T12 Magnetic Energy Saving EB8 = T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start.

				High Ballast Factor >1.13. Total
	No. of
				Harmonic Distortion < 20%
	Ballast

• Refractor slides forward for
	easy installation and
	maintenance
•	Easy wiring access
•	Convenience outlet and
	switching available, see
	Options page
• UL/CUL Listed. Suitable for
	damp locations.

Starting Type

LTS=Low Trigger Start (20 Watt only) (120V only) HTS=High Trigger Start (20 Watt only)

1, 2 or 3

ER8 = T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

428

	NOTES: (1)Products also available in non-US voltages and frequencies for international markets. (2)Not available when specifying emergencies, voltage must be speciﬁc.
	(3)Non available for 2' version.
COOPER LIGHTING	For complete product data, reference the Fluorescent Speciﬁcation binder. Speciﬁcations & dimensions subject to change without notice. Consult your Cooper Lighting
COOPER LIGHTING	Representative for availability and ordering information.

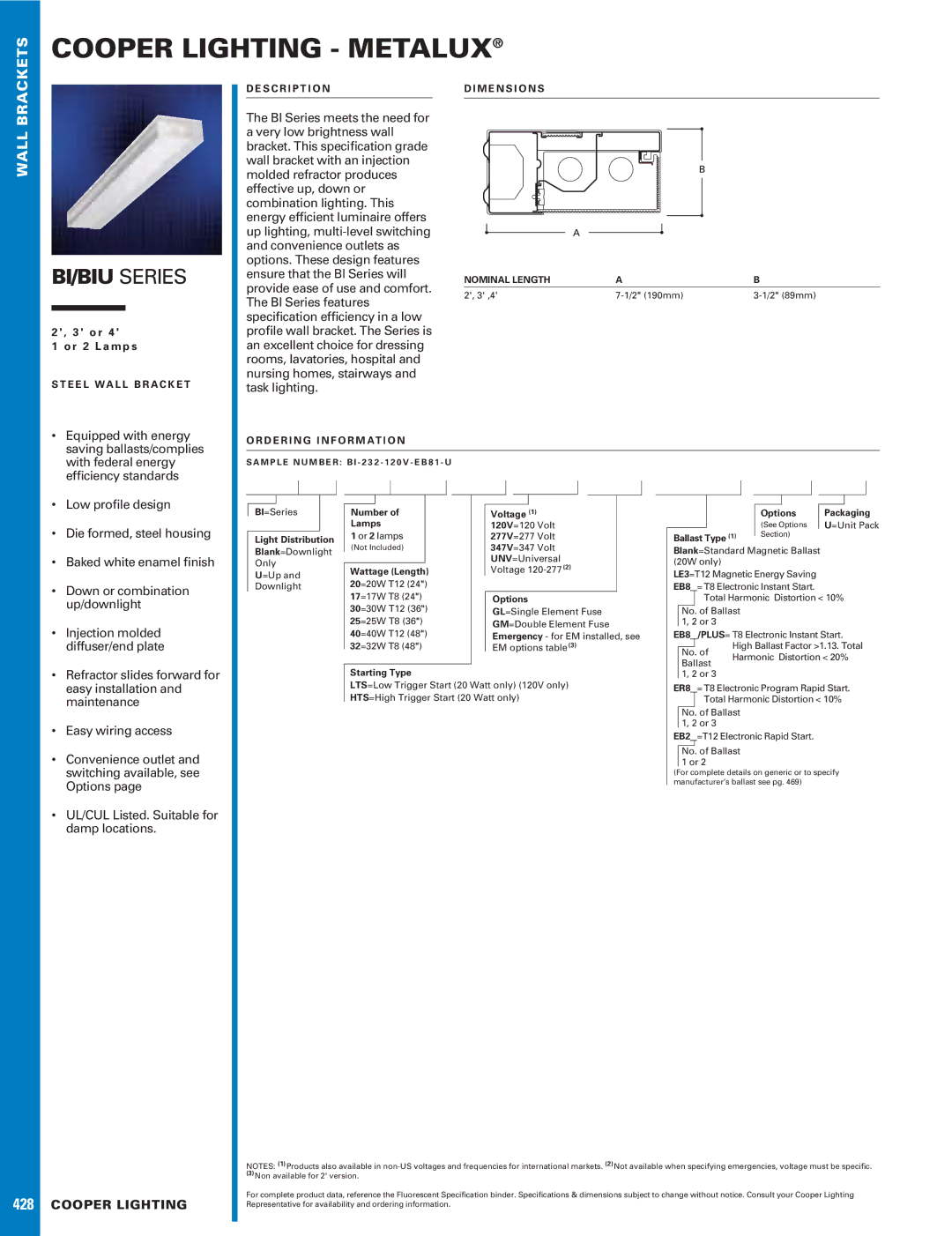

Cooper Lighting BI Series dimensions Cooper Lighting - Metalux, Bi/Biu Series, Brackets, Wall
