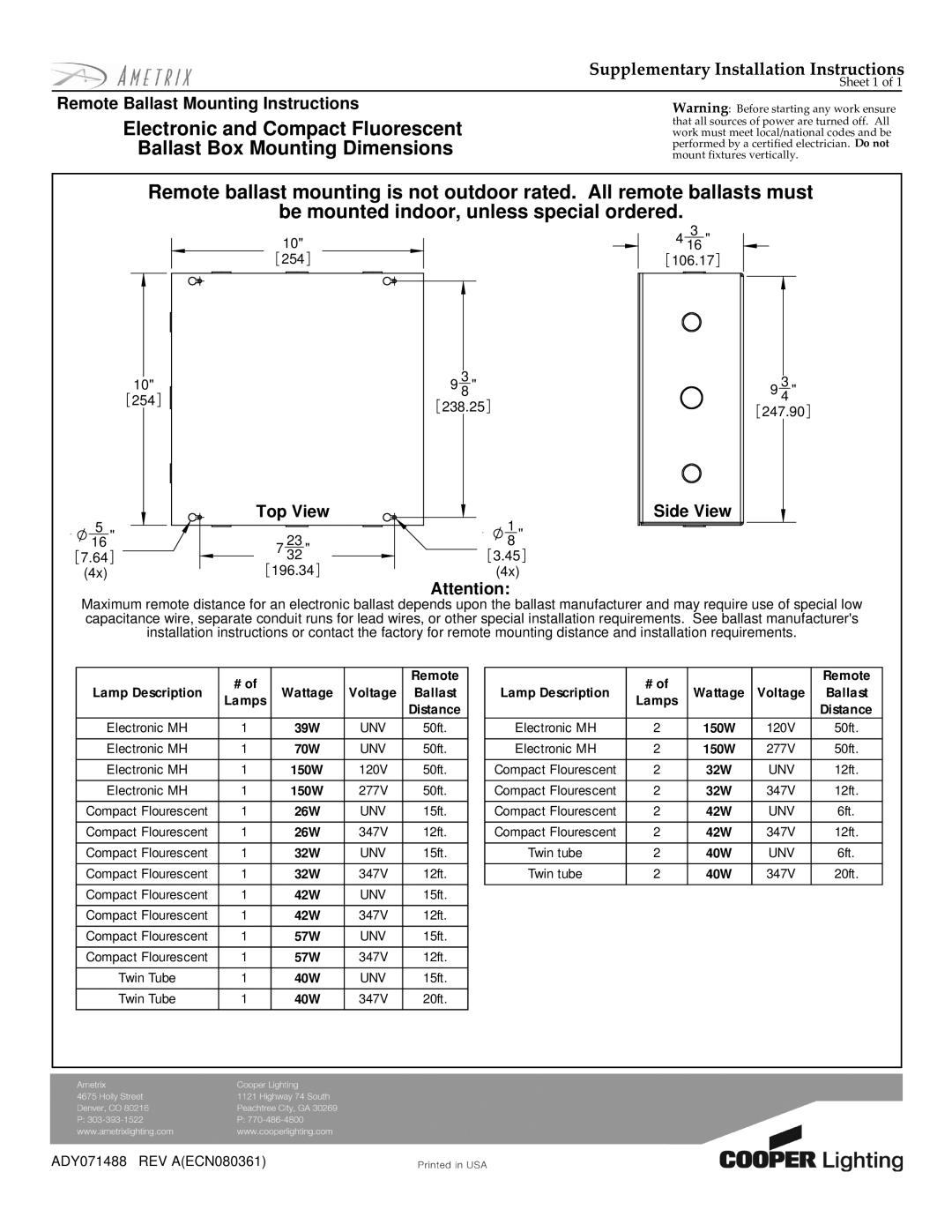

| Supplementary Installation Instructions | |
| Sheet 1 of 1 | |
Remote Ballast Mounting Instructions | Warning: Before starting any work ensure |
|
| ||
Electronic and Compact Fluorescent | that all sources of power are turned off. All | |
work must meet local/national codes and be | ||
Ballast Box Mounting Dimensions | performed by a certified electrician. Do not | |
mount fixtures vertically. | ||
Remote ballast mounting is not outdoor rated. All remote ballasts must
be mounted indoor, unless special ordered.
10"
254
5
16 "
7.64
(4x)
10"
254
Top View
23
7 32 "
196.34
3
9 8 "
238.25
1
8 "
3.45
(4x)
Attention:
3
4 16 "
106.17
Side View
3
9 4 "
247.90
Maximum remote distance for an electronic ballast depends upon the ballast manufacturer and may require use of special low capacitance wire, separate conduit runs for lead wires, or other special installation requirements. See ballast manufacturer's installation instructions or contact the factory for remote mounting distance and installation requirements.
| # of |
|
| Remote | |
Lamp Description | Wattage | Voltage | Ballast | ||
Lamps | |||||
|
|
| Distance | ||
|
|
|
| ||
Electronic MH | 1 | 39W | UNV | 50ft. | |
|
|
|
|
| |
Electronic MH | 1 | 70W | UNV | 50ft. | |
|
|
|
|
| |
Electronic MH | 1 | 150W | 120V | 50ft. | |
|
|
|
|
| |
Electronic MH | 1 | 150W | 277V | 50ft. | |
|
|
|
|
| |
Compact Flourescent | 1 | 26W | UNV | 15ft. | |
|
|
|
|
| |
Compact Flourescent | 1 | 26W | 347V | 12ft. | |
|
|
|
|
| |
Compact Flourescent | 1 | 32W | UNV | 15ft. | |
|
|
|
|
| |
Compact Flourescent | 1 | 32W | 347V | 12ft. | |
|
|
|
|
| |
Compact Flourescent | 1 | 42W | UNV | 15ft. | |
|
|
|
|
| |
Compact Flourescent | 1 | 42W | 347V | 12ft. | |
|
|
|
|
| |
Compact Flourescent | 1 | 57W | UNV | 15ft. | |
|
|
|
|
| |
Compact Flourescent | 1 | 57W | 347V | 12ft. | |
|
|
|
|
| |
Twin Tube | 1 | 40W | UNV | 15ft. | |
|
|
|
|
| |
Twin Tube | 1 | 40W | 347V | 20ft. | |
|
|
|
|
|
| # of |
|
| Remote | |
Lamp Description | Wattage | Voltage | Ballast | ||
Lamps | |||||
|
|
| Distance | ||
|
|
|
| ||
Electronic MH | 2 | 150W | 120V | 50ft. | |
|
|
|
|
| |
Electronic MH | 2 | 150W | 277V | 50ft. | |
|
|
|
|
| |
Compact Flourescent | 2 | 32W | UNV | 12ft. | |
|
|
|
|
| |
Compact Flourescent | 2 | 32W | 347V | 12ft. | |
|
|
|
|
| |
Compact Flourescent | 2 | 42W | UNV | 6ft. | |
|
|
|
|
| |
Compact Flourescent | 2 | 42W | 347V | 12ft. | |
|
|
|
|
| |
Twin tube | 2 | 40W | UNV | 6ft. | |
|
|
|
|
| |
Twin tube | 2 | 40W | 347V | 20ft. | |
|
|
|
|
|
