MCGRAW-EDISON®

D I M E N S I O N S

8" (Rd.)

(203mm)

7" (Sq.)

(178mm)

42"

(1067mm)

36"

(914mm)

32"

(813mm)

28"

(711mm)

24"

(610mm)

D E S C R I P T I O N

The McGraw-Edison BSL / BRL Bollard Series, available in heights from 24" to 42", has crisp, clean lines which blend with any architectural setting. Constructed of seamless, heavy-duty aluminum and finished with a tough polyester powder coat finish, the McGraw-Edison Louvered Bollard Series is gasketed to seal out external contaminants. U.L. 1598 listed and CSA certified for wet locations.

BSL / BRL

BOLLARD

2 6 - 1 0 0 W M e t a l H a l i d e H i g h P r e s s u r e S o d i u m I n c a n d e s c e n t

PAT H W AY L U M I N A I R E

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : B S L - 3 6 - 1 0 0 - M H - M T- B K

Rugged thick cast



aluminum top cap



secured via a concealed



stainless steel allen screw

Cast Aluminum Louver



blades provide sharp



cutoff delivering no direct



light above 90°

• One piece tempered glass

PATHWAYS

Product Family

BSL=Square

Bollard

with Stacked Louvers,

&Pyramidal Top

BRL=Round Bollard with Stacked Louvers,

& Dome Top

Fixture Height 24=24" 28=28" 32=32" 36=36" 42=42"

Lamp

Wattage

HID 1

35=35W 2

50=50W

70=70W

100=100W

Compact Fluorescent 3 26=26W 32=32W 42=42W

Lamp Type

MH=Metal Halide

HPS=High

Pressure

Sodium

IC=Incandescent

Voltage 4

120=120V

208=208V

240=240V

277=277V

MT=Multi-Tap 5 TT=Triple-Tap 6 UNV=Universal

120-277V 3

















Color 7

Options &

BK=Black

Accessories

AP=Grey

(See Below)

BZ=Bronze



WH=White



DP=Dark Platinum



GM=Graphite Metallic



with internal flutes for



even disbursement of



illumination. Decorative



colored glass optional

Premium fade and



resistant, TGIC Polyester



Powder Coat Finish

• Globe is fully gasketed



via EPDM material

Nominal 1/8" thick



aluminum extruded

Options 8

F=Single Fuse (120, 277 or 347V)

FF=Double Fused (208 or 240V)

R1=Provisional Cut for GFI Receptacle 9

R2=Installed GFI Receptacle 9

L=Lamp Included 10

CF/EM=Emergency Battery Pack 11

AB=Aqua Marine Blue Glass Jar

HG=Hunter Green Glass Jar

OR=Orange Glass Jar

RB=Royal Blue Glass Jar

RE=Red Glass Jar

NOTES: 1 All lamps are medium-base. 2 35W HPS available in 120V only. 3 Compact Fluorescent only Electronic ballast universal voltage 120-277V. 4 Product also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information. 5 Multi-Tap ballast is 120/208/240/277V wired 277V. 6 Triple-Tap ballast is 120/277/347V wired 347V. 7 Other finish colors available, including a full line of RAL color matches. Consult your Cooper Lighting Representative. 8 Add as suffix in the order shown. 9 Location of R1 and R2 option on housing subject to height of luminaire. 10 Coated lamp standard. Must specify clear lamp if desired. 11 CF lamps only, rated minimum operating temperature 32° F (0° C). 12 Specifications and dimensions subject to change without notice.



housing

Socket is porcelain,



medium-base for HID



lamp sources

• High Power Factor ballast



for –20°F starting

Base mounts onto



foundation with three (3)



1/2" x 12 1/2" anchor bolts



on a 5" Dia. bolt circle

Rugged cast aluminum



base is completely



concealed

• U.L. listed for wet



locations. CSA certified

Approximate net weight:



26 lbs. (12 kgs.)

COOPER LIGHTING

1197

Page 1
Image 1

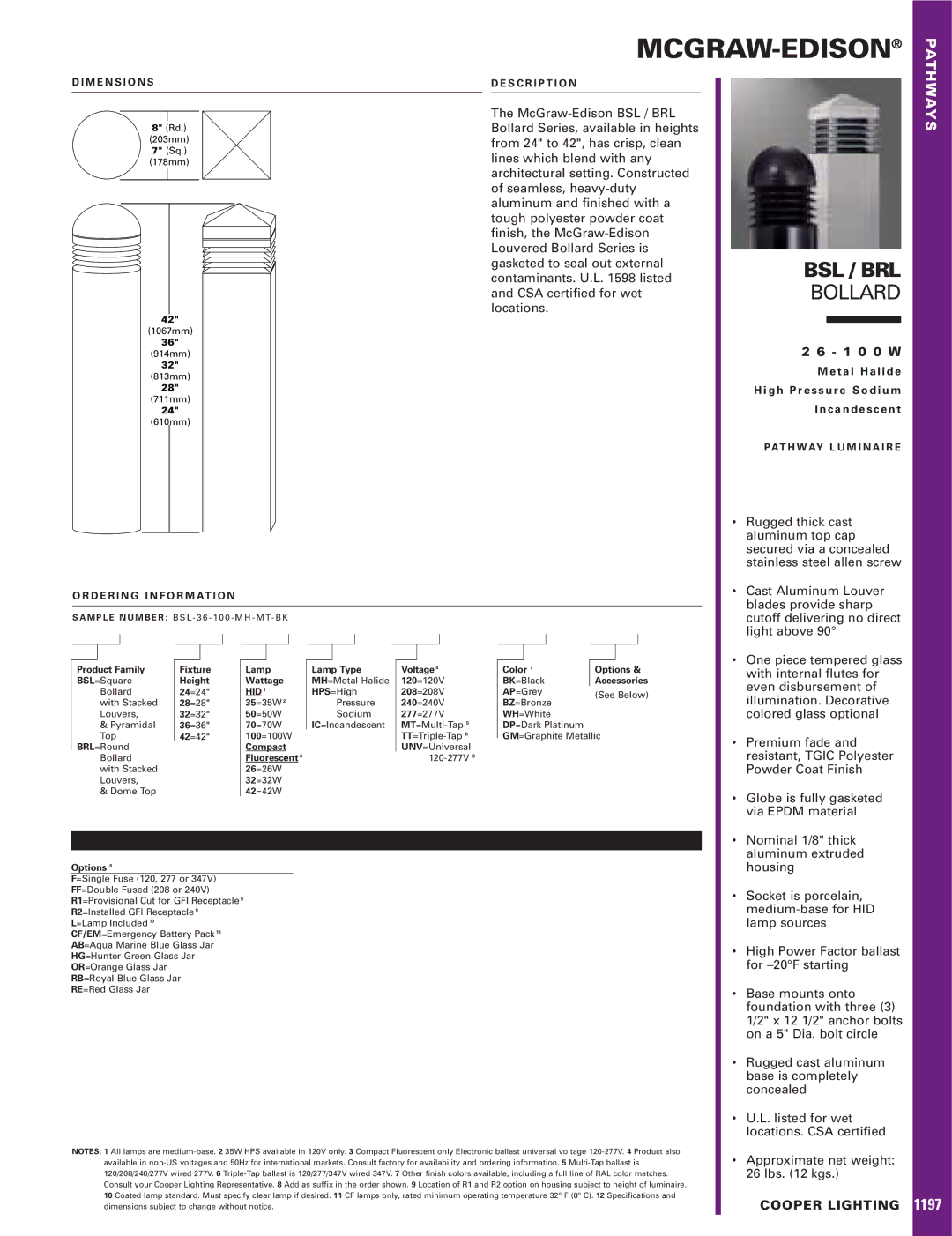

Cooper Lighting BRL, BSL, 1197 dimensions Mcgraw-Edison

BRL, 1197, BSL specifications
