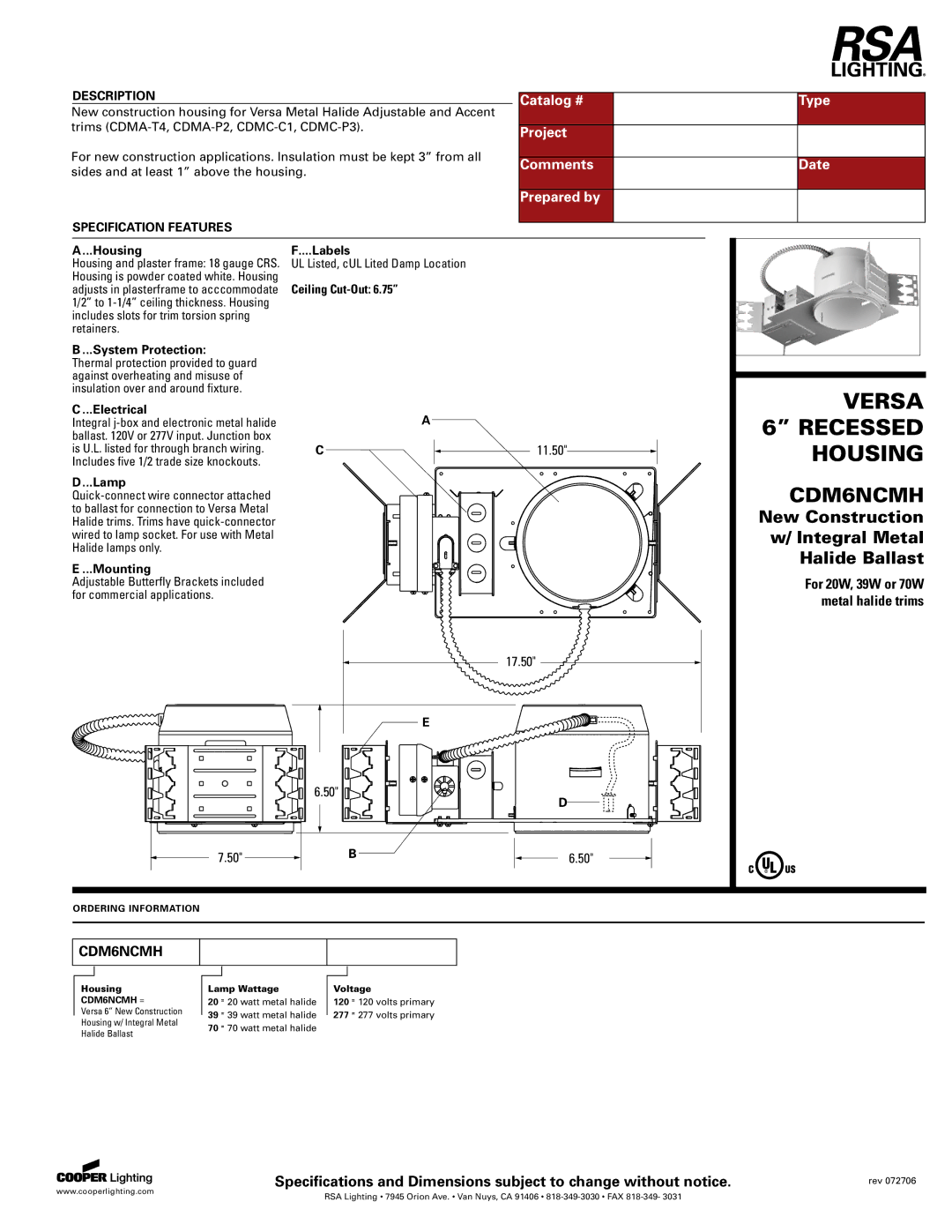

Cooper Lighting CDM6NCMH specifications Versa, 6” RECESSED, Housing, New Construction, Catalog #

DESCRIPTION		Catalog #	Type
New construction housing for Versa Metal Halide Adjustable and Accent
trims (CDMA-T4, CDMA-P2, CDMC-C1, CDMC-P3).		Project
For new construction applications. Insulation must be kept 3” from all		Comments	Date
sides and at least 1” above the housing.
		Prepared by
SPECIFICATION FEATURES
A....Housing	F....Labels
Housing and plaster frame: 18 gauge CRS. UL Listed, cUL Lited Damp Location
Housing is powder coated white. Housing
adjusts in plasterframe to acccommodate	Ceiling Cut-Out: 6.75”
1/2” to 1-1/4” ceiling thickness. Housing
includes slots for trim torsion spring
retainers.
B....System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.			VERSA
C....Electrical	A
ballast. 120V or 277V input. Junction box			6” RECESSED
Integral j-box and electronic metal halide			HOUSING
Includes five 1/2 trade size knockouts.
is U.L. listed for through branch wiring.	C	11.50"
D....Lamp			CDM6NCMH
Quick-connect wire connector attached
to ballast for connection to Versa Metal			New Construction
Halide trims. Trims have quick-connector
wired to lamp socket. For use with Metal			w/ Integral Metal
Halide lamps only.			Halide Ballast
E....Mounting
			For 20W, 39W or 70W
Adjustable Butterfly Brackets included
for commercial applications.			metal halide trims

17.50"

E

6.50"

D

7.50"

B

6.50"

ORDERING INFORMATION

CDM6NCMH

Housing

CDM6NCMH =

Versa 6” New Construction Housing w/ Integral Metal Halide Ballast

Lamp Wattage

20 = 20 watt metal halide

39 = 39 watt metal halide

70 = 70 watt metal halide

Voltage

120 = 120 volts primary

277 = 277 volts primary

Specifications and Dimensions subject to change without notice.

rev 072706
