DESCRIPTION

An adjustable Single-lamp Recessed fixture for trimless installation suitable for downlighting and accent applications. Utilizes ONE (1) CDMR111 Metal Halide lamp.

For new construction applications. Insulation must be kept 3” from all sides and at least 1” above the housing.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A.... Housing

Housing, junction box & trimless meshplate assembly are all steel construction. Perforated meshplate allows for trimless installation in drywall/plaster ceilings by allowing the ceiling’s mudding compound to be applied right up to the edge of the fixture opening. Includes

a beveled “knife-edge” lips to ensure a clean edge. Can accommodate 0.50” to 1.25” ceiling thickness. Optional Chicago Plenum configuration available.

B.... System Protection:

Thermal protection provided to guard against overheating and misuse of insulation over and around fixture. Vent holes in housing provide cooler operation.

C... Junction Box

Junction Box is UL listed for through

branch wiring, 6 #12 90º C supply conductors or 60º C for end of run. The fixture is also UL listed as ‘access above ceiling not required’.

D... Electrical

Electrical accessible through ceiling opening. J-Box located on the side wall of the housing behind removable access doors. Integral electronic metal halide ballasts on individually removable “trays” for easy maintenance. May also be con- figured for remote power.

E.... Lamps

One (1) CDMR111 Metal Halide lamp mounted in adjustable double gimbal. Lamp holder is individually removable and may be regressed 1” for additional cut-off. Lamp can accept snoot or baffle acces- sories. 45º x 45º locking lamp adjustment.

Beveled-edge lamp ring is secured with threadless, bayonet action. Optional retractable arm is available for lamp pulldown and extreme aiming. Includes GX8.5 sockets.

F.... Mounting

Butterfly Brackets accept 1/2” EMT, C Channel, Tbar fasteners, and bar hangers. Four tabs on housing for securing to structure. Perforated flaps along housing sides for securing trimless insert to fixture and drywall.

G... Labels

cULus listed for non-type IC applications, suitable for use in damp locations.

Ceiling Cut-Out: 7.49” x 7.49 ”

COMBOLIGHT®

Next Generation

Recessed

Single-Lamp Fixture

One (1) Light CDMR111 Metal Halide

New Construction

Housing

Trimless

16.01”

13.01”

Double

Gimbal

9.45”

17.14”

13.01”

6.69”

45º x 45º

Adjust

For use with 39 or 70W CDMR111 Metal halide lamps.

6.69”

Integral Electronic



Metal Halide Ballast

Thermal





Protector

ORDERING INFORMATION

C1

E

N

N



















Configuration



Lamp Type / Wattage Label



C1 = COMBOLIGHT



039C11 =

39 Watt CDMR111 Metal Halide



Recessed One (1) Light



070C11 =

70 Watt CDMR111 Metal Halide





















Housing

N = New Construction

C = Chicago Plenum

Power Supply

Voltage

1 = 120V

2 = 277V

Power Supply

E = Electronic Metal Halide Ballast

Lamp Mechanism

G = Double Gimbal

R = Retractable Double Gimbal

Trim Insert

N = Trimless

Trim Insert Finish

N = Trimless

Housing Interior/Electrical Door/Sleeve Finish

W = White

B = Black

S = Industrial Silver

Specifications and Dimensions subject to change without notice.

rev 050108

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031



Page 1

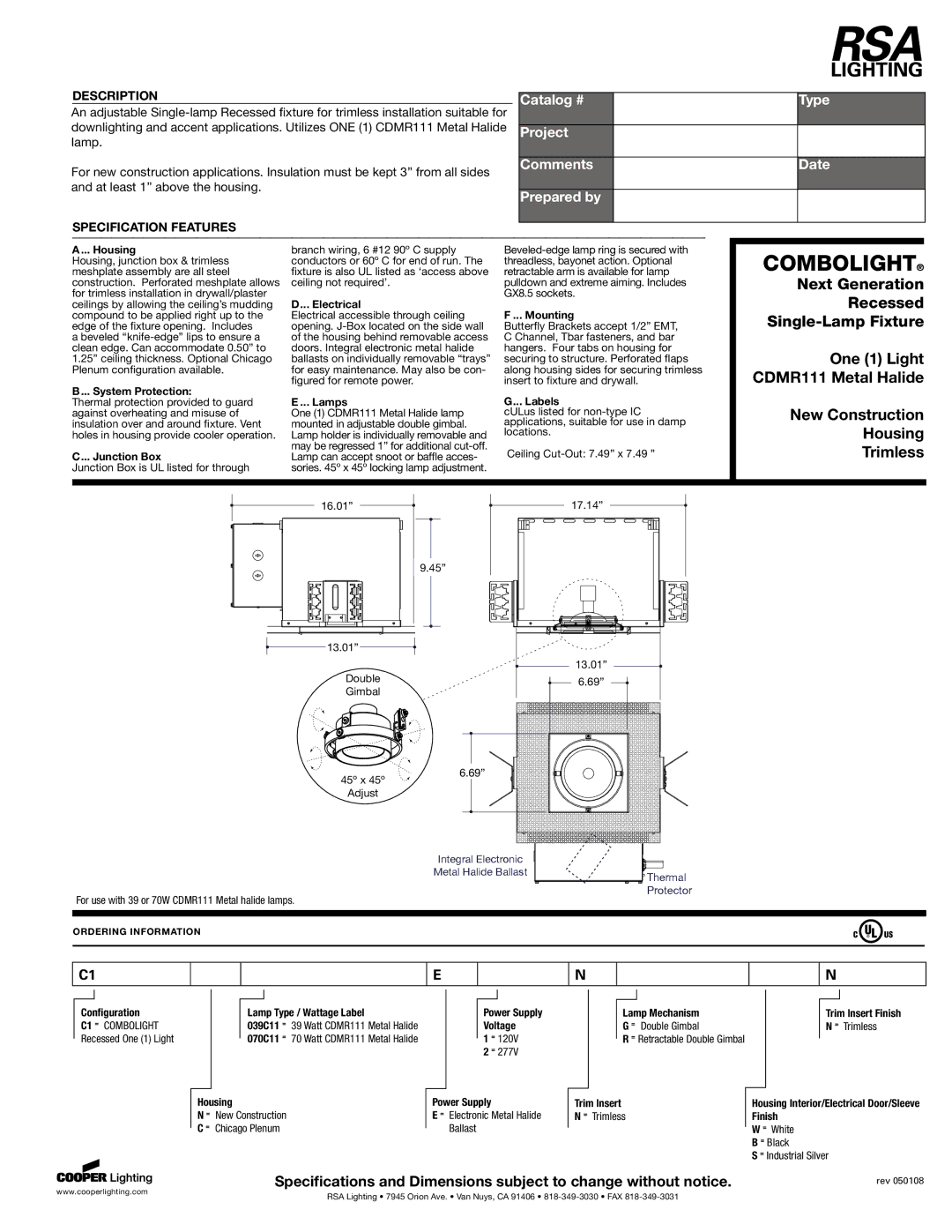

Image 1
