TECHZONE™ Ceiling System
Recessed Downlight Fixtures
Armstrong® TechZone™ Compatible

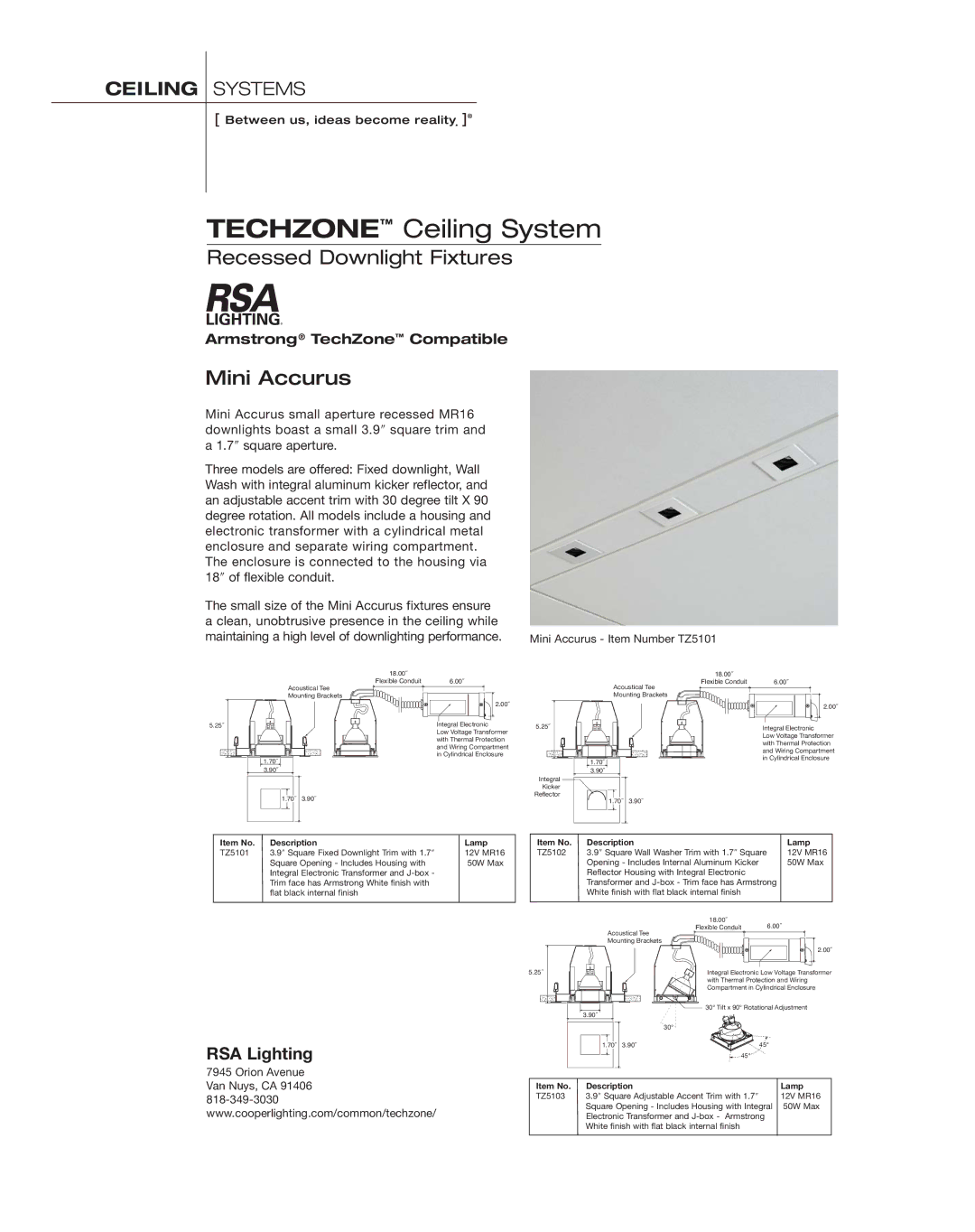

Mini Accurus
Mini Accurus small aperture recessed MR16 downlights boast a small 3.9″ square trim and a 1.7″ square aperture.
Three models are offered: Fixed downlight, Wall Wash with integral aluminum kicker reflector, and an adjustable accent trim with 30 degree tilt X 90 degree rotation. All models include a housing and electronic transformer with a cylindrical metal enclosure and separate wiring compartment. The enclosure is connected to the housing via 18″ of flexible conduit.
The small size of the Mini Accurus fixtures ensure a clean, unobtrusive presence in the ceiling while maintaining a high level of downlighting performance.
| 18.00˝ |
|
| Flexible Conduit | 6.00˝ |
Acoustical Tee |
| |
Mounting Brackets |
| |
|
| 2.00˝ |
5.25˝ |
| Integral Electronic |
|
| Low Voltage Transformer |
|
| with Thermal Protection |
|
| and Wiring Compartment |
1.70˝ |
| in Cylindrical Enclosure |
|
| |
3.90˝ |
|
|
1.70˝ | 3.90˝ |
|
Mini Accurus - Item Number TZ5101
18.00˝
Flexible Conduit
Acoustical Tee
Mounting Brackets
5.25˝
1.70˝
3.90˝
Integral
Kicker
Reflector
1.70˝ 3.90˝
6.00˝
2.00˝
Integral Electronic
Low Voltage Transformer with Thermal Protection and Wiring Compartment in Cylindrical Enclosure
Item No. | Description | Lamp |
TZ5101 | 3.9″ Square Fixed Downlight Trim with 1.7″ | 12V MR16 |
| Square Opening - Includes Housing with | 50W Max |
| Integral Electronic Transformer and |
|
| Trim face has Armstrong White finish with |
|
| flat black internal finish |
|
|
|
|
RSA Lighting
7945 Orion Avenue
Van Nuys, CA 91406
Item No. | Description | Lamp |
TZ5102 | 3.9″ Square Wall Washer Trim with 1.7″ Square | 12V MR16 |
| Opening - Includes Internal Aluminum Kicker | 50W Max |
| Reflector Housing with Integral Electronic |
|
| Transformer and | |
| White finish with flat black internal finish |
|
| 18.00˝ | 6.00˝ |
| Flexible Conduit | |
| Acoustical Tee |
|
| Mounting Brackets |
|
|
| 2.00˝ |
5.25˝ | Integral Electronic Low Voltage Transformer | |
| with Thermal Protection and Wiring | |
| Compartment in Cylindrical Enclosure | |
30° Tilt x 90° Rotational Adjustment |
3.90˝
|
| 30° |
1.70˝ | 3.90˝ | 45° |
|
| 45° |
Item No. | Description | Lamp |
TZ5103 | 3.9″ Square Adjustable Accent Trim with 1.7″ | 12V MR16 |
| Square Opening - Includes Housing with Integral | 50W Max |
| Electronic Transformer and |
|
| White finish with flat black internal finish |
|
|
|
|
