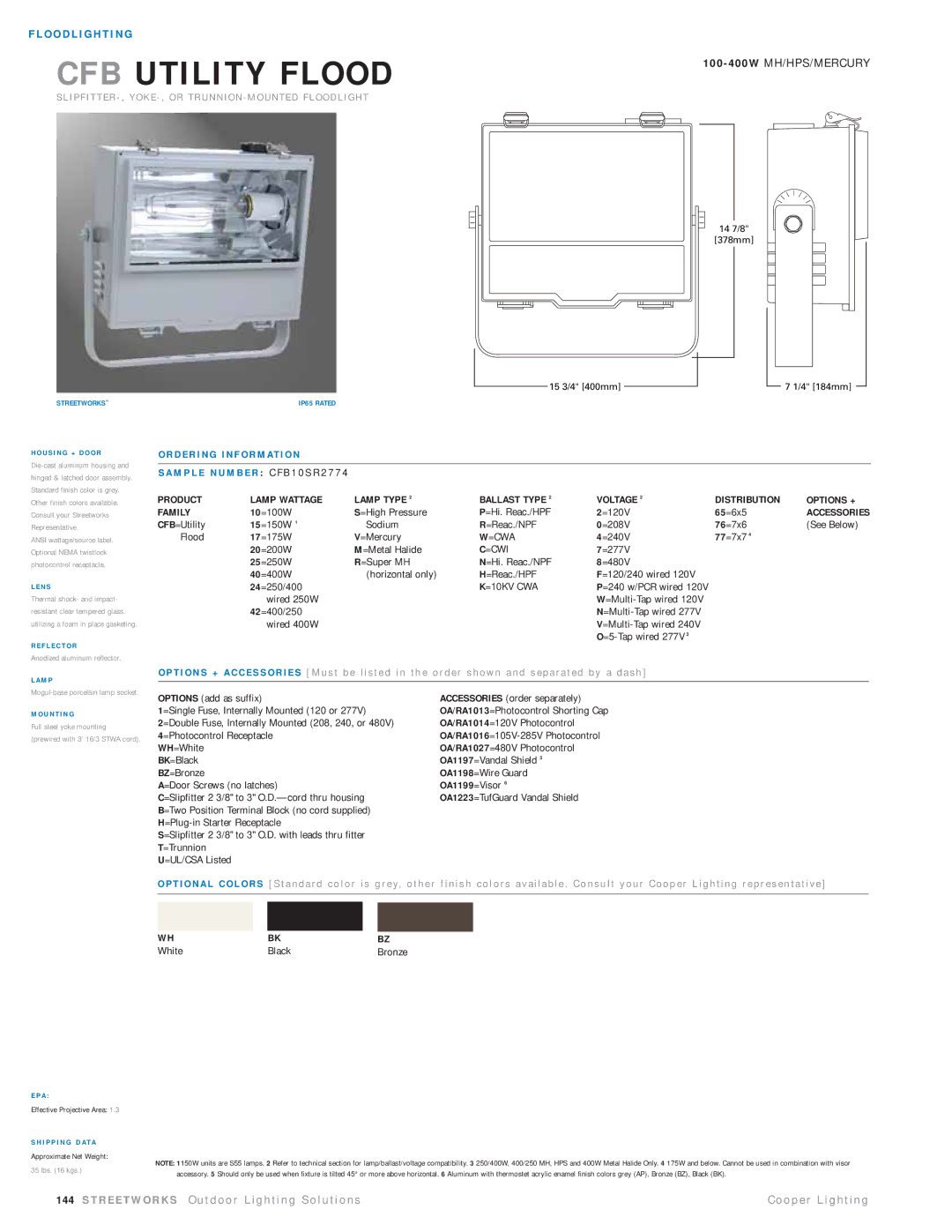

F L O O D L I G H T I N G
CFB UTILITY FLOOD |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
S L I P F I T T E R |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14 7/8"
[378mm]
15 3/4" [400mm]
STREETWORKS™ | IP65 RATED |
7 1/4" [184mm]
H O U S I N G + D O O R
Other finish colors available. Consult your Streetworks Representative.
ANSI wattage/source label. Optional NEMA twistlock photocontrol receptacle.
L E N S
Thermal shock- and impact- resistant clear tempered glass, utilizing a foam in place gasketing.
R E F L E C T O R
Anodized aluminum reflector.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : C F B 1 0 S R 2 7 7 4
PRODUCT | LAMP WATTAGE | LAMP TYPE 2 | BALLAST TYPE 2 | VOLTAGE 2 | DISTRIBUTION | OPTIONS + |
FAMILY | 10=100W | S=High Pressure | P=Hi. Reac./HPF | 2=120V | 65=6x5 | ACCESSORIES |
CFB=Utility | 15=150W 1 | Sodium | R=Reac./NPF | 0=208V | 76=7x6 | (See Below) |
Flood | 17=175W | V=Mercury | W=CWA | 4=240V | 77=7x7 4 |
|
| 20=200W | M=Metal Halide | C=CWI | 7=277V |
|
|
| 25=250W | R=Super MH | N=Hi. Reac./NPF | 8=480V |
|
|
| 40=400W | (horizontal only) | H=Reac./HPF | F=120/240 wired 120V |
|
|
| 24=250/400 |
| K=10KV CWA | P=240 w/PCR wired 120V |
|
|
| wired 250W |
|
|
|
| |
| 42=400/250 |
|
|
|
| |
| wired 400W |
|
|
|
| |
|
|
|
|
|
|
L A M P
M O U N T I N G
Full steel yoke mounting
(prewired with 3' 16/3 STWA cord).
O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]
OPTIONS (add as suffix) | ACCESSORIES (order separately) |
1=Single Fuse, Internally Mounted (120 or 277V) | OA/RA1013=Photocontrol Shorting Cap |
2=Double Fuse, Internally Mounted (208, 240, or 480V) | OA/RA1014=120V Photocontrol |
4=Photocontrol Receptacle | |
WH=White | OA/RA1027=480V Photocontrol |
BK=Black | OA1197=Vandal Shield 5 |
BZ=Bronze | OA1198=Wire Guard |
A=Door Screws (no latches) | OA1199=Visor 6 |
C=Slipfitter 2 3/8" to 3" | OA1223=TufGuard Vandal Shield |
B=Two Position Terminal Block (no cord supplied) |
|
| |
S=Slipfitter 2 3/8" to 3" O.D. with leads thru fitter |
|
T=Trunnion |
|
U=UL/CSA Listed |
|
O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s g r e y, o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]
|
|
|
|
|
WH | BK | BZ | ||
White | Black | Bronze | ||
E PA :
Effective Projective Area: 1.3
S H I P P I N G D ATA
Approximate Net Weight:
35 lbs. (16 kgs.)
NOTE: 1150W units are S55 lamps. 2 Refer to technical section for lamp/ballast/voltage compatibility. 3 250/400W, 400/250 MH, HPS and 400W Metal Halide Only. 4 175W and below. Cannot be used in combination with visor accessory. 5 Should only be used when fixture is tilted 45° or more above horizontal. 6 Aluminum with thermostet acrylic enamel finish colors grey (AP), Bronze (BZ), Black (BK).
