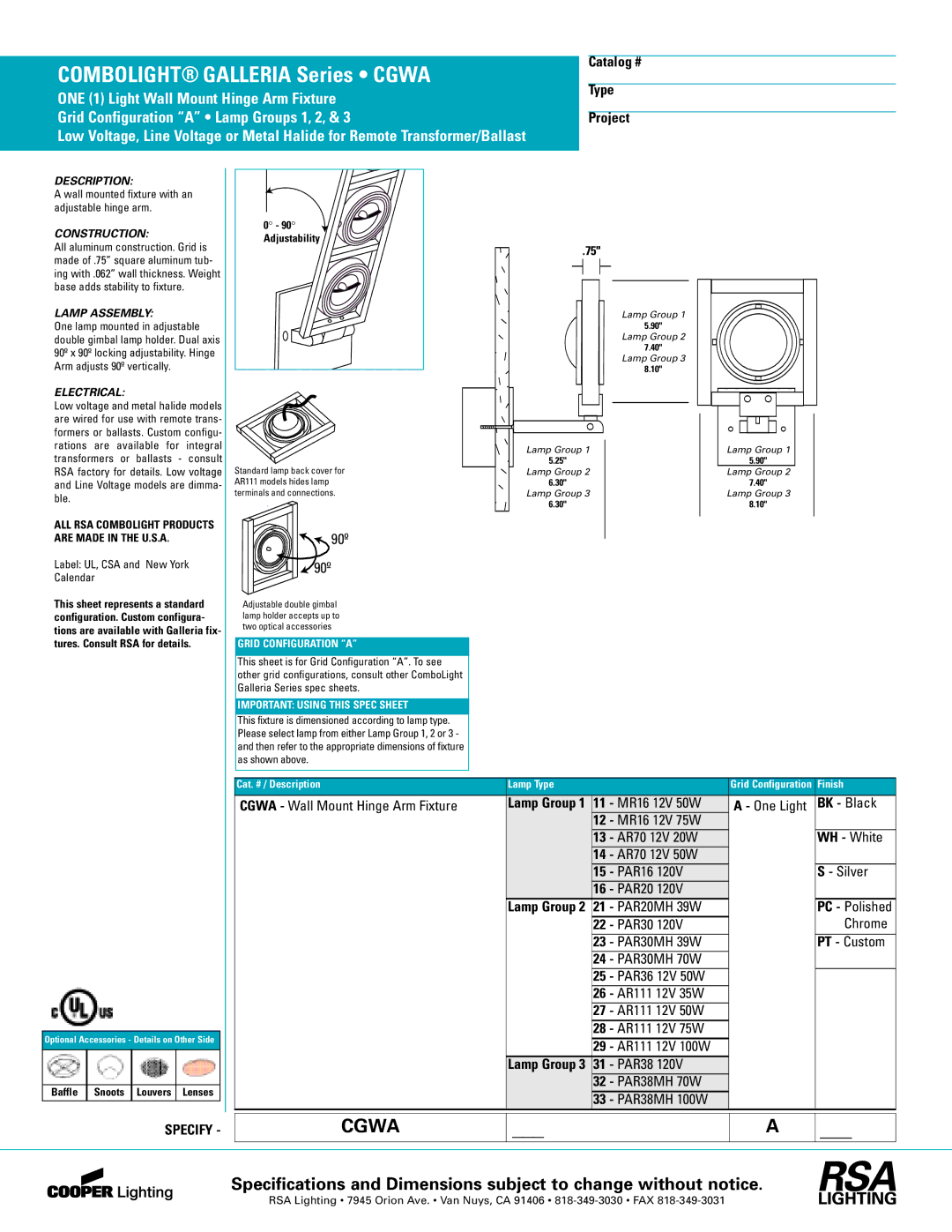

COMBOLIGHT® GALLERIA Series • CGWA
Catalog #
ONE (1) Light Wall Mount Hinge Arm Fixture
Type
Grid Configuration “A” • Lamp Groups 1, 2, & 3Project Low Voltage, Line Voltage or Metal Halide for Remote Transformer/Ballast
DESCRIPTION:
A wall mounted fixture with an adjustable hinge arm.
CONSTRUCTION:
All aluminum construction. Grid is made of .75” square aluminum tub- ing with .062” wall thickness. Weight base adds stability to fixture.
LAMP ASSEMBLY:
One lamp mounted in adjustable double gimbal lamp holder. Dual axis 90º x 90º locking adjustability. Hinge Arm adjusts 90º vertically.
ELECTRICAL:
Low voltage and metal halide models are wired for use with remote trans- formers or ballasts. Custom configu- rations are available for integral transformers or ballasts - consult RSA factory for details. Low voltage and Line Voltage models are dimma- ble.
ALL RSA COMBOLIGHT PRODUCTS ARE MADE IN THE U.S.A.
Label: UL, CSA and New York Calendar
This sheet represents a standard configuration. Custom configura- tions are available with Galleria fix- tures. Consult RSA for details.
0° - 90°
Adjustability
Standard lamp back cover for AR111 models hides lamp terminals and connections.
90º
90º
Adjustable double gimbal lamp holder accepts up to two optical accessories
GRID CONFIGURATION “A”
This sheet is for Grid Configuration “A”. To see other grid configurations, consult other ComboLight Galleria Series spec sheets.
IMPORTANT: USING THIS SPEC SHEET
This fixture is dimensioned according to lamp type. Please select lamp from either Lamp Group 1, 2 or 3 - and then refer to the appropriate dimensions of fixture as shown above.
.75"
Lamp Group 1
5.90"
Lamp Group 2
7.40"
Lamp Group 3
8.10"
Lamp Group 1
5.25"
Lamp Group 2
6.30"
Lamp Group 3
6.30"
Lamp Group 1
5.90"
Lamp Group 2
7.40"
Lamp Group 3
8.10"
Optional Accessories - Details on Other Side
|
|
|
|
Baffle | Snoots | Louvers | Lenses |
|
|
|
|
Cat. # / Description | Lamp Type |
|
| Grid Configuration | Finish |
CGWA - Wall Mount Hinge Arm Fixture | Lamp Group 1 | 11 | - MR16 12V 50W | A - One Light | BK - Black |
|
| 12 | - MR16 12V 75W |
|
|
|
| 13 | - AR70 12V 20W |
| WH - White |
|
| 14 | - AR70 12V 50W |
|
|
|
| 15 | - PAR16 120V |
| S - Silver |
|
| 16 | - PAR20 120V |
|
|
| Lamp Group 2 | 21 | - PAR20MH 39W |
| PC - Polished |
|
| 22 | - PAR30 120V |
| Chrome |
|
| 23 | - PAR30MH 39W |
| PT - Custom |
|
| 24 | - PAR30MH 70W |
|
|
|
| 25 | - PAR36 12V 50W |
|
|
|
| 26 | - AR111 12V 35W |
|
|
|
| 27 | - AR111 12V 50W |
|
|
|
| 28 | - AR111 12V 75W |
|
|
|
| 29 | - AR111 12V 100W |
|
|
| Lamp Group 3 | 31 | - PAR38 120V |
|
|
|
| 32 | - PAR38MH 70W |
|
|
|
| 33 | - PAR38MH 100W |
|
|
SPECIFY -
CGWA
___
A
___
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 •
