MCGRAW-EDISON®

AREA

D I M E N S I O N S

Y O K E M O U N T

S P I D E R M O U N T



A R M M O U N T



















































































































B















































































































































































C













































A







D



































































A



























































Fixture



A





B

C

D

CIS/CIG



20 1/2" [521mm]

10 1/4" [260mm]

11" [279mm]

6" [152mm]

CIM



24" [610mm]





12 1/8" [308mm]

12 5/8" [321mm]

7 1/2" [191mm]

CIL



28" [711mm]





14 1/4" [362mm]

16" [406mm]

9" [229mm]

O R D E R I N G I N F O R M AT I O N

D E S C R I P T I O N

The Cirrus series sets the standard in flexibility for architectural area lighting. The Cirrus is available in three (3) sizes, so a single look can be carried through diverse areas of a project. Combined with three

(3)mounting varieties, MH or HPS lamps, ten (10) optical packages and numerous colors, the Cirrus offers unparalleled variety in one family of fixtures. U.L. listed and CSA certified for wet locations.

The Cirrus offers features so versatile that it can be used in small areas such as walkways and large areas like parking lots, while maintaining a look of continuity throughout.

CI

CIRRUS

2 6 - 5 7 W

C o m p a c t F l u o r e s c e n t

7 0 - 1 0 0 0 W

/ ROADWAY

S A M P L E N U M B E R : C I M - A M - 4 0 0 - M H - M T- 5 F - B K

M e t a l H a l i d e H i g h P r e s s u r e S o d i u m

































Product





Mounting

Family





Method

CIS=Cirrus





AM=Arm



Small







Mount



Solid





YM=Yoke



Top







Mount 3

CIG=Cirrus





SM=Spider





Small



Mount



Luminous



for 3"



Top 1



O.D.

CIM=Cirrus



Tenon 3



Medium









Solid Top







CIL=Cirrus







Large







Solid Top 2







Lamp

Wattage 4

HID

70=70W

100=100W

150=150W 5

175=175W

250=250W

400=400W 6

1000=1000W 7

Compact Fluorescent 26=26W 32=32W 42=42W 57=57W

Lamp Type

MH=Metal

Halide

HPS=High

Pressure

Sodium

CF=Compact

Fluorescent 8, 9

Voltage 10

120=120V

208=208V

240=240V

277=277V

480=480V

MT=Multi-Tap 11 TT=Triple-Tap 11























































Options &

Distribution

Color 13





Accessories

1F=Type I

(add as suffix/



(See Below)

Formed 12

must specify)

2F=Type II

BK=Black







Formed

BZ=Bronze







2S=Type II

AP=Grey







Segmented

WH=White







3F=Type III

DP=Dark Platinum







Formed

GM=Graphite Metallic







3S=Type III















Segmented















4S=Type IV Segmented

5F=Type V Formed

5S=Type V Segmented

FT=Forward Throw

SL=Spill Light Eliminator 6

A R C H I T E C T U R A L

A R E A L U M I N A I R E

In Solid Top Configurations only.

Spun-aluminum top is

finished in premium TGIC

polyester powder coat

E.P.A. CIS & CIG: Arm Mount 1.19, Spider & Yoke Mount 1.13 / CIM: Arm Mount 1.70, Spider & Yoke Mount 1.52 CIL: Arm Mount 2.36, Spider & Yoke Mount 2.10

Options 14

Accessories 17

F=Single Fuse (120, 277 or 347V)



OA/RA1016=NEMA Photocontrol/Multi-Tap—Multi-Tap

FF=Double Fused (208, 240 or 480V)

OA/RA1027=NEMA Photocontrol/Multi-Tap—480V

P=Button Type Photocontrol (Specify Voltage) 15

MA1001XX=Wall Bracket for Solid Top

R=NEMA Twistlock Photocontrol Receptacle 15

MA1003XX=Wall Bracket for Luminous Top 18

HS=House-side Shield





VS=Vandal Shield 16





L=Lamp Included





NOTES: 1 Segmented optics not available. Available in 120 or 277V only. 2 Segmented optics not available. 3 Requires 4" round straight pole for CIS. 5" round straight pole for CIG and CIM. 6" round straight pole for CIL. 4 All 70-150W lamps on formed optics and 70-175W lamps on small segmented optics are medium-base,

175-1000W are mogul-base. 5 150W HPS uses S-55 lamp (arc rating of 55V). 6 Must use reduced jacket ED-28 400W lamp when using a segmented optical system in the medium housing. 7 1000W HPS not available in medium housing. Medium housing requires BT-37 lamp for Metal Halide and only available with formed optics. 8 Available in Type III, IV and V distributions in small, solid top housing with segmented optics only. 9 Nominal length not to exceed 7". 10 Product also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information. 11 Multi-Tap ballast is 120/208/240/277V wired 277V. Triple-Tap ballast is 120/277/347V wired 347V. 12 Medium housing fixture only. 13 Other finish colors available, including a full line of RAL color matches. Consult your Cooper Lighting Representative. 14 Add as suffix in the order shown. 15 Not available for CIG. 16 400W Maximum. 17 Order separately, replace XX with color suffix. 18 Not for use with 250W HPS. 19 Specifications and dimensions subject to change without notice.

• Long life core-and-coil



HID ballast is hard



mounted for cooler



operation. Pole mounted



ballast assembly for



luminous units only

Controlled and fully



rotatable optics offer



ten (10) distinct beam



patterns. Precision



hydroformed or premium



segmented optical



modules available

Die-cast aluminum door



frame has concealed



hinges and is flush with



the bottom of the



housing

• Thermal shock- and



impact-resistant clear



tempered flat glass

• Variety of arm, spider,



yoke or wall mounting



configurations

• U.L. listed for wet



locations. CSA certified

Approximate net weight:



65 lbs. (29 kgs.)

COOPER LIGHTING

1165

Page 1

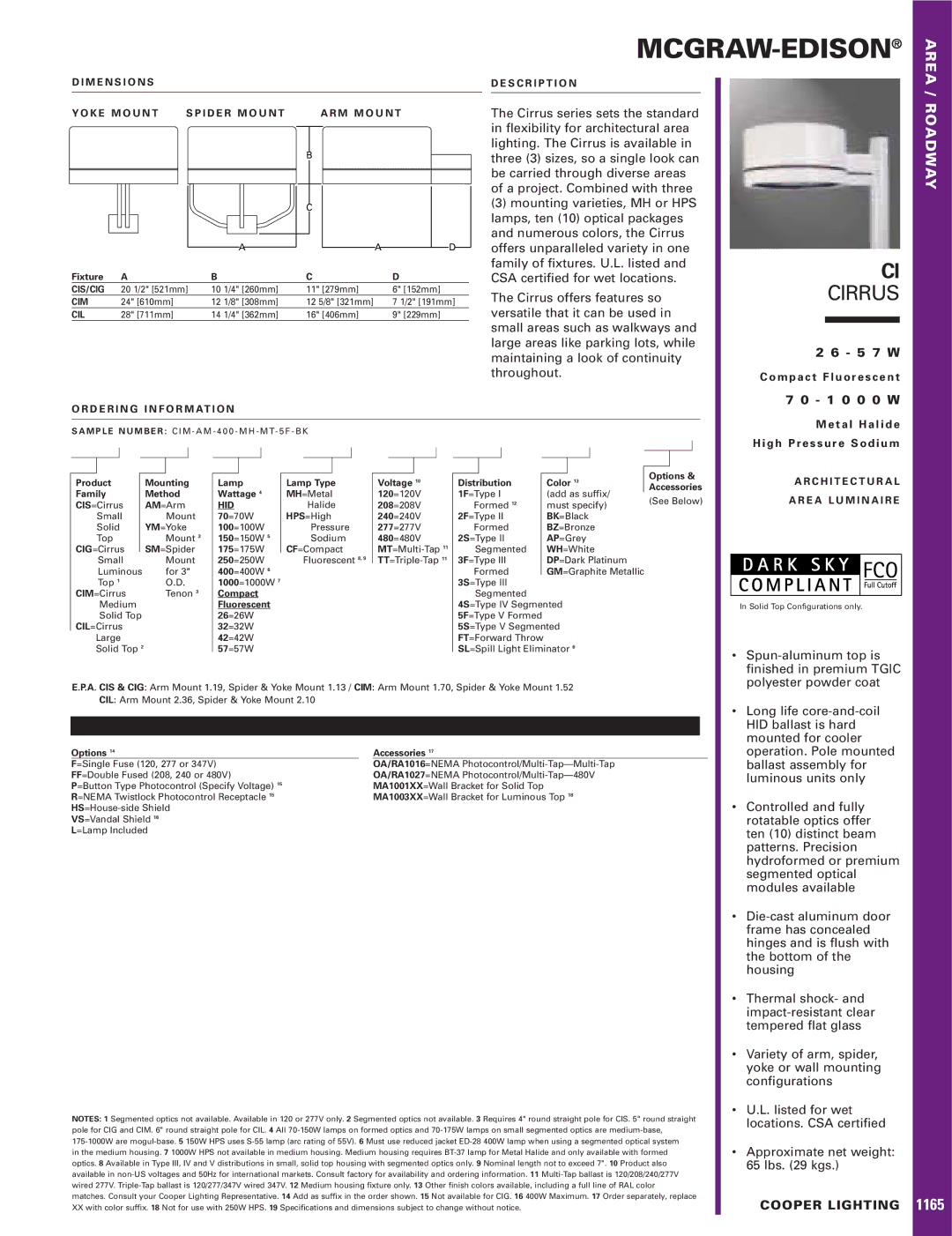

Image 1
