18”
[457mm]
MIN.
ø6” [152mm] 6DIP 1 or 2 Lamps
Construction: Extruded aluminum housing. Nominal 3’, 4’, 6’ or 8’ illuminated sections.
End Caps:
Shielding: Clear ribbed acrylic lens or contoured
baffle.
Electrical: 120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.
Finish: Durable, low gloss, white, powder coated acrylic finish.
Mounting:
Pendant with single stem (standard) or single cable. Canopy: Round 5” diameter.
ORDERING INFORMATION:
Sample number:
Series
6=Cirque
Light Output
Number of Lamps (per cross section) (not included)
1=1 Lamp |
| 1x1=2 Lamps | 1x2=3 Lamps |
Lamp Type |
|
|
|
T8 | T5 | T5HO |
|
Pendant Type | SC=Single Cable |
| |
ST=Single Stem 2 |
|
Run Length
Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)
Voltage 1 |
|
|
|
1=120V | 2=277V | 3=347V | U=Universal |
Ballast |
|
|
|
EB=Electronic Ballast (Standard) | DB=Dimming Ballast | ||
Switching |
|
|
|
SI=Single Switching | DU=Dual Switching |
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding
S14=Contoured Baffle S26=Clear Ribbed Acrylic Lens
1 Due to various constraints, some options may not be combined with others. 2 Available with 7° or earthquake 45° swivel canopy assembly.
| SUSPENDED |
|

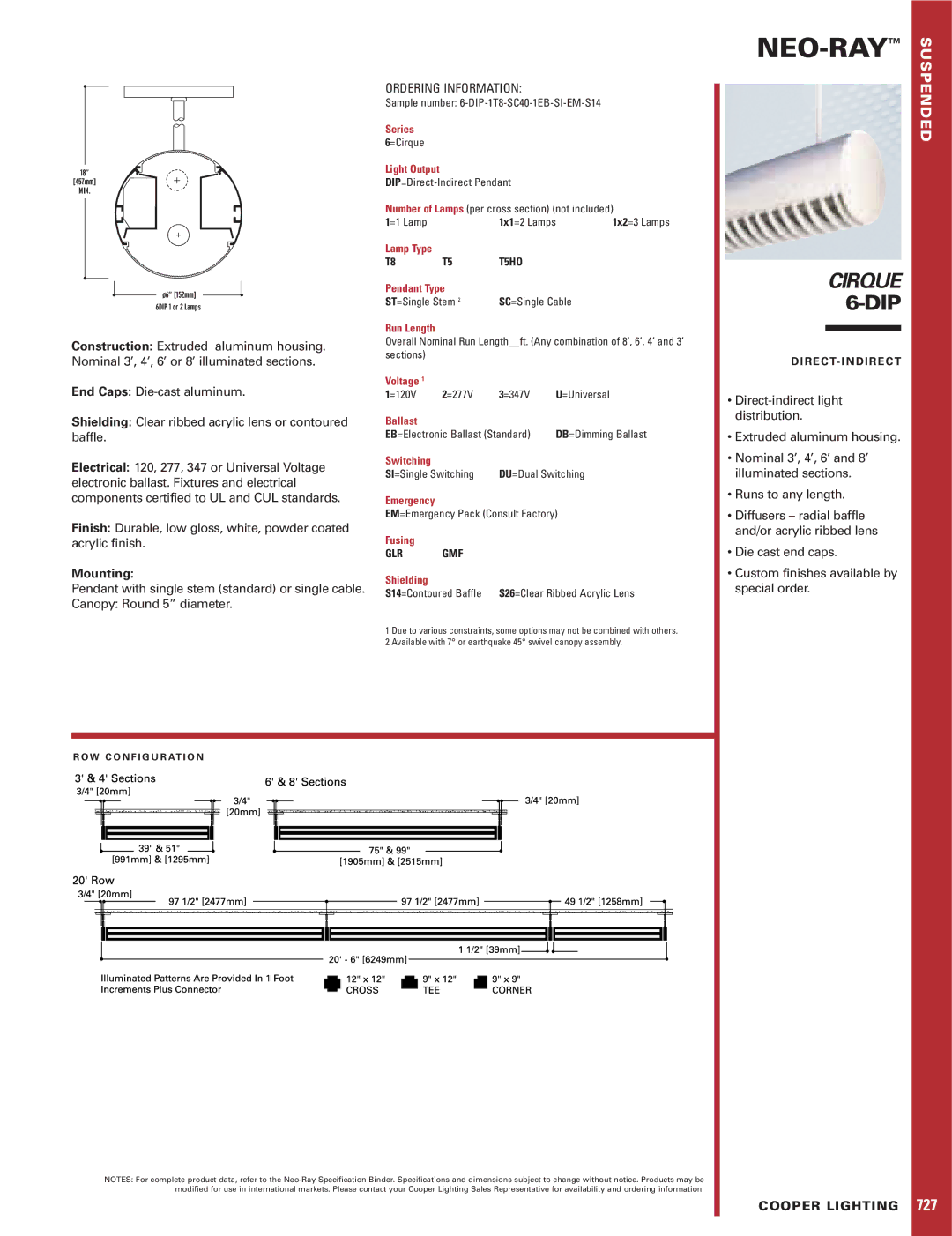

CIRQUE 6-DIP
D I R E C T- I N D I R E C T
•
•Extruded aluminum housing.
•Nominal 3’, 4’, 6’ and 8’ illuminated sections.
•Runs to any length.
•Diffusers – radial baffle and/or acrylic ribbed lens
•Die cast end caps.
•Custom finishes available by special order.
R O W C O N F I G U R AT I O N
NOTES: For complete product data, refer to the
