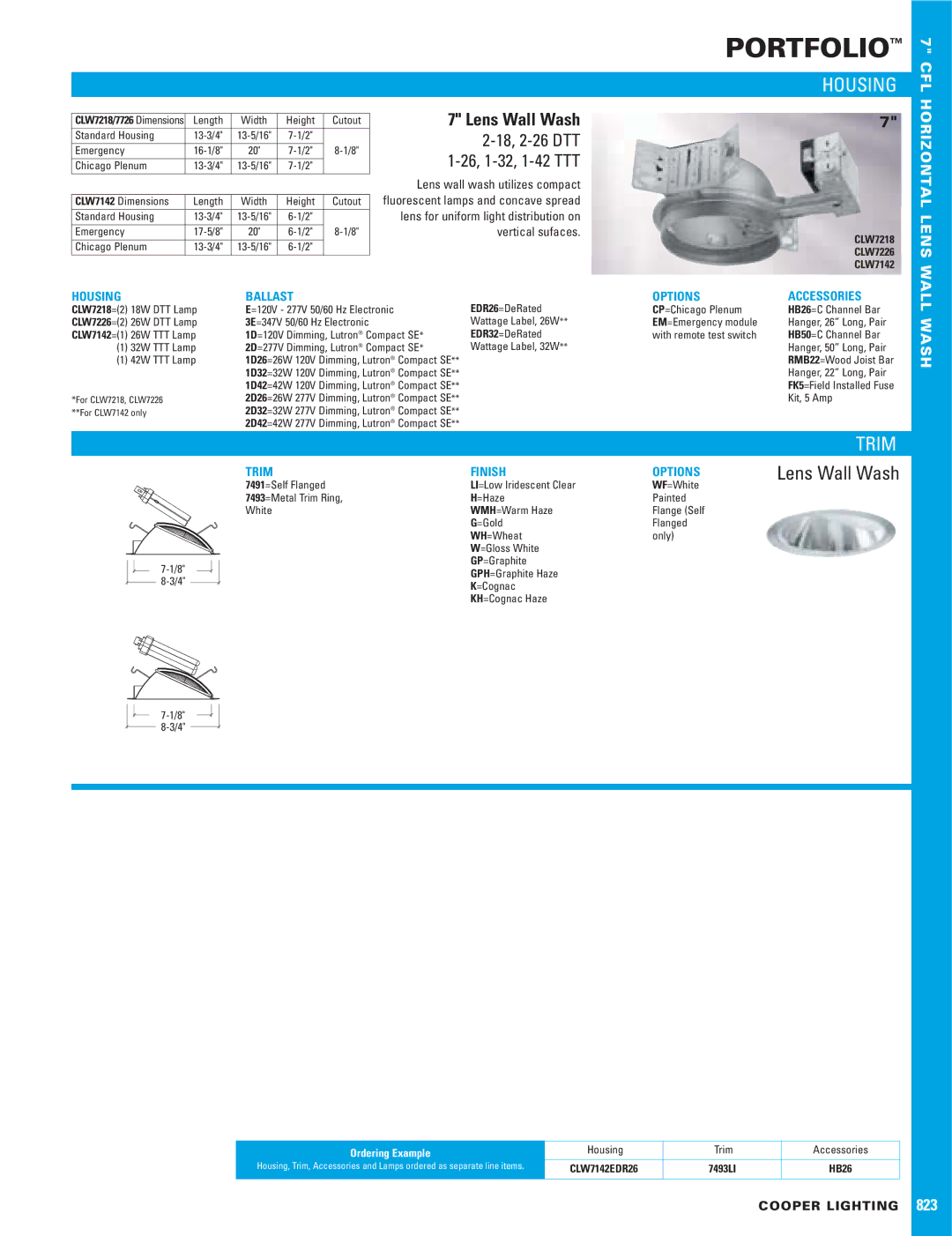

CLW7218/7726 Dimensions | Length | Width | Height | Cutout |
| 7" Lens Wall Wash | |
Standard Housing |
|
|
| ||||
Emergency |
| 20" |
| ||||
|
|
| |||||
Chicago Plenum |
|
| |||||
|
|
|
|
|
| Lens wall wash utilizes compact | |
|
|
|
|
| fluorescent lamps and concave spread | ||
CLW7142 Dimensions | Length | Width | Height | Cutout | |||
|
|
|
|
| lens for uniform light distribution on | ||
Standard Housing |
| ||||||
Emergency |
| 20" |
| vertical sufaces. | |||
Chicago Plenum |
|
|
| ||||
HOUSING |
|
| BALLAST |
|
| EDR26=DeRated | |
CLW7218=(2) | 18W DTT Lamp | E=120V - 277V 50/60 Hz Electronic | |||||
CLW7226=(2) | 26W DTT Lamp | 3E=347V 50/60 Hz Electronic |
| Wattage Label, 26W** | |||
CLW7142=(1) | 26W TTT Lamp | 1D=120V Dimming, Lutron® Compact SE* | EDR32=DeRated | ||||
(1) | 32W TTT Lamp | 2D=277V Dimming, Lutron® Compact SE* | Wattage Label, 32W** | ||||
(1) | 42W TTT Lamp | 1D26=26W 120V Dimming, Lutron® Compact SE** | |||||
|
|
| 1D32=32W 120V Dimming, Lutron® Compact SE** | ||||
|
|
| 1D42=42W 120V Dimming, Lutron® Compact SE** | ||||
*For CLW7218, CLW7226 |
| 2D26=26W 277V Dimming, Lutron® Compact SE** | |||||
**For CLW7142 only |
| 2D32=32W 277V Dimming, Lutron® Compact SE** | |||||
|
|
| 2D42=42W 277V Dimming, Lutron® Compact SE** |
PORTFOLIO™
HOUSING
7"
| CLW7218 |
| CLW7226 |
| CLW7142 |
OPTIONS | ACCESSORIES |
CP=Chicago Plenum | HB26=C Channel Bar |
EM=Emergency module | Hanger, 26” Long, Pair |
with remote test switch | HB50=C Channel Bar |
| Hanger, 50” Long, Pair |
| RMB22=Wood Joist Bar |
| Hanger, 22” Long, Pair |
| FK5=Field Installed Fuse |
| Kit, 5 Amp |
7" CFL HORIZONTAL LENS WALL WASH
|
|
| TRIM |
TRIM | FINISH | OPTIONS | Lens Wall Wash |
7491=Self Flanged | LI=Low Iridescent Clear | WF=White |
|
7493=Metal Trim Ring, | H=Haze | Painted |
|
White | WMH=Warm Haze | Flange (Self |
|
| G=Gold | Flanged |
|
| WH=Wheat | only) |
|
| W=Gloss White |
|
|
GP=Graphite |
|
| |
GPH=Graphite Haze |
|
| |
|
| ||
K=Cognac |
|
| |
|
|
| |
| KH=Cognac Haze |
|
|
Ordering Example | Housing | Trim | Accessories |
|
|
| |
Housing, Trim, Accessories and Lamps ordered as separate line items. | CLW7142EDR26 | 7493LI | HB26 |
|
|
|
|
COOPER LIGHTING 823
