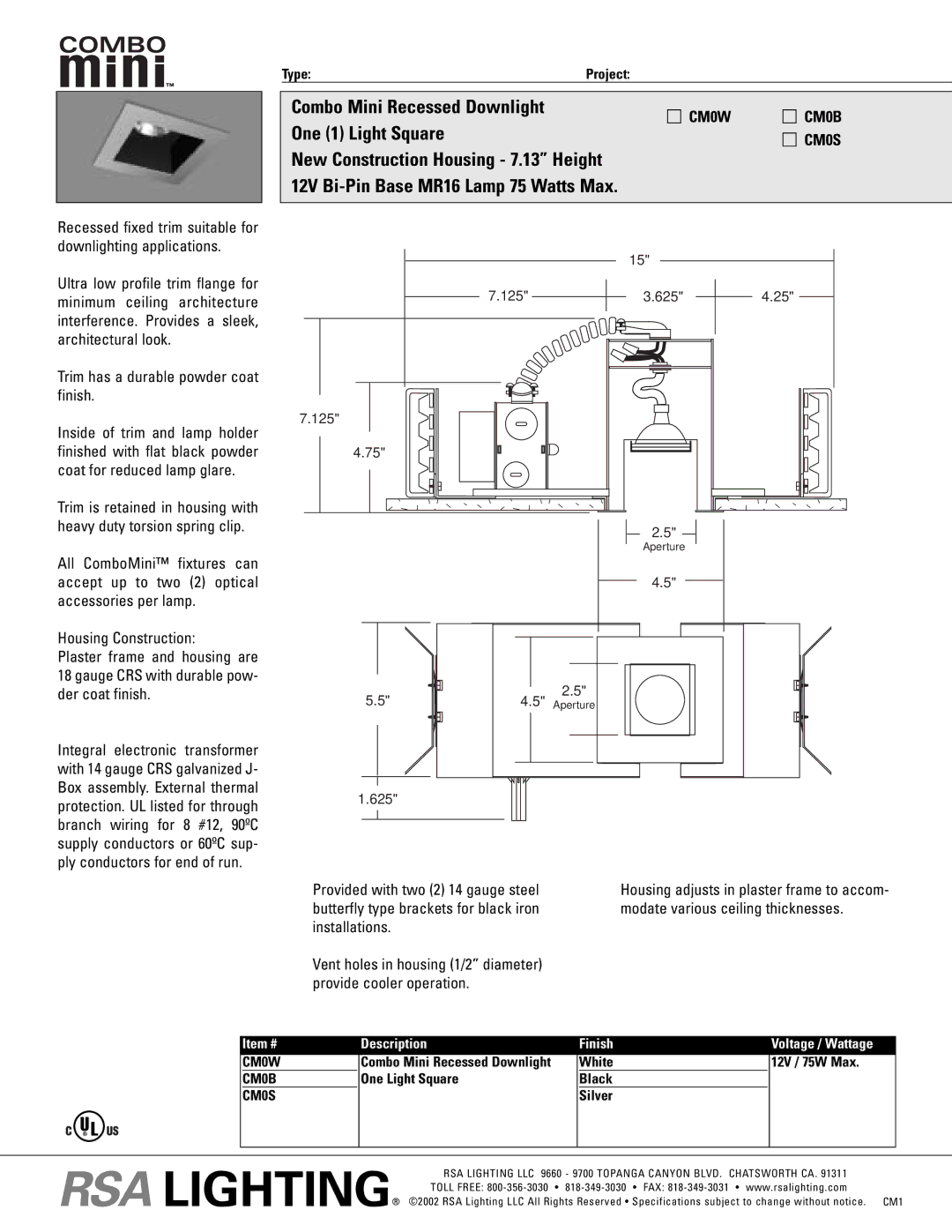

Type:Project:

Combo Mini Recessed Downlight

One (1) Light Square

New Construction Housing - 7.13” Height

12V Bi-Pin Base MR16 Lamp 75 Watts Max.

CM0W

CM0B



CM0S





Recessed fixed trim suitable for downlighting applications.

Ultra low profile trim flange for minimum ceiling architecture interference. Provides a sleek, architectural look.

Trim has a durable powder coat finish.

Inside of trim and lamp holder finished with flat black powder coat for reduced lamp glare.

Trim is retained in housing with heavy duty torsion spring clip.

All ComboMini™ fixtures can accept up to two (2) optical accessories per lamp.

Housing Construction:

Plaster frame and housing are 18 gauge CRS with durable pow- der coat finish.

Integral electronic transformer with 14 gauge CRS galvanized J- Box assembly. External thermal protection. UL listed for through branch wiring for 8 #12, 90ºC supply conductors or 60ºC sup- ply conductors for end of run.



15"



7.125"

3.625"

4.25"

7.125"





4.75"







2.5"





Aperture





4.5"



5.5"

2.5"

4.5" Aperture

1.625"

Provided with two (2) 14 gauge steel

Housing adjusts in plaster frame to accom-

butterfly type brackets for black iron

modate various ceiling thicknesses.

installations.



Vent holes in housing (1/2” diameter) provide cooler operation.

Item #

Description

Finish

Voltage / Wattage

CM0W

Combo Mini Recessed Downlight

White

12V / 75W Max.

CM0B

One Light Square

Black



CM0S



Silver











RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311 TOLL FREE: 800-356-3030818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com

©2002 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice. CM1
