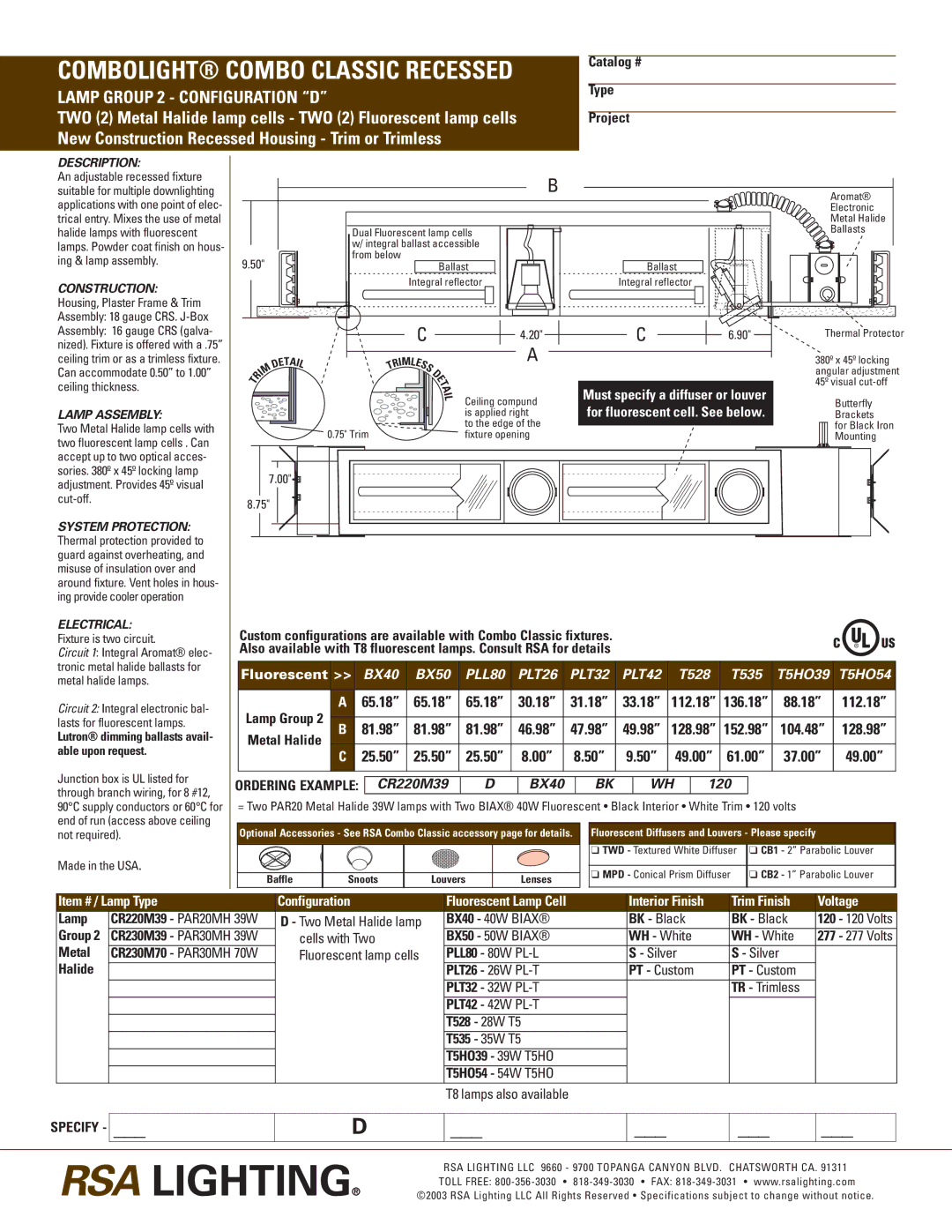

COMBOLIGHT® COMBO CLASSIC RECESSED

LAMP GROUP 2 - CONFIGURATION “D”

TWO (2) Metal Halide lamp cells - TWO (2) Fluorescent lamp cells New Construction Recessed Housing - Trim or Trimless

Catalog #

Type

Project

DESCRIPTION:

An adjustable recessed fixture suitable for multiple downlighting applications with one point of elec- trical entry. Mixes the use of metal halide lamps with fluorescent lamps. Powder coat finish on hous- ing & lamp assembly.

CONSTRUCTION: Housing, Plaster Frame & Trim Assembly: 18 gauge CRS. J-Box Assembly: 16 gauge CRS (galva- nized). Fixture is offered with a .75” ceiling trim or as a trimless fixture. Can accommodate 0.50” to 1.00” ceiling thickness.

LAMP ASSEMBLY:

Two Metal Halide lamp cells with two fluorescent lamp cells . Can accept up to two optical acces- sories. 380º x 45º locking lamp

9.50"









T









E AI

L







D









M









I







T

R















































































B

Dual Fluorescent lamp cells w/ integral ballast accessible from below

Ballast

Integral reflector

C 4.20"



IML





A

R

E





T





S











S











D











E











T











A











I











L

Ceiling compund











is applied right











to the edge of the

0.75" Trim









fixture opening

Ballast

Integral reflector

C 6.90"

Must specify a diffuser or louver for fluorescent cell. See below.

Aromat®

Electronic

Metal Halide

Ballasts

Thermal Protector

380º x 45º locking angular adjustment 45º visual cut-off

Butterfly

Brackets

for Black Iron Mounting

adjustment. Provides 45º visual cut-off.

SYSTEM PROTECTION: Thermal protection provided to guard against overheating, and misuse of insulation over and around fixture. Vent holes in hous- ing provide cooler operation

ELECTRICAL:

Fixture is two circuit.

Circuit 1: Integral Aromat® elec- tronic metal halide ballasts for metal halide lamps.

Circuit 2: Integral electronic bal- lasts for fluorescent lamps.

Lutron® dimming ballasts avail- able upon request.

Junction box is UL listed for through branch wiring, for 8 #12, 90°C supply conductors or 60°C for end of run (access above ceiling not required).

Made in the USA.

7.00"

8.75"

Custom configurations are available with Combo Classic fixtures.

Also available with T8 fluorescent lamps. Consult RSA for details

Fluorescent >> BX40 BX50 PLL80 PLT26 PLT32 PLT42 T528 T535 T5HO39 T5HO54



Lamp Group 2

A



65.18”

65.18”

65.18”

30.18”

31.18”

33.18”

112.18”

136.18”

88.18”

112.18”







































B



81.98”

81.98”

81.98”

46.98”

47.98”

49.98”

128.98”

152.98”

104.48”

128.98”



Metal Halide









































C



25.50”

25.50”

25.50”

8.00”

8.50”

9.50”



49.00”

61.00”

37.00”

49.00”











































ORDERING EXAMPLE:



































CR220M39

D

BX40



BK



WH



120







= Two PAR20 Metal Halide 39W lamps with Two BIAX® 40W Fluorescent • Black Interior • White Trim • 120 volts

Optional Accessories - See RSA Combo Classic accessory page for details.

Fluorescent Diffusers and Louvers - Please specify









TWD - Textured White Diffuser

CB1 - 2” Parabolic Louver

Baffle

Snoots

Louvers

Lenses

MPD - Conical Prism Diffuser

CB2 - 1” Parabolic Louver





Item # / Lamp Type

Configuration

Fluorescent Lamp Cell

Interior Finish

Trim Finish

Voltage

Lamp

CR220M39 - PAR20MH 39W

D - Two Metal Halide lamp

BX40 - 40W BIAX®

BK - Black

BK - Black

120 - 120 Volts

Group 2

CR230M39 - PAR30MH 39W

cells with Two

BX50 - 50W BIAX®

WH - White

WH - White

277 - 277 Volts

Metal

CR230M70 - PAR30MH 70W

Fluorescent lamp cells

PLL80 - 80W PL-L

S - Silver

S - Silver



Halide





PLT26 - 26W PL-T

PT - Custom

PT - Custom









PLT32 - 32W PL-T



TR - Trimless









PLT42 - 42W PL-T













T528 - 28W T5













T535 - 35W T5













T5HO39 - 39W T5HO













T5HO54 - 54W T5HO







SPECIFY -

___

T8 lamps also available

D



___





___





___



___























RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311

RSA LIGHTING®TOLL FREE: 800-356-3030818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com ©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.

Page 1
