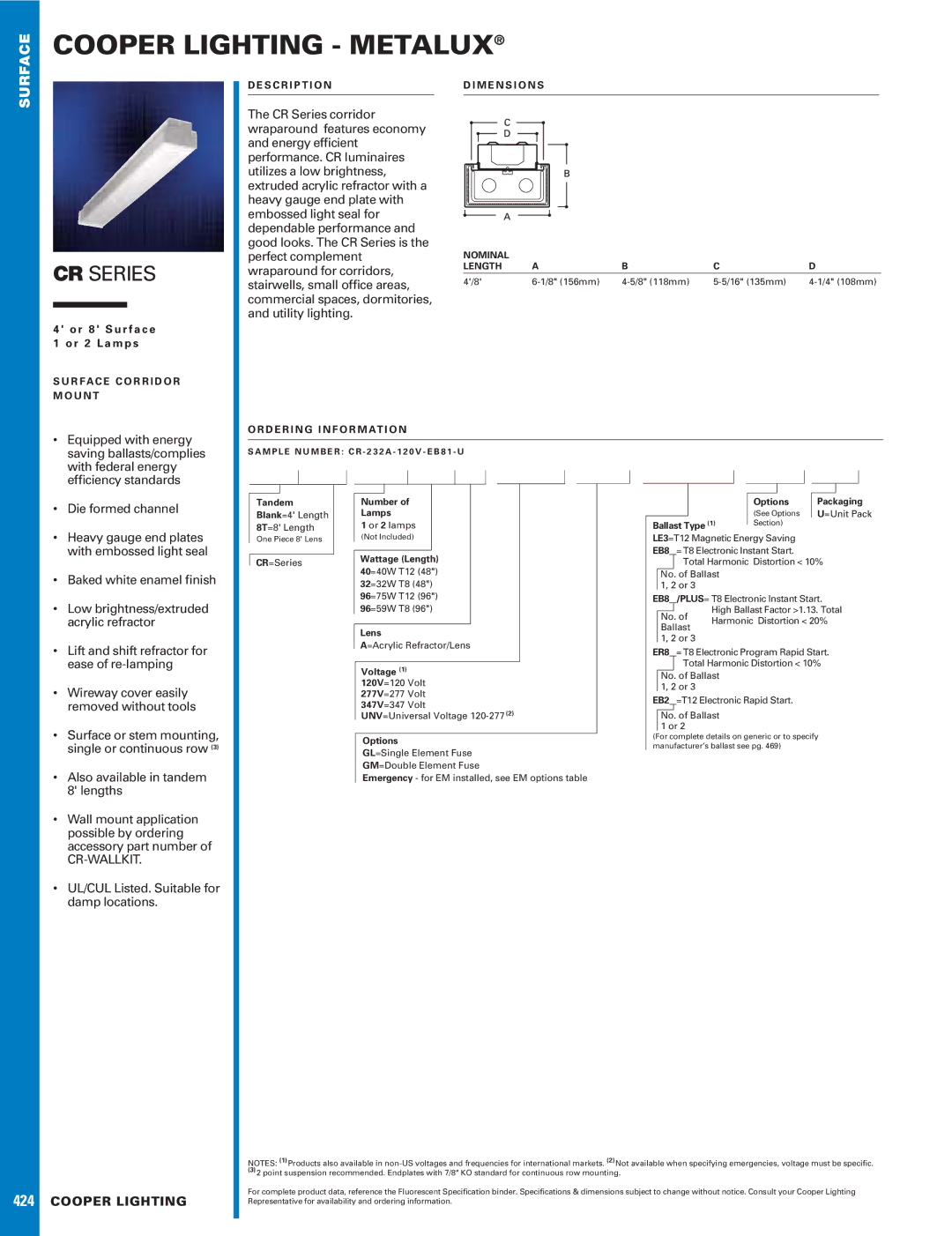

COOPER LIGHTING - METALUX®

CR SERIES

4 ' o r 8 ' S u r f a c e 1 o r 2 L a m p s

S U R FA C E C O R R I D O R M O U N T

D E S C R I P T I O N

The CR Series corridor wraparound features economy and energy efficient performance. CR luminaires utilizes a low brightness, extruded acrylic refractor with a heavy gauge end plate with embossed light seal for dependable performance and good looks. The CR Series is the perfect complement wraparound for corridors, stairwells, small office areas, commercial spaces, dormitories, and utility lighting.

D I M E N S I O N S

NOMINAL









LENGTH

A

B

C

D

4'/8'

6-1/8" (156mm)

4-5/8" (118mm)

5-5/16" (135mm)

4-1/4" (108mm)

• Equipped with energy

saving ballasts/complies

with federal energy

efficiency standards

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : C R - 2 3 2 A - 1 2 0 V - E B 8 1 - U

Die formed channel

• Heavy gauge end plates



with embossed light seal

• Baked white enamel finish

Low brightness/extruded



acrylic refractor

• Lift and shift refractor for



ease of re-lamping

Wireway cover easily



removed without tools

• Surface or stem mounting,



single or continuous row (3)

• Also available in tandem



8' lengths

Wall mount application



possible by ordering



accessory part number of



CR-WALLKIT.

• UL/CUL Listed. Suitable for



damp locations.

Tandem

Blank=4' Length 8T=8' Length

One Piece 8' Lens

CR=Series

Number of

Lamps

1 or 2 lamps

(Not Included)

Wattage (Length)

40=40W T12 (48")

32=32W T8 (48")

96=75W T12 (96")

96=59W T8 (96")

Lens

A=Acrylic Refractor/Lens

Voltage (1)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal Voltage 120-277 (2)

Options

GL=Single Element Fuse

GM=Double Element Fuse

Emergency - for EM installed, see EM options table

















Options

Packaging





(See Options

U=Unit Pack





Ballast Type (1)

Section)





LE3=T12 Magnetic Energy Saving

EB8 = T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start.







High Ballast Factor >1.13. Total

No. of

Harmonic Distortion < 20%

Ballast



1, 2 or 3



ER8 = T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

424



NOTES: (1)Products also available in non-US voltages and frequencies for international markets. (2)Not available when specifying emergencies, voltage must be specific.



(3)2 point suspension recommended. Endplates with 7/8" KO standard for continuous row mounting.

COOPER LIGHTING

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting

Representative for availability and ordering information.
