Cooper Lighting CS2165C specifications 148HO, 248HO 148T8HO 248T8HO, Construction, Electrical

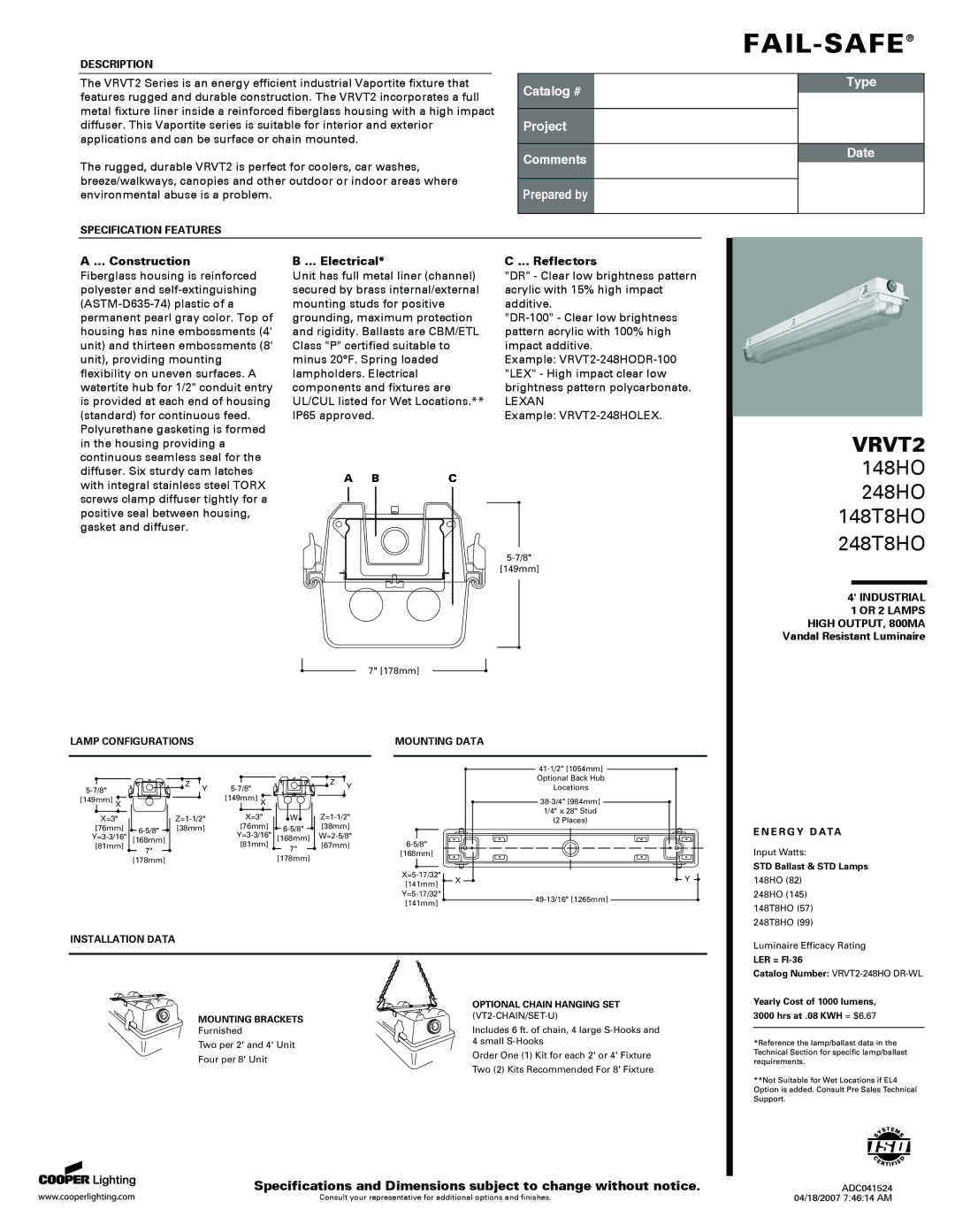

DESCRIPTION

The VRVT2 Series is an energy efficient industrial Vaportite fixture that features rugged and durable construction. The VRVT2 incorporates a full metal fixture liner inside a reinforced fiberglass housing with a high impact diffuser. This Vaportite series is suitable for interior and exterior applications and can be surface or chain mounted.

The rugged, durable VRVT2 is perfect for coolers, car washes, breeze/walkways, canopies and other outdoor or indoor areas where environmental abuse is a problem.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

FAIL-SAFE®

Type

Date

A ... Construction

Fiberglass housing is reinforced polyester and self-extinguishing (ASTM-D635-74) plastic of a permanent pearl gray color. Top of housing has nine embossments (4' unit) and thirteen embossments (8' unit), providing mounting flexibility on uneven surfaces. A watertite hub for 1/2" conduit entry is provided at each end of housing (standard) for continuous feed. Polyurethane gasketing is formed in the housing providing a continuous seamless seal for the diffuser. Six sturdy cam latches

B ... Electrical*

Unit has full metal liner (channel) secured by brass internal/external mounting studs for positive grounding, maximum protection and rigidity. Ballasts are CBM/ETL Class "P" certified suitable to minus 20°F. Spring loaded lampholders. Electrical components and fixtures are UL/CUL listed for Wet Locations.** IP65 approved.

C ... Reflectors

"DR" - Clear low brightness pattern acrylic with 15% high impact additive.

"DR-100" - Clear low brightness pattern acrylic with 100% high impact additive.

Example: VRVT2-248HODR-100 "LEX" - High impact clear low brightness pattern polycarbonate.

LEXAN

Example: VRVT2-248HOLEX.

VRVT2

148HO

with integral stainless steel TORX screws clamp diffuser tightly for a positive seal between housing, gasket and diffuser.

A B C

5-7/8" [149mm]

7" [178mm]

248HO

148T8HO

248T8HO

4' INDUSTRIAL

1 OR 2 LAMPS HIGH OUTPUT, 800MA Vandal Resistant Luminaire

LAMP CONFIGURATIONS MOUNTING DATA

5-7/8"		Z	Y	5-7/8"		Z	Y
[149mm] X				[149mm] X
X=3"		Z=1-1/2"		X=3"	W	Z=1-1/2"
[76mm]	6-5/8"	[38mm]		[76mm]	6-5/8"	[38mm]
Y=3-3/16"	[168mm]			Y=3-3/16"	[168mm]	W=2-5/8"		6-5/8"
[81mm]	7"			[81mm]	7"	[67mm]
								[168mm]
	[178mm]				[178mm]

X=5-17/32"	X
[141mm]
Y=5-17/32"
[141mm]

41-1/2" [1054mm] Optional Back Hub Locations

38-3/4" [984mm]

1/4" x 28" Stud

(2 Places)

Y

49-13/16" [1265mm]

E N E R G Y D ATA

Input Watts:

STD Ballast & STD Lamps

148HO (82) 248HO (145) 148T8HO (57) 248T8HO (99)

INSTALLATION DATA

	OPTIONAL CHAIN HANGING SET
MOUNTING BRACKETS	(VT2-CHAIN/SET-U)
	Includes 6 ft. of chain, 4 large S-Hooks and
Furnished
Two per 2' and 4' Unit	4 small S-Hooks
	Order One (1) Kit for each 2' or 4' Fixture
Four per 8' Unit
	Two (2) Kits Recommended For 8' Fixture

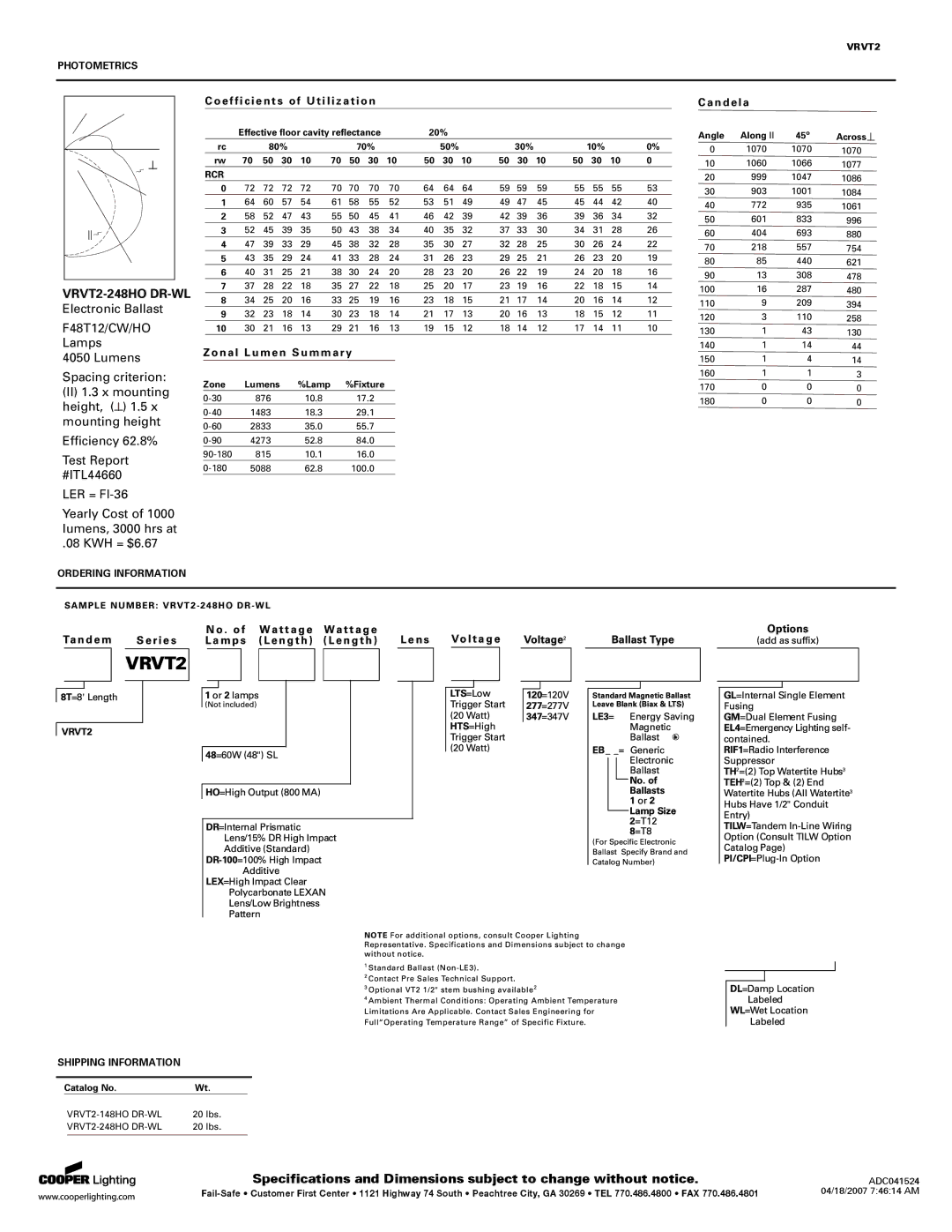

Luminaire Efficacy Rating

LER = FI-36

Catalog Number: VRVT2-248HO DR-WL

Yearly Cost of 1000 lumens, 3000 hrs at .08 KWH = $6.67

Specifications and Dimensions subject to change without notice.	ADC041524
Consult your representative for additional options and finishes.	04/18/2007 7:46:14 AM
