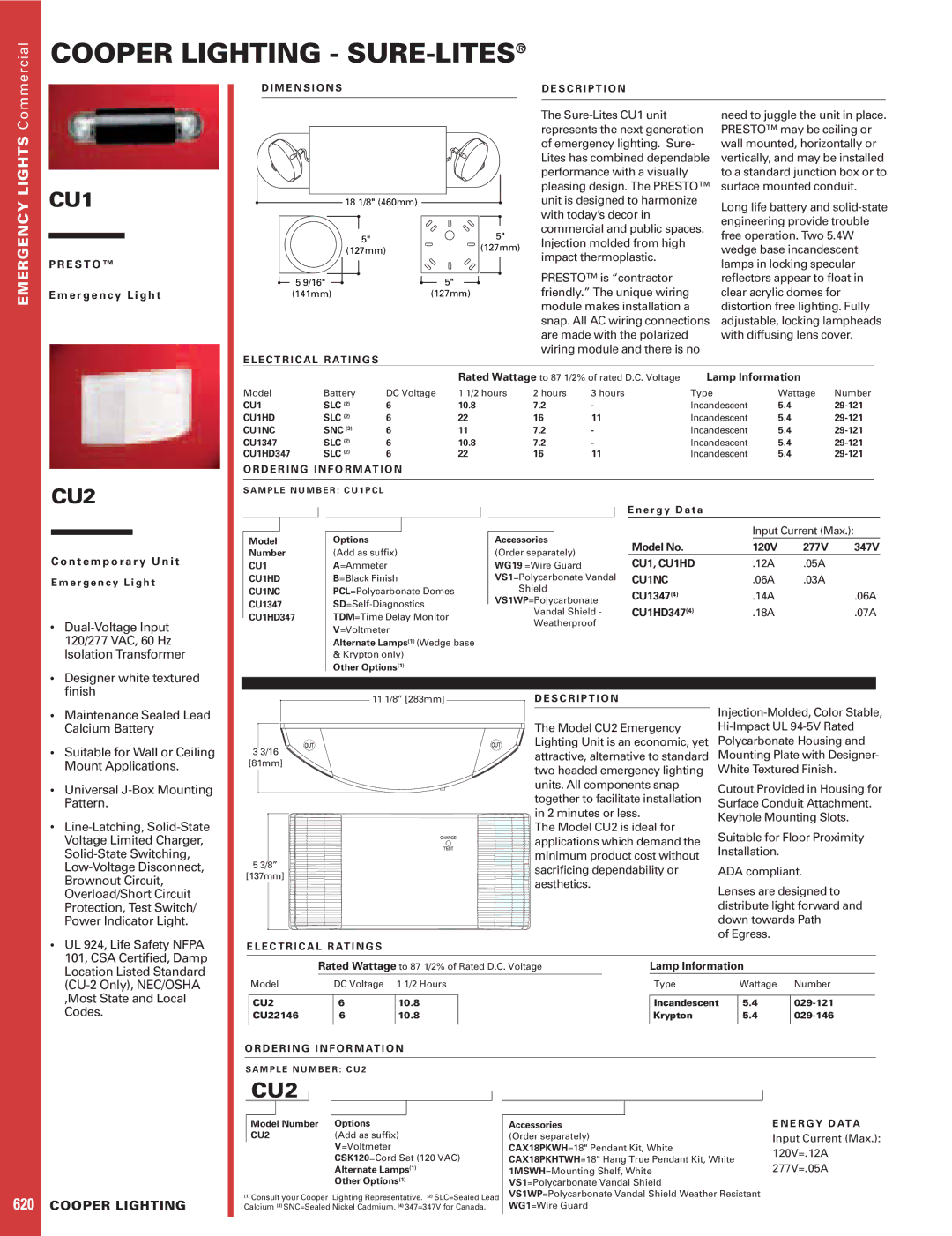

Page 1
Image 1
Commercial

Commercial

COOPER LIGHTING - SURE-LITES®

D I M E N S I O N SD E S C R I P T I O N

EMERGENCY LIGHTS

CU1

P R E S T O ™

E m e r g e n c y L i g h t



18 1/8" (460mm)





5"

5"



(127mm)



(127mm)





5 9/16"



5"

(141mm)



(127mm)

The Sure-Lites CU1 unit represents the next generation of emergency lighting. Sure- Lites has combined dependable performance with a visually pleasing design. The PRESTO™ unit is designed to harmonize with today’s decor in commercial and public spaces. Injection molded from high impact thermoplastic.

PRESTO™ is “contractor friendly.” The unique wiring module makes installation a snap. All AC wiring connections are made with the polarized wiring module and there is no

need to juggle the unit in place. PRESTO™ may be ceiling or wall mounted, horizontally or vertically, and may be installed to a standard junction box or to surface mounted conduit.

Long life battery and solid-state engineering provide trouble free operation. Two 5.4W wedge base incandescent lamps in locking specular reflectors appear to float in clear acrylic domes for distortion free lighting. Fully adjustable, locking lampheads with diffusing lens cover.

620

CU2

C o n t e m p o r a r y U n i t

E m e r g e n c y L i g h t

Dual-Voltage Input 120/277 VAC, 60 Hz Isolation Transformer

Designer white textured finish

Maintenance Sealed Lead Calcium Battery
Suitable for Wall or Ceiling Mount Applications.
Universal J-Box Mounting Pattern.

Line-Latching, Solid-State Voltage Limited Charger, Solid-State Switching, Low-Voltage Disconnect, Brownout Circuit, Overload/Short Circuit Protection, Test Switch/ Power Indicator Light.

UL 924, Life Safety NFPA 101, CSA Certified, Damp Location Listed Standard (CU-2 Only), NEC/OSHA ,Most State and Local Codes.

COOPER LIGHTING

E L E C T R I C A L R AT I N G S







Rated Wattage to 87 1/2% of rated D.C. Voltage

Lamp Information



Model

Battery

DC Voltage

1 1/2 hours

2 hours

3 hours

Type

Wattage

Number

CU1

SLC (2)

6

10.8

7.2

-

Incandescent

5.4

29-121

CU1HD

SLC (2)

6

22

16

11

Incandescent

5.4

29-121

CU1NC

SNC (3)

6

11

7.2

-

Incandescent

5.4

29-121

CU1347

SLC (2)

6

10.8

7.2

-

Incandescent

5.4

29-121

CU1HD347

SLC (2)

6

22

16

11

Incandescent

5.4

29-121

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : C U 1 P C L

E n e r g y D a t a























Input Current (Max.):







Model



Options



Accessories

Model No.

120V

277V

347V



Number



(Add as suffix)



(Order separately)







CU1, CU1HD

.12A

.05A







CU1



A=Ammeter



WG19 =Wire Guard







CU1HD



B=Black Finish



VS1=Polycarbonate Vandal

CU1NC

.06A

.03A







CU1NC



PCL=Polycarbonate Domes



Shield

CU1347(4)

.14A



.06A







VS1WP=Polycarbonate





CU1347



SD=Self-Diagnostics



Vandal Shield -

CU1HD347(4)

.18A



.07A



CU1HD347



TDM=Time Delay Monitor











Weatherproof



















V=Voltmeter















































Alternate Lamps(1) (Wedge base



























& Krypton only)



























Other Options(1)

















































































11 1/8”11 1/8"[283mm]

D E S C R I P T I O N













[283mm]





Injection-Molded, Color Stable,

















The Model CU2 Emergency

Hi-Impact UL 94-5V Rated

3 3/16





Lighting Unit is an economic, yet

Polycarbonate Housing and





attractive, alternative to standard

Mounting Plate with Designer-

[81mm]





two headed emergency lighting

White Textured Finish.













units. All components snap

Cutout Provided in Housing for







together to facilitate installation







Surface Conduit Attachment.







in 2 minutes or less.











Keyhole Mounting Slots.







The Model CU2 is ideal for







Suitable for Floor Proximity







applications which demand the







Installation.









minimum product cost without



5 3/8”















sacrificing dependability or

ADA compliant.

[137mm]









aesthetics.

















Lenses are designed to





















distribute light forward and











down towards Path

E L E C T R I C A L R AT I N G S







of Egress.

















Rated Wattage to 87 1/2% of Rated D.C. Voltage

Lamp Information



Model

DC Voltage

1 1/2 Hours



Type



Wattage

Number

CU2

6

10.8



Incandescent

5.4

029-121

CU22146

6

10.8



Krypton



5.4

029-146

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : C U 2

CU2





















E N E R G Y D ATA



Model Number

Options

Accessories



CU2

(Add as suffix)

(Order separately)

Input Current (Max.):











V=Voltmeter

CAX18PKWH=18" Pendant Kit, White

120V=.12A











CSK120=Cord Set (120 VAC)

CAX18PKHTWH=18" Hang True Pendant Kit, White











277V=.05A











Alternate Lamps(1)

1MSWH=Mounting Shelf, White











Other Options(1)

VS1=Polycarbonate Vandal Shield















(1) Consult your Cooper Lighting Representative. (2) SLC=Sealed Lead

VS1WP=Polycarbonate Vandal Shield Weather Resistant



Calcium (3) SNC=Sealed Nickel Cadmium. (4) 347=347V for Canada.

WG1=Wire Guard
