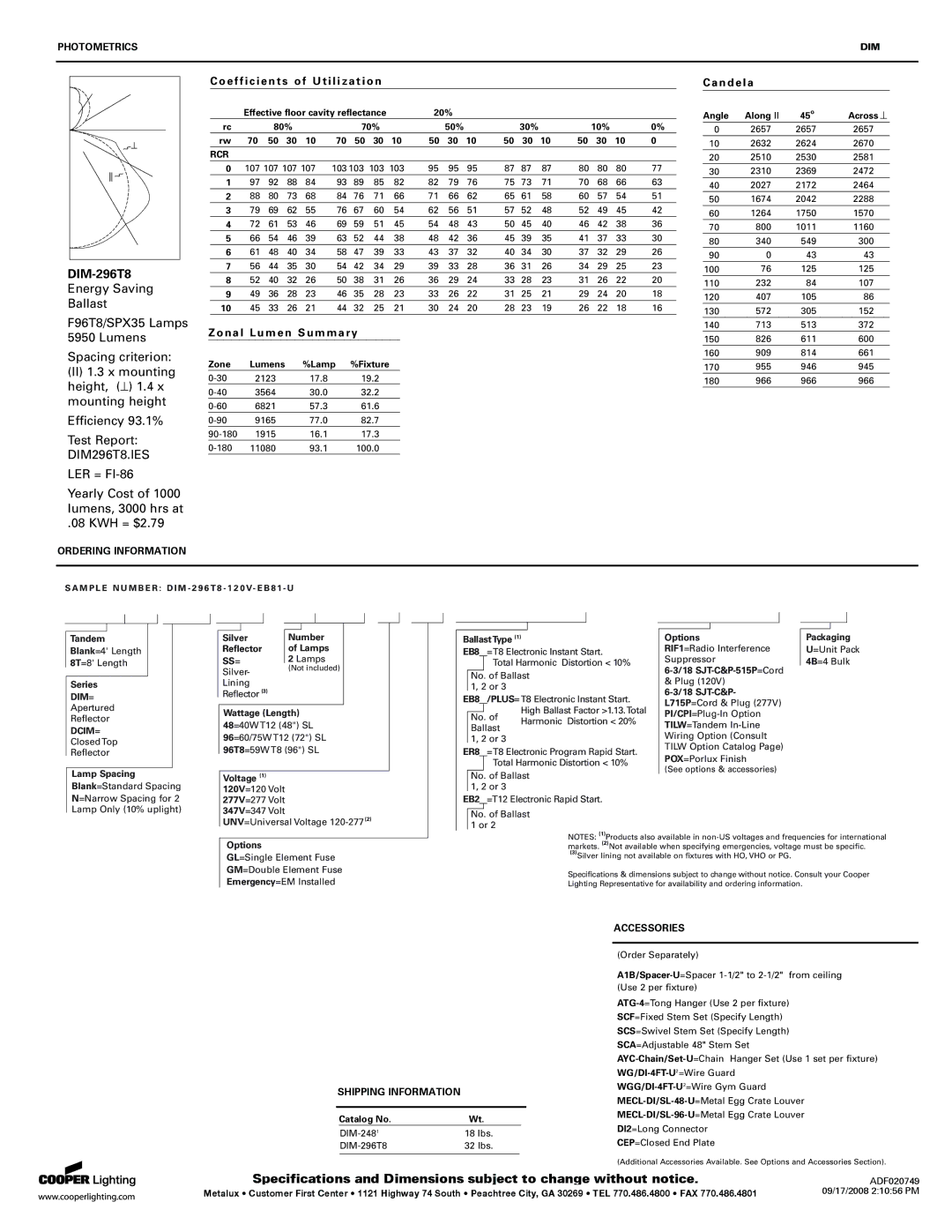

PHOTOMETRICS | DIM |
|
|
⊥
DIM-296T8 Energy Saving Ballast
F96T8/SPX35 Lamps 5950 Lumens
Spacing criterion:
(II)1.3 x mounting height, (⊥) 1.4 x mounting height
Efficiency 93.1%
Test Report:
DIM296T8.IES LER = FI-86
Yearly Cost of 1000 lumens, 3000 hrs at
.08 KWH = $2.79
ORDERING INFORMATION
Coefficients of Utilization
| Effective floor cavity reflectance |
| 20% |
|
|
|
|
|
|
|
| |||||||
rc |
| 80% |
|
| 70% |
|
| 50% |
|
| 30% |
|
| 10% |
| 0% | ||
rw | 70 | 50 | 30 | 10 | 70 | 50 | 30 | 10 | 50 | 30 | 10 | 50 | 30 | 10 | 50 | 30 | 10 | 0 |
RCR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 | 107 | 107 | 107 | 107 | 103 | 103 | 103 | 103 | 95 | 95 | 95 | 87 | 87 | 87 | 80 | 80 | 80 | 77 |
1 | 97 | 92 | 88 | 84 | 93 | 89 | 85 | 82 | 82 | 79 | 76 | 75 | 73 | 71 | 70 | 68 | 66 | 63 |
2 | 88 | 80 | 73 | 68 | 84 | 76 | 71 | 66 | 71 | 66 | 62 | 65 | 61 | 58 | 60 | 57 | 54 | 51 |
3 | 79 | 69 | 62 | 55 | 76 | 67 | 60 | 54 | 62 | 56 | 51 | 57 | 52 | 48 | 52 | 49 | 45 | 42 |
4 | 72 | 61 | 53 | 46 | 69 | 59 | 51 | 45 | 54 | 48 | 43 | 50 | 45 | 40 | 46 | 42 | 38 | 36 |
5 | 66 | 54 | 46 | 39 | 63 | 52 | 44 | 38 | 48 | 42 | 36 | 45 | 39 | 35 | 41 | 37 | 33 | 30 |
6 | 61 | 48 | 40 | 34 | 58 | 47 | 39 | 33 | 43 | 37 | 32 | 40 | 34 | 30 | 37 | 32 | 29 | 26 |
7 | 56 | 44 | 35 | 30 | 54 | 42 | 34 | 29 | 39 | 33 | 28 | 36 | 31 | 26 | 34 | 29 | 25 | 23 |
8 | 52 | 40 | 32 | 26 | 50 | 38 | 31 | 26 | 36 | 29 | 24 | 33 | 28 | 23 | 31 | 26 | 22 | 20 |
9 | 49 | 36 | 28 | 23 | 46 | 35 | 28 | 23 | 33 | 26 | 22 | 31 | 25 | 21 | 29 | 24 | 20 | 18 |
10 | 45 | 33 | 26 | 21 | 44 | 32 | 25 | 21 | 30 | 24 | 20 | 28 | 23 | 19 | 26 | 22 | 18 | 16 |
Zonal Lumen Summary
Zone | Lumens | %Lamp | %Fixture |
2123 | 17.8 | 19.2 | |
3564 | 30.0 | 32.2 | |
6821 | 57.3 | 61.6 | |
9165 | 77.0 | 82.7 | |
1915 | 16.1 | 17.3 | |
11080 | 93.1 | 100.0 |
C a n d e l a
Angle | Along II | 45o | Across ⊥ |
0 | 2657 | 2657 | 2657 |
10 | 2632 | 2624 | 2670 |
20 | 2510 | 2530 | 2581 |
30 | 2310 | 2369 | 2472 |
40 | 2027 | 2172 | 2464 |
50 | 1674 | 2042 | 2288 |
60 | 1264 | 1750 | 1570 |
70 | 800 | 1011 | 1160 |
80 | 340 | 549 | 300 |
90 | 0 | 43 | 43 |
100 | 76 | 125 | 125 |
110 | 232 | 84 | 107 |
120 | 407 | 105 | 86 |
130 | 572 | 305 | 152 |
140 | 713 | 513 | 372 |
150 | 826 | 611 | 600 |
160 | 909 | 814 | 661 |
170 | 955 | 946 | 945 |
180 | 966 | 966 | 966 |
S A M P L E N U M B E R : D I M - 2 9 6 T 8 - 1 2 0 V- E B 8 1- U
Tandem
Blank=4' Length
8T=8' Length
Series
DIM=
Apertured
Reflector
DCIM=
Closed Top
Reflector
Lamp Spacing
Blank=Standard Spacing
N=Narrow Spacing for 2 Lamp Only (10% uplight)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Silver | Number |
| |||||
Reflector | of Lamps |
| |||||
SS= | 2 Lamps |
| |||||
Silver- | (Not included) |
| |||||
|
|
|
| ||||
Lining |
|
|
|
| |||
Reflector (3) |
|
|
|
| |||
|
|
|
|
|
|
|
|
Wattage (Length)
48=40W T12 (48") SL
96=60/75W T12 (72") SL
96T8=59W T8 (96") SL
Voltage (1)
120V=120 Volt
277V=277 Volt
347V=347 Volt
UNV=Universal Voltage
BallastType (1)
EB8 =T8 Electronic Instant Start.
Total Harmonic Distortion < 10%
No. of Ballast 1, 2 or 3
EB8 /PLUS=T8 Electronic Instant Start.
|
|
|
| High Ballast Factor >1.13.Total | |
No. of | Harmonic Distortion < 20% | ||||
Ballast | |||||
| |||||
1, 2 or 3 |
|
ER8 =T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%
No. of Ballast 1, 2 or 3
EB2 =T12 Electronic Rapid Start.
No. of Ballast 1 or 2
Options
RIF1=Radio Interference Suppressor
& Plug (120V)
L715P=Cord & Plug (277V)
TILW=Tandem
Wiring Option (Consult
TILW Option Catalog Page)
POX=Porlux Finish
(See options & accessories)
Packaging
U=Unit Pack
4B=4 Bulk
Options
GL=Single Element Fuse
GM=Double Element Fuse
Emergency=EM Installed
NOTES: (1)Products also available in
(3)Silver lining not available on fixtures with HO, VHO or PG.
Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.
SHIPPING INFORMATION
Catalog No. | Wt. |
|
18 lbs. |
| |
32 lbs. |
| |
|
|
|
ACCESSORIES
(Order Separately)
CEP=Closed End Plate
(Additional Accessories Available. See Options and Accessories Section).
Specifications and Dimensions subject to change without notice. | ADF020749 |
Metalux • Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • TEL 770.486.4800 • FAX 770.486.4801 | 09/17/2008 2:10:56 PM |
