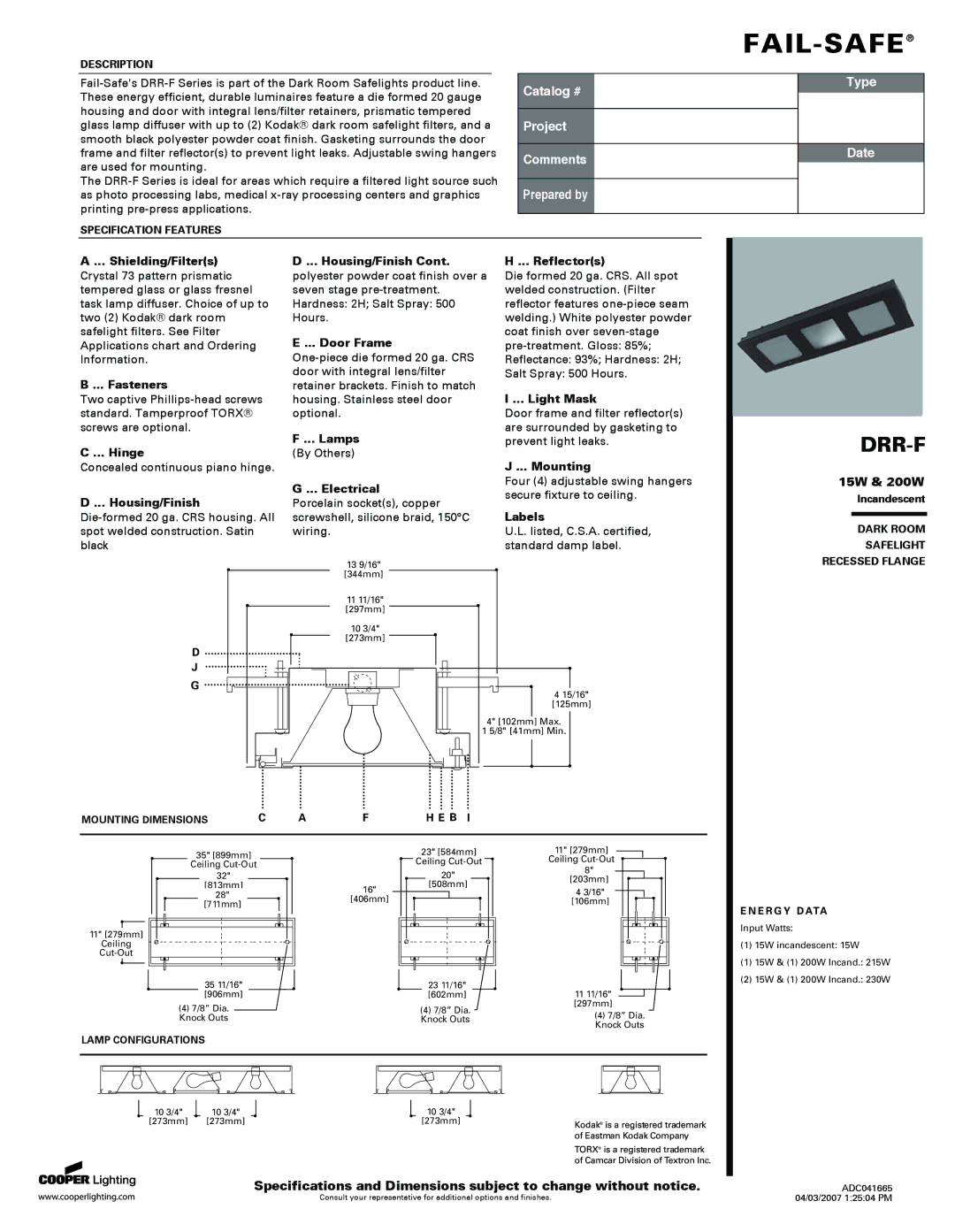

DESCRIPTION

Fail-Safe's DRR-F Series is part of the Dark Room Safelights product line. These energy efficient, durable luminaires feature a die formed 20 gauge housing and door with integral lens/filter retainers, prismatic tempered glass lamp diffuser with up to (2) Kodak® dark room safelight filters, and a smooth black polyester powder coat finish. Gasketing surrounds the door frame and filter reflector(s) to prevent light leaks. Adjustable swing hangers are used for mounting.

The DRR-F Series is ideal for areas which require a filtered light source such as photo processing labs, medical x-ray processing centers and graphics printing pre-press applications.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

FAIL-SAFE®

Type

Date

A ... Shielding/Filter(s)

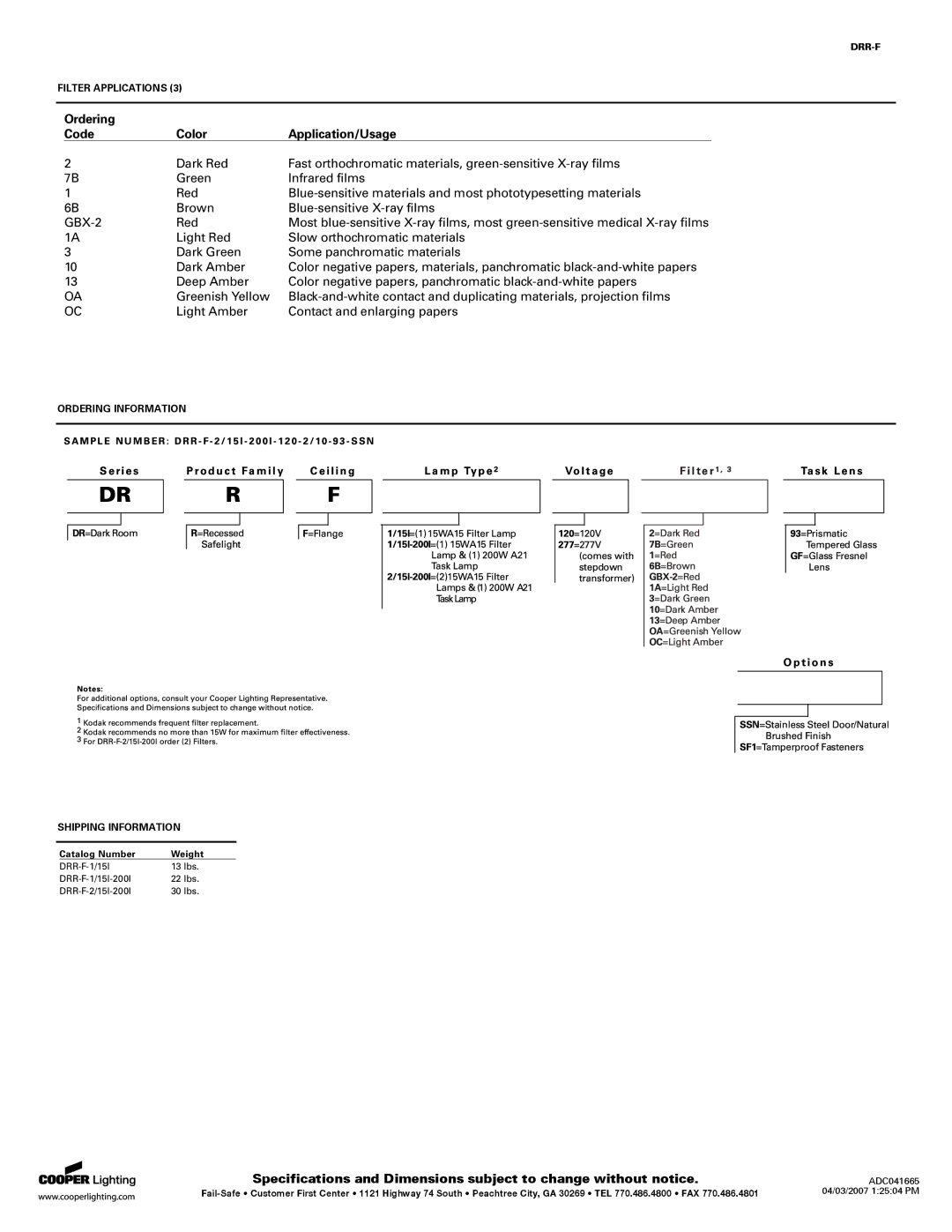

Crystal 73 pattern prismatic tempered glass or glass fresnel task lamp diffuser. Choice of up to two (2) Kodak® dark room safelight filters. See Filter Applications chart and Ordering Information.

B ... Fasteners

Two captive Phillips-head screws standard. Tamperproof TORX® screws are optional.

C ... Hinge

Concealed continuous piano hinge.

D ... Housing/Finish

Die-formed 20 ga. CRS housing. All spot welded construction. Satin black

D ... Housing/Finish Cont.

polyester powder coat finish over a seven stage pre-treatment. Hardness: 2H; Salt Spray: 500 Hours.

E ... Door Frame

One-piece die formed 20 ga. CRS door with integral lens/filter retainer brackets. Finish to match housing. Stainless steel door optional.

F ... Lamps

(By Others)

G ... Electrical

Porcelain socket(s), copper screwshell, silicone braid, 150°C wiring.

139/16"

[344mm]

11 11/16" [297mm]

10 3/4"

[273mm]

H ... Reflector(s)

Die formed 20 ga. CRS. All spot welded construction. (Filter reflector features one-piece seam welding.) White polyester powder coat finish over seven-stage pre-treatment. Gloss: 85%; Reflectance: 93%; Hardness: 2H; Salt Spray: 500 Hours.

I ... Light Mask

Door frame and filter reflector(s) are surrounded by gasketing to prevent light leaks.

J ... Mounting

Four (4) adjustable swing hangers secure fixture to ceiling.

Labels

U.L. listed, C.S.A. certified, standard damp label.

DRR-F

15W & 200W

Incandescent

DARK ROOM

SAFELIGHT RECESSED FLANGE

D

J

G

4 15/16" [125mm]

4" [102mm] Max.

1 5/8" [41mm] Min.

MOUNTING DIMENSIONS

C

A

F

H E B I



35" [899mm]







23" [584mm]

11" [279mm]







Ceiling Cut-Out

Ceiling Cut-Out

Ceiling Cut-Out













20"

8"

32"













[203mm]

[813mm]





16"

[508mm]





4 3/16"

28"











[406mm]



[106mm]

[711mm]

















11" [279mm]











Ceiling











Cut-Out











35 11/16"







23 11/16"



[906mm]







[602mm]

11 11/16"

(4) 7/8” Dia.







(4) 7/8” Dia.

[297mm]







(4) 7/8” Dia.

Knock Outs







Knock Outs











Knock Outs

LAMP CONFIGURATIONS

E N E RG Y DATA

Input Watts:

(1) 15W incandescent: 15W

(1)15W & (1) 200W Incand.: 215W

(2)15W & (1) 200W Incand.: 230W

10 3/4"

10 3/4"

10 3/4"

[273mm]

[273mm]

[273mm]

Specifications and Dimensions subject to change without notice.

ADC041665

Consult your representative for additional options and finishes.

04/03/2007 1:25:04 PM

Page 1
