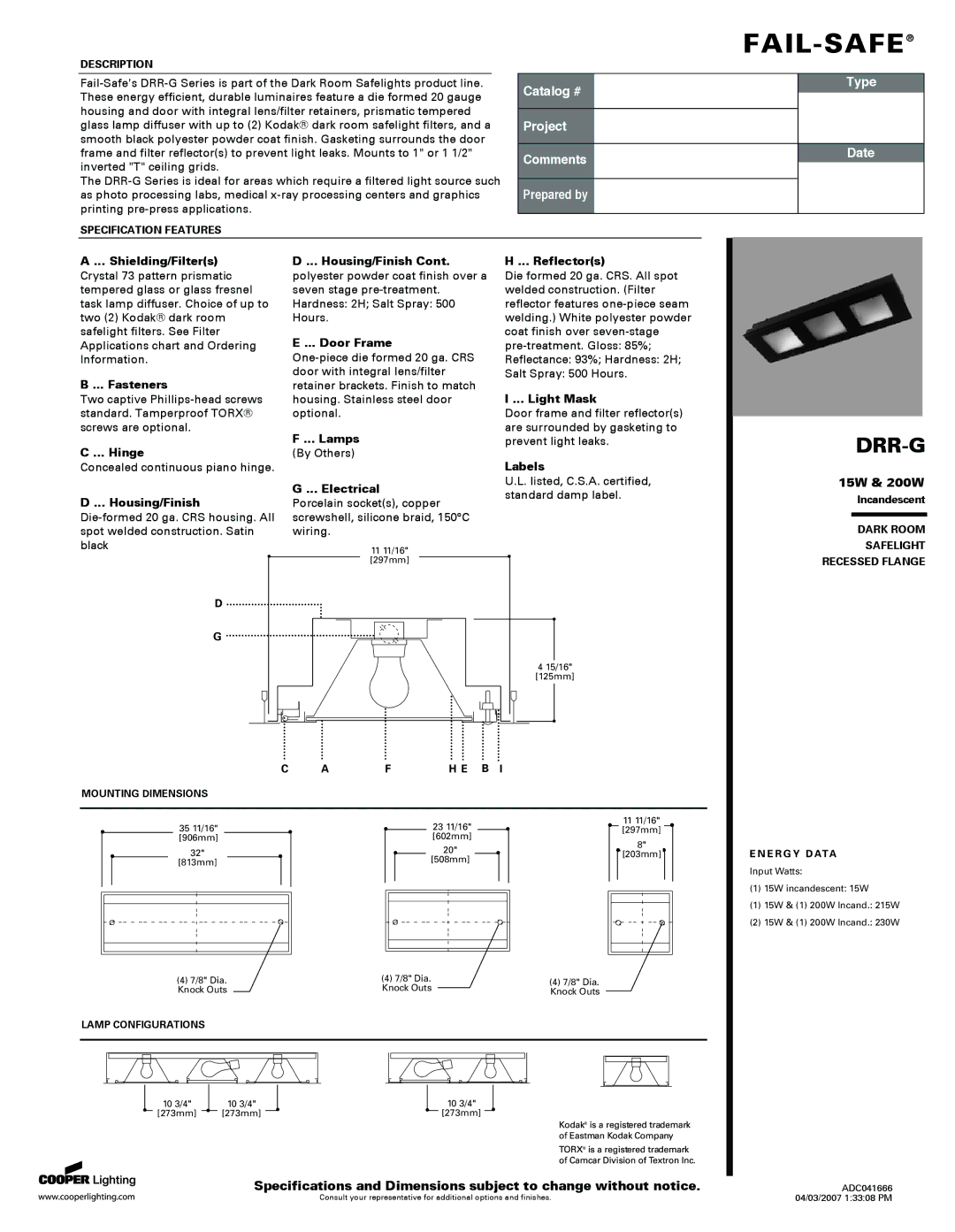

DESCRIPTION
The
SPECIFICATION FEATURES
Catalog #
Project
Comments
Prepared byFAIL-SAFE®
TypeDateA ... Shielding/Filter(s)

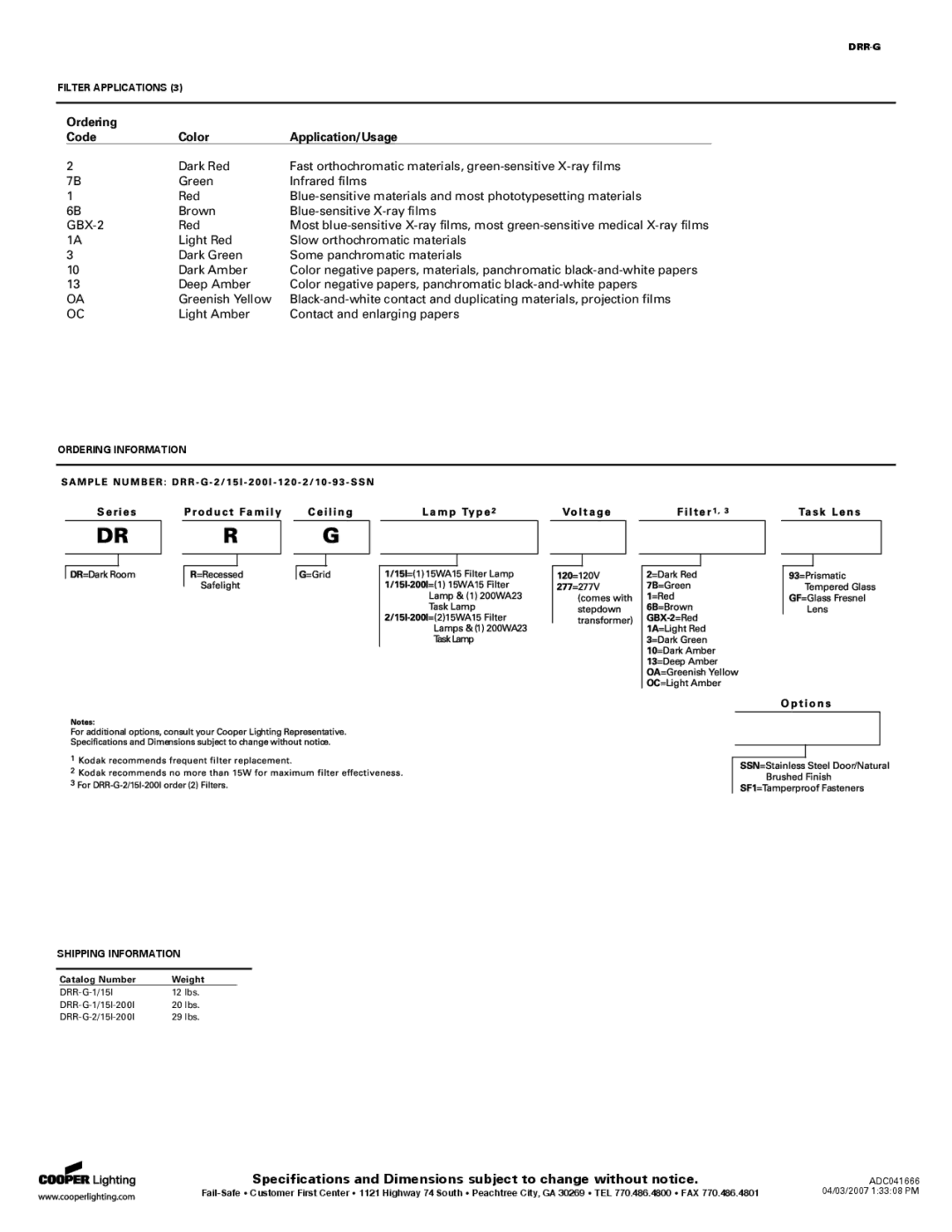

Crystal 73 pattern prismatic tempered glass or glass fresnel task lamp diffuser. Choice of up to two (2) Kodak® dark room safelight filters. See Filter Applications chart and Ordering Information.
B ... Fasteners
Two captive
C ... Hinge
Concealed continuous piano hinge.
D ... Housing/Finish
D
G
D ... Housing/Finish Cont.
polyester powder coat finish over a seven stage
E ... Door Frame
F ... Lamps
(By Others)
G ... Electrical
Porcelain socket(s), copper screwshell, silicone braid, 150°C wiring.
1111/16"
[297mm]
H ... Reflector(s)
Die formed 20 ga. CRS. All spot welded construction. (Filter reflector features
I ... Light Mask
Door frame and filter reflector(s) are surrounded by gasketing to prevent light leaks.
Labels
U.L. listed, C.S.A. certified, standard damp label.
415/16"
[125mm]
DRR-G
15W & 200W
Incandescent
DARK ROOM
SAFELIGHT RECESSED FLANGE
C A F H E B I
MOUNTING DIMENSIONS
35 11/16" | 23 11/16" | 11 11/16" | |
[297mm] | |||
[906mm] | [602mm] | 8" | |
32" | 20" | ||
[203mm] | |||
[508mm] | |||
[813mm] |
| ||
|
|
E N E RG Y DATA
Input Watts:
(1) 15W incandescent: 15W
(1)15W & (1) 200W Incand.: 215W
(2)15W & (1) 200W Incand.: 230W
(4) 7/8" Dia. | (4) 7/8" Dia. | (4) 7/8" Dia. |
Knock Outs | Knock Outs | Knock Outs |
LAMP CONFIGURATIONS
103/4"
[273mm]
10 3/4" | 10 3/4" |
[273mm] | [273mm] |
Specifications and Dimensions subject to change without notice. | ADC041666 |
Consult your representative for additional options and finishes. | 04/03/2007 1:33:08 PM |
