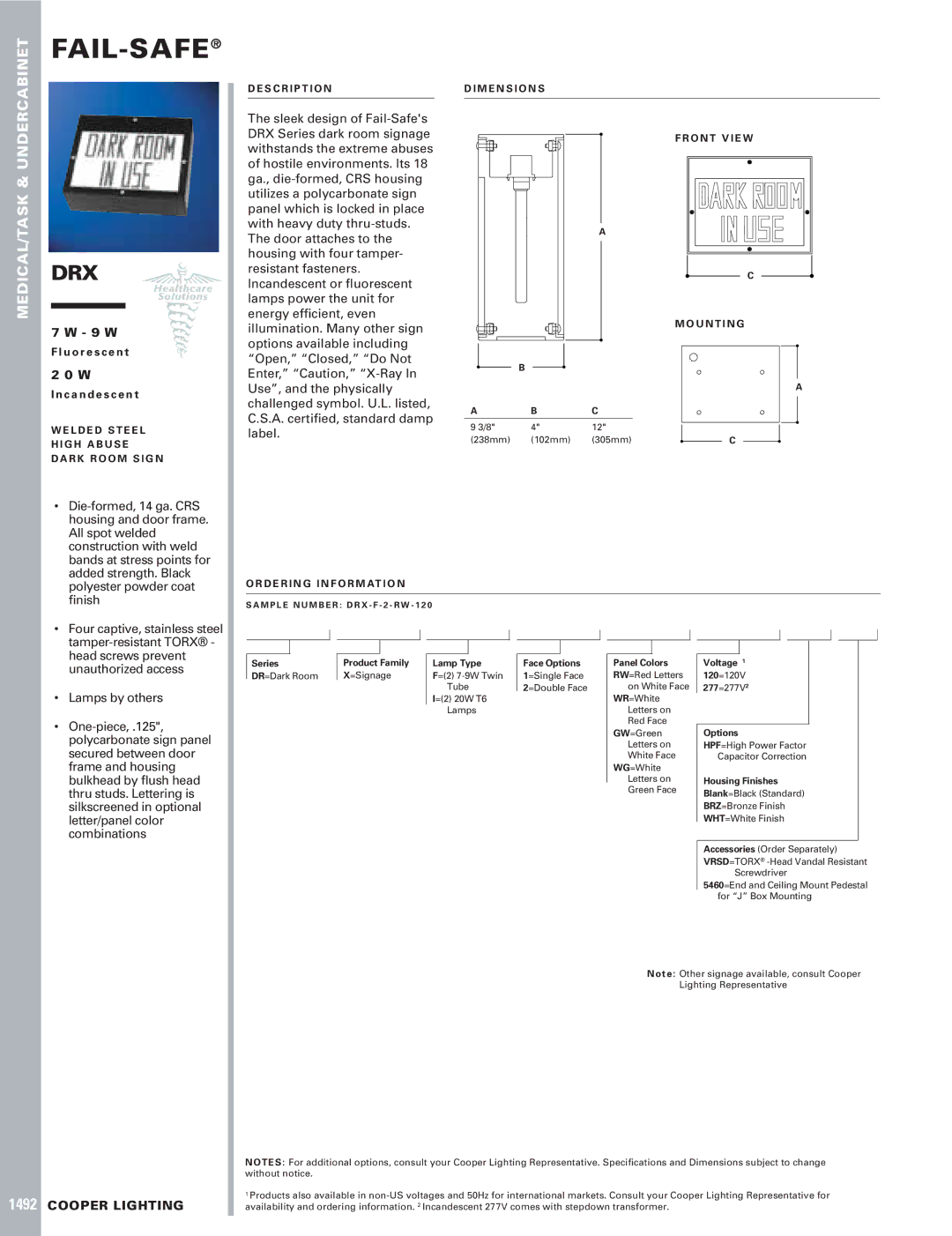

Cooper Lighting DRX dimensions

COOPER LIGHTING
DRX
7W-9W
Fluorescent
20W
Incandescent
WELDED STEEL
HIGH ABUSE
DARK ROOM SIGN
FAIL-SAFE®
MEDICAL/TASK & UNDERCABINET
• Die-formed, 14 ga. CRS
housing and door frame.
All spot welded
construction with weld
bands at stress points for
added strength. Black
polyester powder coat
finish
• Four captive, stainless steel
tamper-resistant TORX® -
head screws prevent
unauthorized access
• Lamps by others
• One-piece, .125",
polycarbonate sign panel
secured between door
frame and housing
bulkhead by flush head
thru studs. Lettering is
silkscreened in optional
letter/panel color
combinations
DIMENSIONSDESCRIPTION
The sleek design of Fail-Safe's
DRX Series dark room signage
withstands the extreme abuses
of hostile environments. Its 18
ga., die-formed, CRS housing
utilizes a polycarbonate sign
panel which is locked in place
with heavy duty thru-studs.
The door attaches to the
housing with four tamper-
resistant fasteners.
Incandescent or fluorescent
lamps power the unit for
energy efficient, even
illumination. Many other sign
options available including
“Open,” “Closed,” “Do Not
Enter,” “Caution,” “X-Ray In
Use”, and the physically
challenged symbol. U.L. listed,
C.S.A. certified, standard damp
label.
C
A
B
ABC
9 3/8" 4" 12"
(238mm) (102mm) (305mm)
MOUNTING
A
C
B
FRONT VIEW
C
A
C
A
ORDERING INFORMATION
SAMPLE NUMBER: DRX-F-2-RW-120
NOTES: For additional options, consult your Cooper Lighting Representative. Specifications and Dimensions subject to change
without notice.
1Products also available in non-US voltages and 50Hz for international markets. Consult your Cooper Lighting Representative for
availability and ordering information. 2Incandescent 277V comes with stepdown transformer.
Series
DR=Dark Room
Product Family
X=Signage
Lamp Type
F=(2) 7-9W Twin
Tube
I=(2) 20W T6
Lamps
Face Options
1=Single Face
2=Double Face
Panel Colors
RW=Red Letters
on White Face
WR=White
Letters on
Red Face
GW=Green
Letters on
White Face
WG=White
Letters on
Green Face
Voltage 1
120=120V
277=277V2
Options
HPF=High Power Factor
Capacitor Correction
Housing Finishes
Blank=Black (Standard)
BRZ=Bronze Finish
WHT=White Finish
Accessories (Order Separately)
VRSD=TORX®-Head Vandal Resistant
Screwdriver
5460=End and Ceiling Mount Pedestal
for “J” Box Mounting
Note: Other signage available, consult Cooper
Lighting Representative
1492
