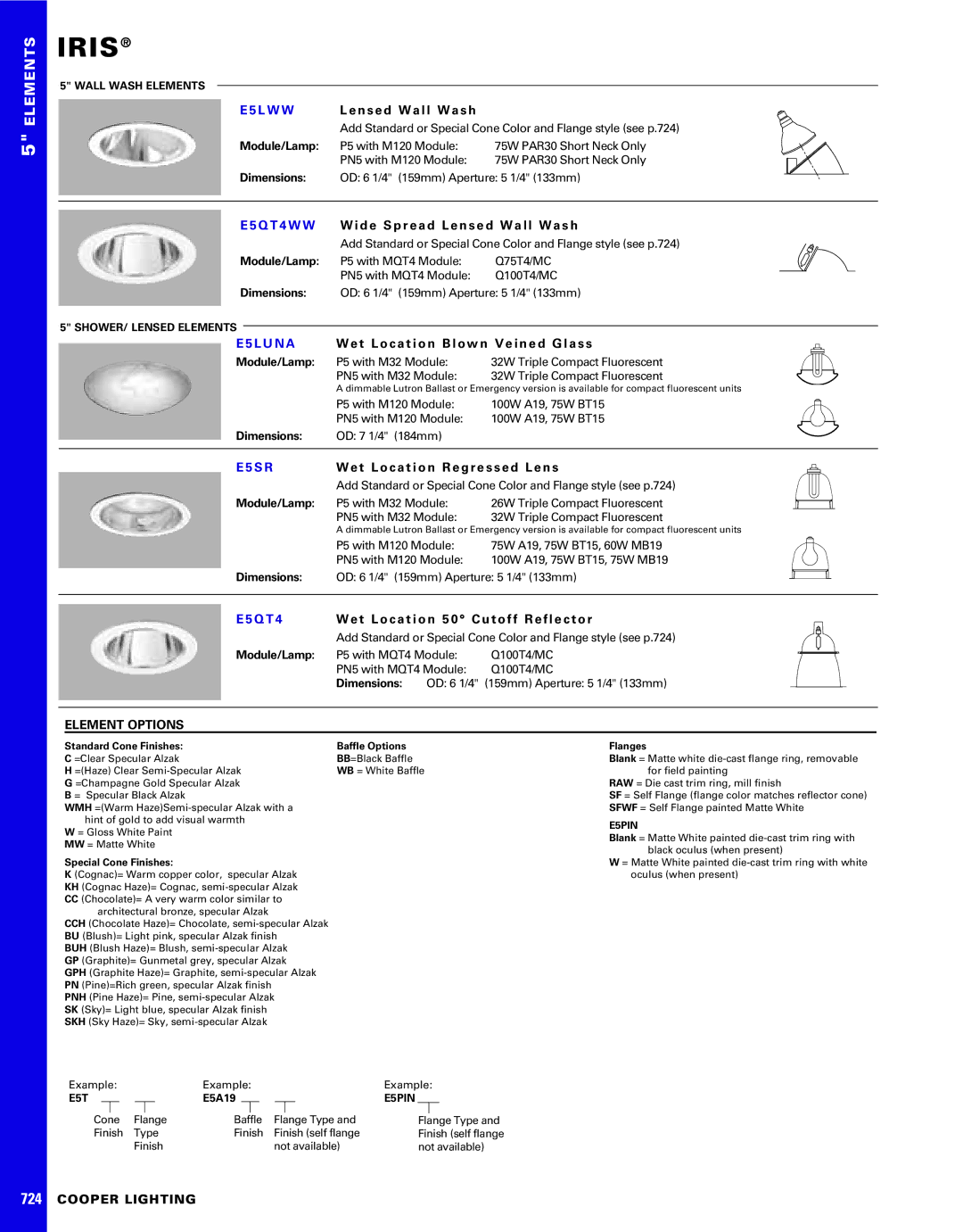

Page 1
Image 1
5" ELEMENTS

5" ELEMENTS

IRIS®

5" WALL WASH ELEMENTS



E5LWW

Lensed Wall Wash











Add Standard or Special Cone Color and Flange style (see p.724)



Module/Lamp:

P5 with M120 Module:

75W PAR30 Short Neck Only



Dimensions:

PN5 with M120 Module:

75W PAR30 Short Neck Only











OD: 6 1/4" (159mm) Aperture: 5 1/4" (133mm)































E5QT4WW

Wide Spread Lensed Wall Wash



Add Standard or Special Cone Color and Flange style (see p.724)

Module/Lamp:

P5 with MQT4 Module:

Q75T4/MC



PN5 with MQT4 Module:

Q100T4/MC

Dimensions:

OD: 6 1/4" (159mm) Aperture: 5 1/4" (133mm)

5" SHOWER/ LENSED ELEMENTS

E 5 L U N A Wet Location Blown Veined Glass

Module/Lamp: P5 with M32 Module:

32W Triple Compact Fluorescent

PN5 with M32 Module:

32W Triple Compact Fluorescent

A dimmable Lutron Ballast or Emergency version is available for compact fluorescent units



P5 with M120 Module:

100W A19, 75W BT15

Dimensions:

PN5 with M120 Module:

100W A19, 75W BT15











OD: 7 1/4" (184mm)































E5SR

Wet Location Regressed Lens





Add Standard or Special Cone Color and Flange style (see p.724)



Module/Lamp:

P5 with M32 Module:

26W Triple Compact Fluorescent





PN5 with M32 Module:

32W Triple Compact Fluorescent





A dimmable Lutron Ballast or Emergency version is available for compact fluorescent units





P5 with M120 Module:

75W A19, 75W BT15, 60W MB19





PN5 with M120 Module:

100W A19, 75W BT15, 75W MB19



Dimensions:

OD: 6 1/4" (159mm) Aperture: 5 1/4" (133mm)









E5QT4

Wet Location 50° Cutoff Reflector



Add Standard or Special Cone Color and Flange style (see p.724)



Module/Lamp:

P5 with MQT4 Module:

Q100T4/MC











PN5 with MQT4 Module:

Q100T4/MC





Dimensions:

OD: 6 1/4" (159mm) Aperture: 5 1/4" (133mm)











































ELEMENT OPTIONS



















Standard Cone Finishes:

Baffle Options



Flanges



C =Clear Specular Alzak

BB=Black Baffle



Blank = Matte white die-cast flange ring, removable



H =(Haze) Clear Semi-Specular Alzak

WB = White Baffle



for field painting



G =Champagne Gold Specular Alzak





RAW = Die cast trim ring, mill finish



B = Specular Black Alzak





SF = Self Flange (flange color matches reflector cone)



WMH =(Warm Haze)Semi-specular Alzak with a





SFWF = Self Flange painted Matte White



hint of gold to add visual warmth





E5PIN



W = Gloss White Paint











Blank = Matte White painted die-cast trim ring with



MW = Matte White











black oculus (when present)











Special Cone Finishes:





W = Matte White painted die-cast trim ring with white



K (Cognac)= Warm copper color, specular Alzak





oculus (when present)



KH (Cognac Haze)= Cognac, semi-specular Alzak

















CC(Chocolate)= A very warm color similar to architectural bronze, specular Alzak

CCH (Chocolate Haze)= Chocolate, semi-specular Alzak

BU (Blush)= Light pink, specular Alzak finish

BUH (Blush Haze)= Blush, semi-specular Alzak

GP (Graphite)= Gunmetal grey, specular Alzak

GPH (Graphite Haze)= Graphite, semi-specular Alzak

PN (Pine)=Rich green, specular Alzak finish

PNH (Pine Haze)= Pine, semi-specular Alzak

SK (Sky)= Light blue, specular Alzak finish

SKH (Sky Haze)= Sky, semi-specular Alzak

Example:







Example:







Example:

E5T













E5A19













E5PIN





































Cone

Flange

Baffle

Flange Type and



Flange Type and

Finish

Type

Finish

Finish (self flange



Finish (self flange









Finish









not available)



not available)

724COOPER LIGHTING
