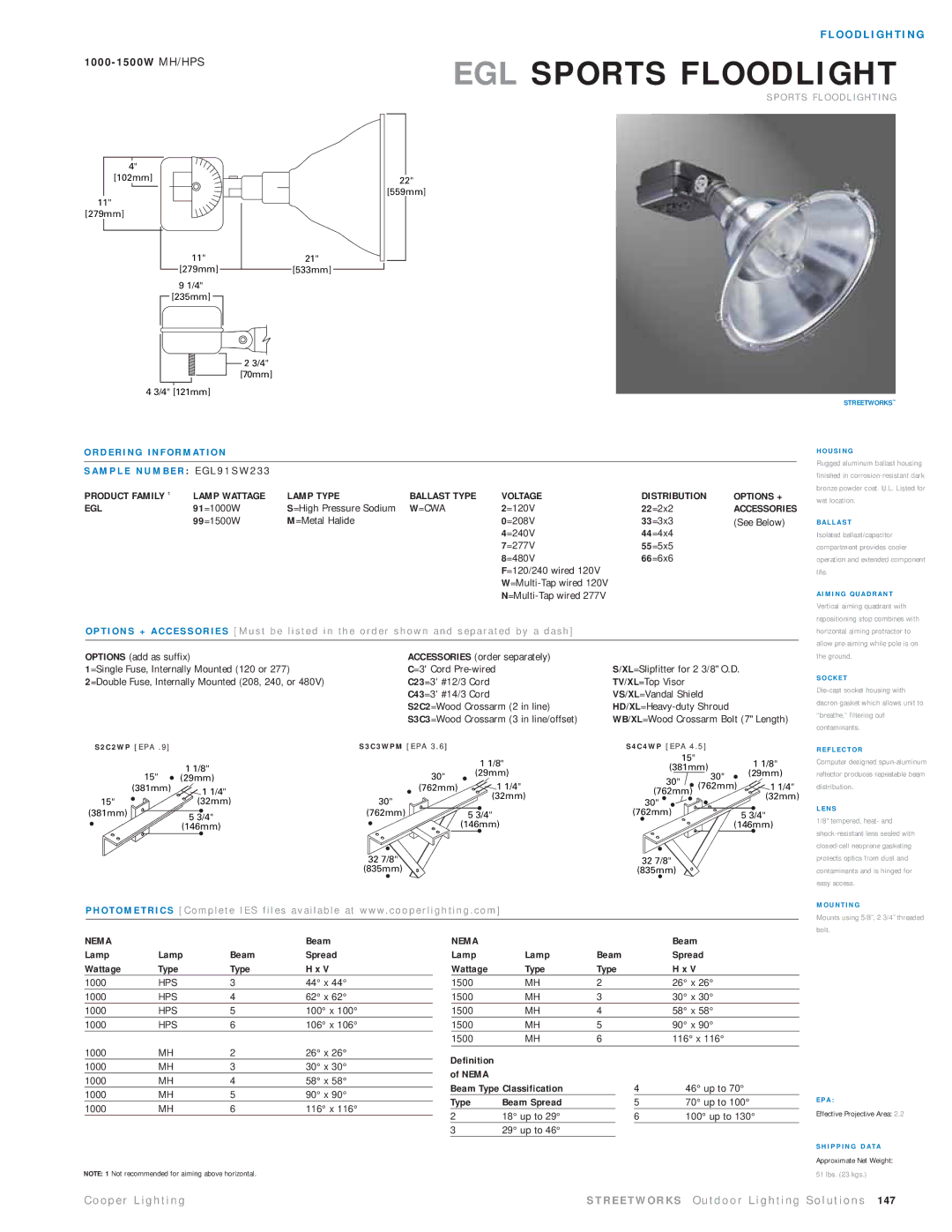

Cooper Lighting EGL91SW233 manual Streetworks, U S I N G, L L a S T, M I N G Q U a D R a N T, N S

1000-1500W MH/HPS

4"

[102mm]

11"

[279mm]

11"21"

[279mm][533mm]

91/4"

[235mm]

2 3/4"

[70mm]

4 3/4" [121mm]

F L O O D L I G H T I N G

EGL SPORTS FLOODLIGHT

S P O RT S F L O O D L I G H T I N G

22"

[559mm]

STREETWORKS™

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : E G L 9 1 S W 2 3 3

PRODUCT FAMILY 1	LAMP WATTAGE	LAMP TYPE	BALLAST TYPE	VOLTAGE	DISTRIBUTION	OPTIONS +
EGL	91=1000W	S=High Pressure Sodium W=CWA		2=120V	22=2x2	ACCESSORIES
	99=1500W	M=Metal Halide		0=208V	33=3x3	(See Below)
				4=240V	44=4x4
				7=277V	55=5x5
				8=480V	66=6x6
				F=120/240 wired 120V
				W=Multi-Tap wired 120V
				N=Multi-Tap wired 277V
O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]
OPTIONS (add as suffix)			ACCESSORIES (order separately)
1=Single Fuse, Internally Mounted (120 or 277)			C=3' Cord Pre-wired		S/XL=Slipfitter for 2 3/8" O.D.
2=Double Fuse, Internally Mounted (208, 240, or 480V)			C23=3' #12/3 Cord		TV/XL=Top Visor
			C43=3' #14/3 Cord		VS/XL=Vandal Shield
			S2C2=Wood Crossarm (2 in line)		HD/XL=Heavy-duty Shroud
			S3C3=Wood Crossarm (3 in line/offset)		WB/XL=Wood Crossarm Bolt (7" Length)
S 2 C 2 W P [ E PA . 9 ]			S 3 C 3 W P M [ E PA 3 . 6 ]		S 4 C 4 W P [ E PA 4 . 5 ]

H O U S I N G

Rugged aluminum ballast housing finished in corrosion-resistant dark bronze powder coat. U.L. Listed for wet location.

B A L L A S T

Isolated ballast/capacitor

compartment provides cooler

operation and extended component

life.

A I M I N G Q U A D R A N T

Vertical aiming quadrant with repositioning stop combines with horizontal aiming protractor to allow pre-aiming while pole is on the ground.

S O C K E T

Die-cast socket housing with dacron gasket which allows unit to “breathe,” filtering out contaminants.

R E F L E C T O R

	1 1/8"		1 1/8"
15"		30"	(29mm)
	(29mm)
			1 1/4"
(381mm)	1 1/4"	(762mm)
			(32mm)
15"	(32mm)	30"
(381mm)	5 3/4"	(762mm)	5 3/4"
	(146mm)		(146mm)
		32 7/8"
		(835mm)

P H O T O M E T R I C S [ C o m p l e t e I E S f i l e s a v a i l a b l e a t w w w . c o o p e r l i g h t i n g . c o m ]

15"		1 1/8"
(381mm)
		(29mm)
30"	30"
	(762mm)	1 1/4"
(762mm)
30"		(32mm)
(762mm)		5 3/4"
	(146mm)

327/8"

(835mm)

Computer designed spun-aluminum reflector produces repeatable beam distribution.

L E N S

1/8" tempered, heat- and shock-resistant lens sealed with closed-cell neoprene gasketing protects optics from dust and contaminants and is hinged for easy access.

M O U N T I N G

Mounts using 5/8", 2 3/4" threaded bolt.

NEMA			Beam
Lamp	Lamp	Beam	Spread
Wattage	Type	Type	H x V
1000	HPS	3	44° x 44°
1000	HPS	4	62° x 62°
1000	HPS	5	100° x 100°
1000	HPS	6	106° x 106°
1000	MH	2	26° x 26°
1000	MH	3	30° x 30°
1000	MH	4	58° x 58°
1000	MH	5	90° x 90°
1000	MH	6	116° x 116°

NOTE: 1 Not recommended for aiming above horizontal.

NEMA				Beam
Lamp	Lamp	Beam		Spread
Wattage	Type	Type		H x V
1500	MH	2		26° x 26°
1500	MH	3		30° x 30°
1500	MH	4		58° x 58°
1500	MH	5		90° x 90°
1500	MH	6		116° x 116°
Definition
of NEMA
Beam Type Classification			4	46° up to 70°
Type	Beam Spread		5	70° up to 100°
2	18° up to 29°		6	100° up to 130°
3	29° up to 46°

E PA :

Effective Projective Area: 2.2

S H I P P I N G D ATA

Approximate Net Weight:

51 lbs. (23 kgs.)

C o o p e r L i g h t i n g S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s 147
