COOPER LIGHTING - METALUX®

D I M E N S I O N S

NOMINAL LENGTH

A

B

4', 8'

13" (330mm)

6 7/8" (175mm)

O R D E R I N G I N F O R M AT I O N

D E S C R I P T I O N

The EIVM Series is an energy efficient family of industrials that features premium performance and durability. The industrial series incorporates heavy duty, embossed, reflectors that precisely direct and effectively control light. The EIVM reflector has an inward flange developed to prevent debris accumulation in special applications. The special deep center “V” reflector provides 30° crosswise lamp shielding to minimize glare. The versatile EIVM can be installed using various mounting methods and numerous options and accessories are available. The EIVM can be utilized in simple task and area lighting to the most demanding specialized industrial applications with environmental requirements.

EIVM SERIES

4 ' o r 8 ' I n d u s t r i a l 2 L a m p

E N V I R O N M E N TA L C E N T E R

“ V ” I N D U S T R I A L

• Equipped with energy

saving ballasts/complies

with federal energy

efficiency standards

S A M P L E N U M B E R : E I V M - 2 3 2 - 1 2 0 V - E B 8 1 - U

Tandem

Blank=4' Length 8T=8' Length

Series

EIVM=Apertured

Reflector

ECIVM=Closed Top

Reflector

Number

of Lamps

2Lamps

(Not included)

Wattage (Length)

40=34/40W T12 (48")

32=32W T8 (48")

48=40W T12 (48") SL 48HO=60W T12 (48") HO 48HO=44W T8 (48") HO 48VHO=110W (48") VHO 96=60/75W T12 (72") SL 96=59W T8 (96") SL 96HO=95/110W T12 (96") HO 96HO=86W T8 (96") HO 96VHO=185/215W (96") VHO 96PG=185/215W (96") PG

Voltage(1)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal

Voltage 120-277 (2)

Options

GL=Single Element Fuse GM=Double Element Fuse Emergency - for EM installed, see EM options table

















































Options



Packaging









(See Options



U=Unit Pack

Ballast Type(1)



Section)



4B=4 Bulk



Blank=Standard Magnetic Ballast

LE3=T12 Magnetic Energy Saving

EB8 = T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start.







High Ballast Factor >1.13. Total

No. of

Harmonic Distortion < 20%

Ballast



1, 2 or 3



ER8 = T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

TEB8 =T8 Electronic Instant Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

Die formed channels

Unique reflector design



prevents debris



accumulation

Heavy duty apertured,



(EIVM) or closed top,



(ECIVM) reflector with



Center “V”

• Deep draw full width



reflector ribs add rigidity

• Center “V” provides 30°



crosswise shielding/



reduces glare

Metal clad lampholders



with spring loaded sockets

• Baked white enamel finish

Apertured reflector (EIVM)



standard with 20% uplight

Porlux and Silverlining



finishes available(3)

• Wire guards available for



special applications

• Also available in tandem 8'



lengths

• UL/CUL Listed. Suitable for



damp locations.

INDUSTRIALS

NOTES: (1)Products also available in non-US voltages and frequencies for international markets. (2)Not available when specifying emergencies, voltage must be specific.



(3)Silver lining not available on fixtures with HO, VHO or PG.



For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting

COOPER LIGHTING

Representative for availability and ordering information.

453

Page 1

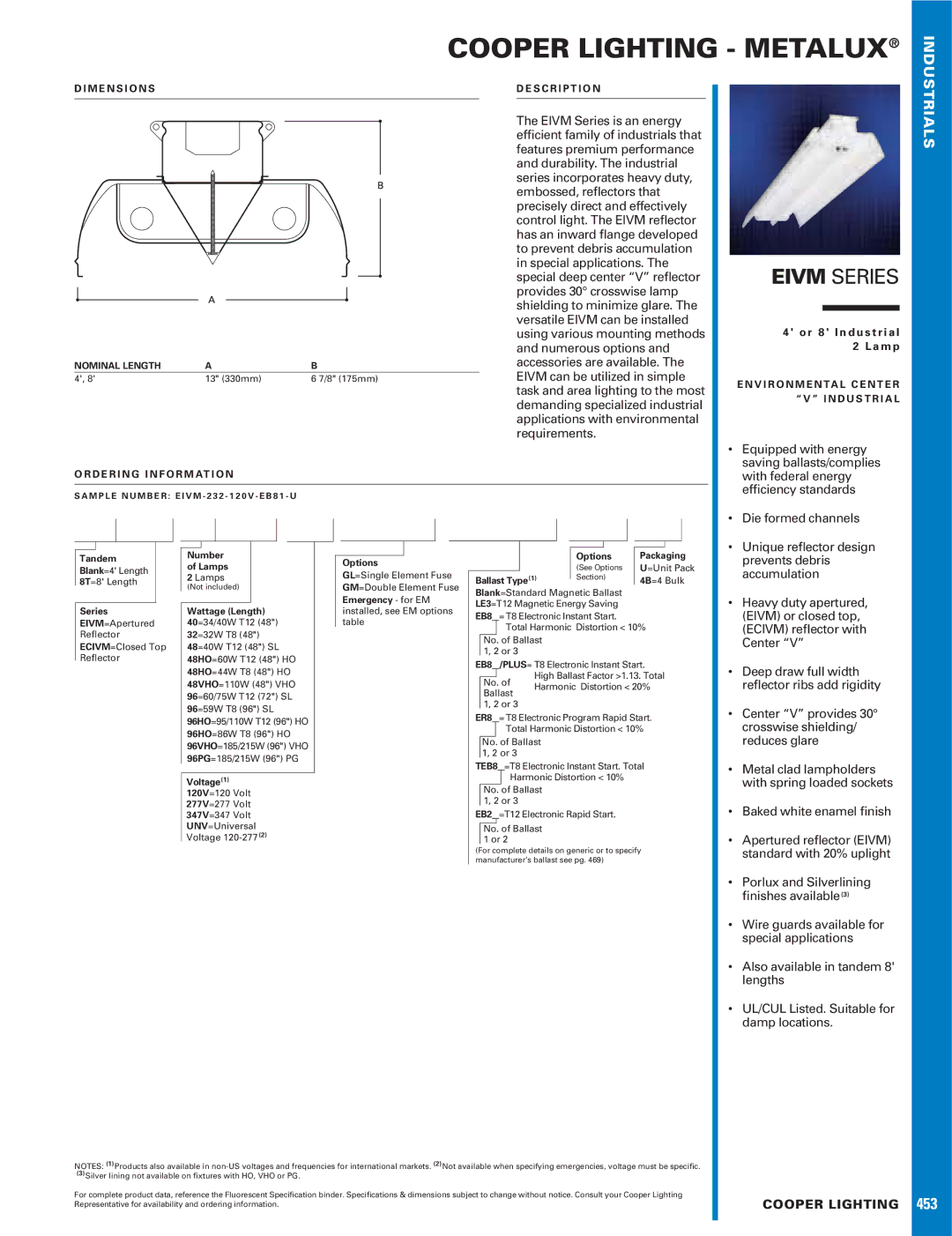

Image 1
