D I M E N S I O N S

M O U N T I N G







B







B

B

C













C







A

B

C

1' Nom. Length

6 3/8"

14 3/8"

12 3/16"



(162mm)

(365mm)

(310mm)

2' Nom. Length

6 3/8"

14 3/8"

26 3/16"



(162mm)

(365mm)

(665mm)

4' Nom. Length

6 3/8"

14 3/8"

50 3/16"

AA

(162mm)

(365mm)

(1275mm)

O R D E R I N G I N F O R M AT I O N

D E S C R I P T I O N

The Fail-Safe FDX Series combines maximum security construction features with energy saving technology. This wall mounted luminaire utilizes a one piece clamshell housing, security lensing and tamper resistant fasteners to maximize impact resistance and prevent contraband concealment and unauthorized fixture penetration. An emergency battery pack is available as an option. U.L. listed and C.S.A. certified for wet locations.

FAIL-SAFE®

CONFINEMENT



FDX

1 3 W - 1 6 0 W

F l u o r e s c e n t

M A X I M U M S E C U R I T Y

WA L L L U M I N A I R E

S A M P L E N U M B E R : F D X - 1 / 1 1 3 - 1 2 0 - 8 0 / 8 6 - E B T 1 - G L R

Product Family

FDX=Maximum

Security

Wall

Luminaire











Lamp Type

Biaxial Fluorescents



1' Nom. Length

1/140BX=(2) 40W



Compact



Lamps





1 Up, 1



Fluorescents







Down



1/113=(2) 13W Lamps





4' Nom. Length



1 Up, 1 Down



1/213=(3) 13W Lamps

T5 Fluorescents



1 Up, 2 Down



1/128=(2) 28W Lamps



2/113=(3) 13W Lamps





1 Up, 1 Down



2 Up, 1 Down





1/28=(3) 28W Lamps



2/213=(4) 13W Lamps





1 Up, 2 Down



2 Up, 2 Down





2/128=(3) 28W Lamps



2' Nom. Length





2 Up, 1 Down



T5 Fluorescents

2/228=(4) 28W Lamps





2 Up, 2 Down



1/114=(2) 14W Lamps











1 Up, 1 Down

T8 Fluorescents



1/214=(3) 14W Lamps

1/132=(2) 40W Lamps



1 Up, 2 Down



1 Up, 1 Down



2/114=(3) 14W Lamps

1/232=(3) 32W Lamps



2 Up, 1 Down





1 Up, 2 Down



2/214=(4) 14W Lamps





2/132=(3) 32W Lamps



2 Up, 2 Down





2 Up, 1 Down









T8 Fluorescents

2/232=(4) 32W Lamps



1/117=(2) 17W Lamps



2 Up, 2 Down



1 Up, 1 Down

T12 Fluorescents



1/217=(3) 17W Lamps



1/140=(2) 40W Lamps



1 Up, 2 Down





1 Up, 1 Down



2/117=(3) 17W Lamps





1/240=(3) 40W Lamps



2 Up, 1 Down





1 Up, 2 Down



2/217=(4) 17W Lamps





2/140=(3) 40W Lamps



2 Up, 2 Down





2 Up, 1 Down









T12 Fluorescents 2

2/240=(4) 40W Lamps



1/120=(2) 20W Lamps



2 Up, 2 Down



1 Up, 1 Down







1/220=(3) 20W Lamps







1 Up, 2 Down







2/120=(3) 20W Lamps







2 Up, 1 Down













2/220=(4) 20W Lamps







2 Up, 2 Down















Voltage







120=120V







277=277V







UNV=120V through 277V











Lens Type

/



Inner Layer

Environmental

(optional)



Side

90=.005 UV



84=.125 Clear

Absorbing



Polycarbonate

Overlay



85=.187 Clear

Fixture Side



Polycarbonate

80=.125 Prismatic

86=.250 Clear

Acrylic



Polycarbonate

81=.156 Prismatic

87=.375 Clear

Polycarbonate

Polycarbonate

82=.187 Prismatic

88=.500 Clear

Polycarbonate

Polycarbonate3

93=.156 Prismatic

94=.187 Clear

Tempered



Tempered

Glass



Glass





96=.250 Clear





Tempered





Glass

97=.375 Clear

Tempered

Glass

98=.500 Clear

Tempered

Glass3

Ballast

Blank=Magnetic Ballast (Standard)4

LEOC8=T8 Energy Saving Ballast

LE3=40W T12 Energy Saving Ballast

Electronic Ballast1

EBT1=(1) Ballast for use with Compact Lamp EBT2=(2) Ballasts for use with Compact Lamp EB81=(1) Ballast for use with T8 Lamp EB82=(2) Ballasts for use with T8 Lamp EB51=(1) Ballast for use with T5 Lamp EB52=(2) Ballasts for use with T5 Lamp EB21=(1) Ballast for use with T12 Lamp2 EB22=(2) Ballasts for use with T12 Lamp2 EBX1=(1) Ballast for use with Biaxial Lamp EBX2=(2) Ballasts for use with Biaxial Lamp

Options

DSR=Duplex Security

Receptacle EBP=Emergency Battery

Pack FNL=Fluorescent Night

Light

(Lamp by others.) GLR=Fuse and Holder RIF=Radio Interference

Filter SPK=Speaker Housing

Compartment (extends housing)

Auto Control Modules

ACM/FNL=for FNL

On/Off Switches

SPS=Security Push Button

TCS=Touch Control

System 5

Stainless Steel Housing

SSN=Natural Brushed

Finish

SSP=Polyester Powder

Coat Finish

Fasteners

SF3=Allen-Head (center pin reject)

Accessories (Order Separately)

9306=Allen-Head Wrench

VRSD=TORX®-Head Vandal

Resistant Screwdriver

Lens choice of prismatic acrylic, prismatic poly- carbonate or prismatic tempered glass on fixture side, clear polycarbonate or clear tempered glass on environmental side

Stainless steel tamper- resistant TORX® screws with center pin reject are standard. Allen-head screws with center pin reject are optional

Clamshell design combines die-formed 14 ga. CRS body with continuous welded and ground ends. Standard white high reflectance polyester powder coat finish

Lamps by others

Lens secured by thru-studs and vertically adjustable internal CRS hold-downs

Continuous, concealed piano hinge

Die-formed CRS backplate (gauge to match housing)

Standard Class P, CBM/ETL ballast

U.L. listed, C.S.A. certified, standard wet label

Notes: For additional options, consult your Cooper Lighting Representative. Specifications and Dimensions subject to change without notice. Electronic ballast may cause interference with other electronic devices. If interference occurs, move the device away from the product or plug/connect into a different circuit/outlet.

1For specific electronic ballast, specify brand and catalog number. 2 Electronic ballast not available for F20T12 lamps. 3 88 and 98 require 80 option on fixture side. 4 For use with Compact Fluorescent, Biaxial, and 20W T12 lamps. 5 For additional information about the TCS option see pages 1106 and 1107.

COOPER LIGHTING 1453

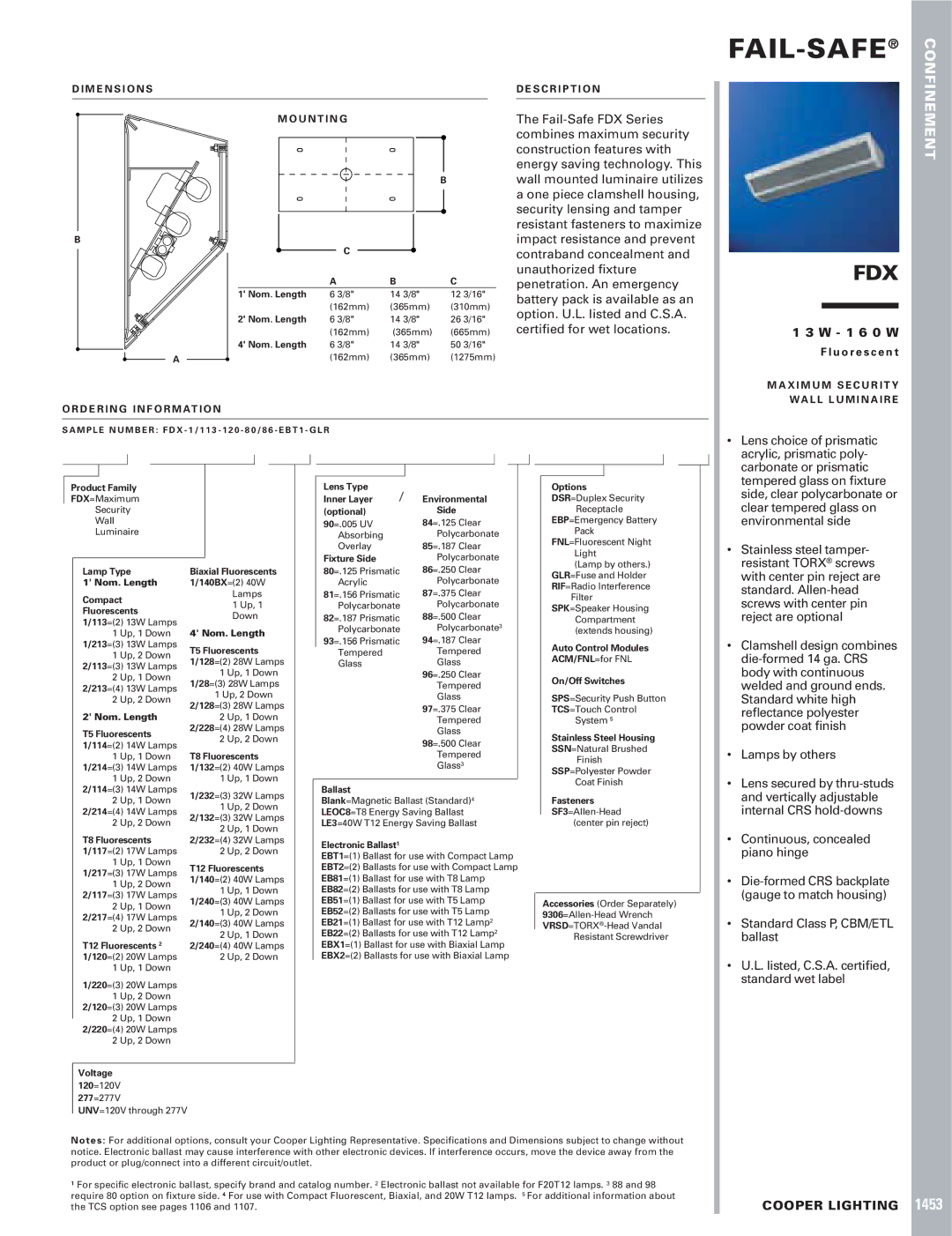

Page 1
