#6-32 x1/2" (12.7mm)
6 Socket cap allen screw



Supplementary Installation Instructions



Sheet 1 of 1

Removing and Sealing Ametrix Fixture Doors

Warning: Before starting any work ensure



that all sources of power are turned off. All

Specific details such as fixture and pendant style may differ,

work must meet local/national codes and be

performed by a certified electrician. Do not

however the mounting configurations are universal.

mount fixtures vertically.





To Remove Fixture Door





Screws on outdoor

Door Latch

fixture only



15

This side to surface

1.If fixture is indoor, slide door latches to open.

2.If fixture is outdoor, remove screws and slide door latches to open.

3.After releasing door, hold door at approximately a fifteen degree angle and push door away from fixture.

Torque Sequence

#6-32 x5/8" (15.8mm)

2Socket cap allen screw

2 & 3ft Fixtures

#6-32 x5/8" (15.8mm)

3 Socket cap allen screw

4

1

5 #6-32 x1/2" (12.7mm)

#6-32 x1/2" (12.7mm)

#6-32 x1/2" (12.7mm)

Socket cap allen screw

Socket cap allen screw

Socket cap allen screw

#6-32 x5/8" (15.8mm)





#6-32 x5/8" (15.8mm)

2 Socket cap allen screw



3



4ft Fixtures



Socket cap allen screw







4 #6-32 x1/2" (12.7mm)

5 #6-32 x1/2" (12.7mm)

1 #6-32 x1/2" (12.7mm)

Socket cap allen screw

Socket cap allen screw

Socket cap allen screw

1. Tighten each screw in the order specified above.

2.Using torque Allen driver, and beginning with screw 1, tighten screw to 5 inch pounds of torque.

3.Next, tighten screw 2 to 5 inch pounds of torque.

4.Continue through all screws, following above sequence, tightening each screw to 5 inch pounds of torque.

5.Repeat sequence tightening all screws to a final 10 inch pounds of torque.

ADY071485 REV A(ECN070344)

Page 1 Page 1
Page 1
Image 1

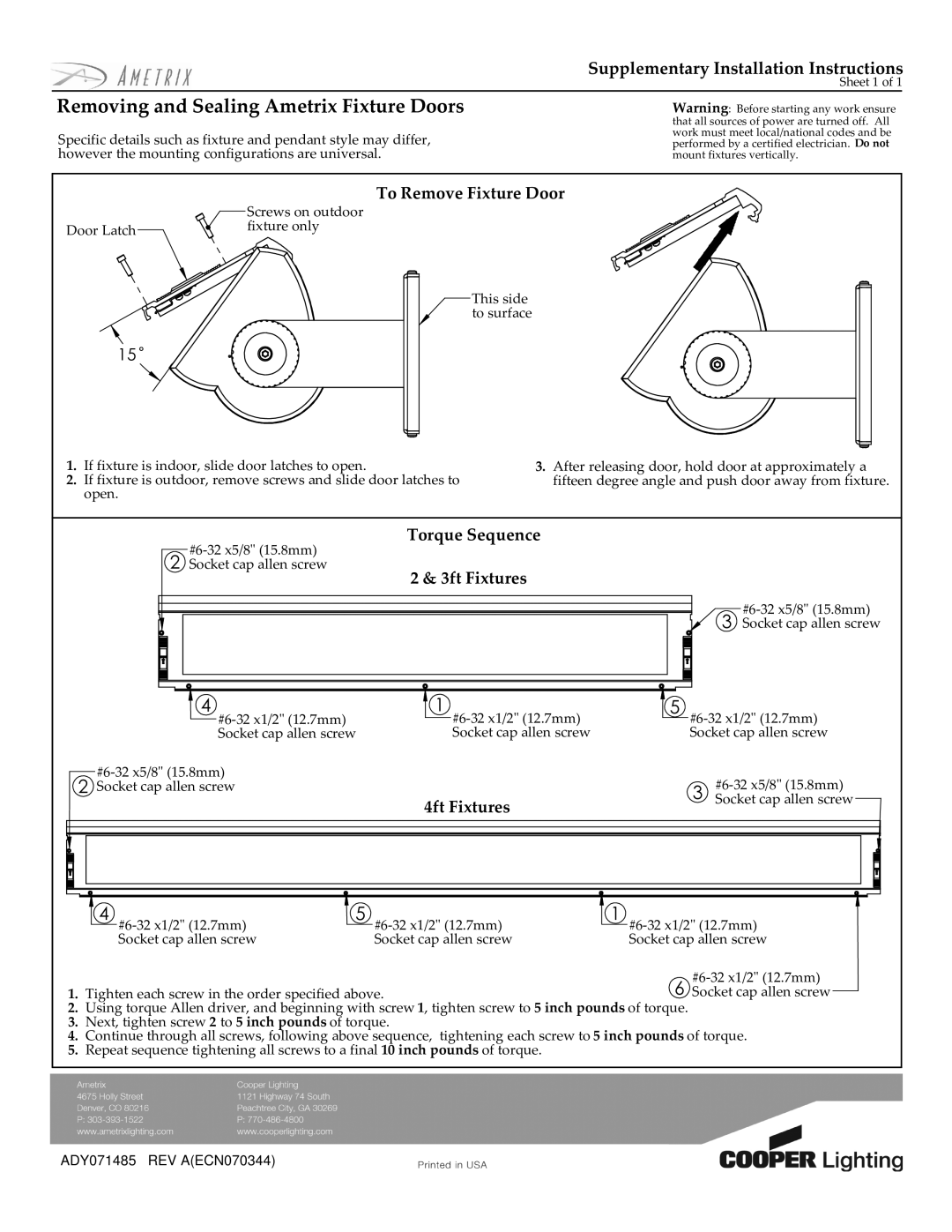

Cooper Lighting installation instructions Removing and Sealing Ametrix Fixture Doors, To Remove Fixture Door
