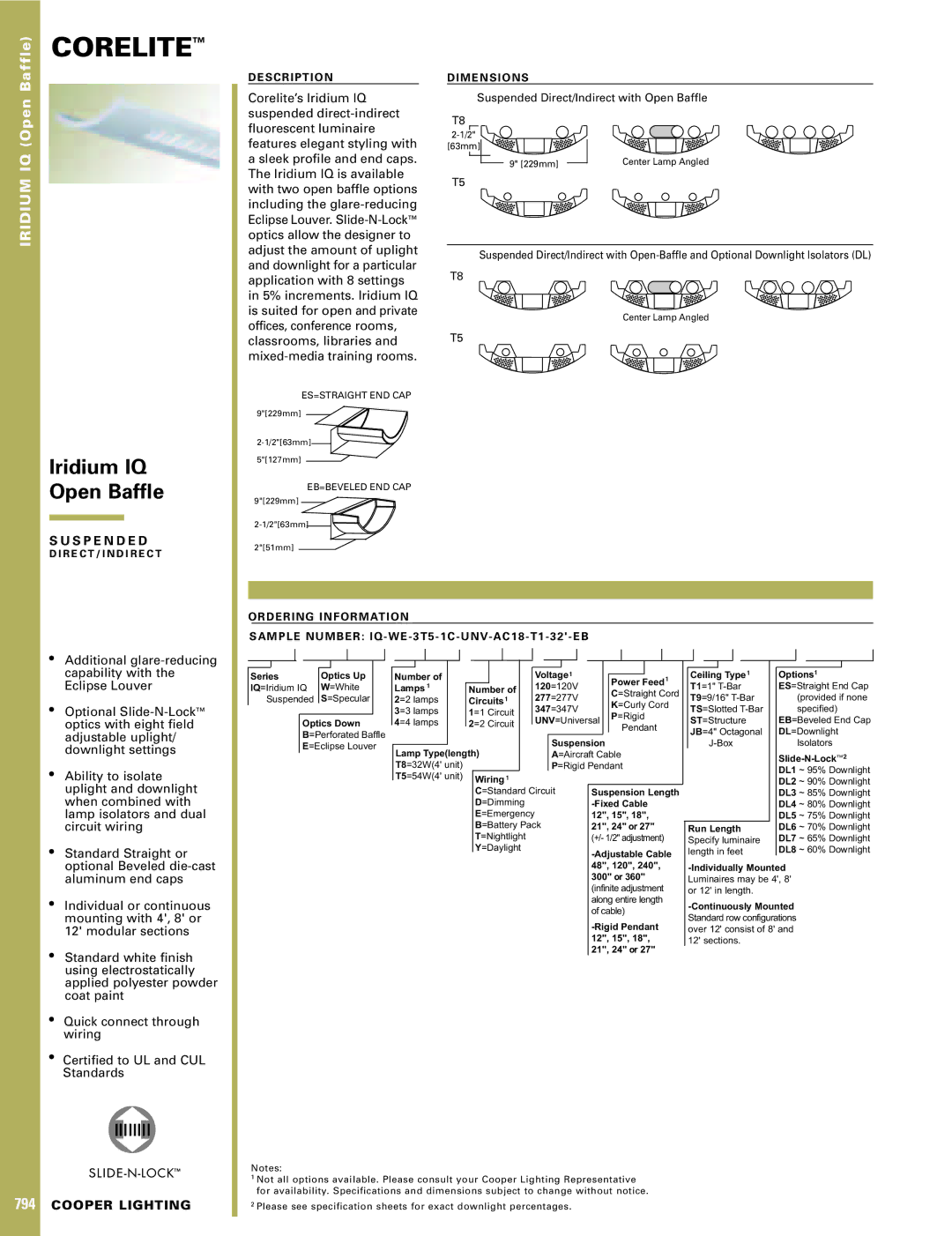

DESCRIPTION

Corelite’s Iridium IQ suspended direct-indirect fluorescent luminaire features elegant styling with a sleek profile and end caps. The Iridium IQ is available with two open baffle options including the glare-reducing Eclipse Louver. Slide-N-Lock™optics allow the designer to adjust the amount of uplight and downlight for a particular application with 8 settings in 5% increments. Iridium IQ is suited for open and private offices, conference rooms, classrooms, libraries and mixed-media training rooms.

ES=STRAIGHT END CAP

9"[229mm]

2-1/2"[63mm] 5"[127mm]

EB=BEVELED END CAP

9"[229mm]

2-1/2"[63mm]

2"[51mm]

DIMENSIONS

Suspended Direct/Indirect with Open Baffle

T8

2-1/2"

[63mm]

9" [229mm] Center Lamp Angled

T5

Suspended Direct/Indirect with Open-Baffle and Optional Downlight Isolators (DL)

T8

Center Lamp Angled

T5

ORDERING INFORMATION

SAMPLE NUMBER: IQ-WE-3T5-1C-UNV-AC18-T1-32'-EB

Additional glare-reducing capability with the Eclipse Louver

Optional Slide-N-Lock™optics with eight field adjustable uplight/ downlight settings

Ability to isolate uplight and downlight when combined with lamp isolators and dual circuit wiring

Standard Straight or optional Beveled die-cast aluminum end caps

Individual or continuous mounting with 4', 8' or 12' modular sections

Standard white finish using electrostatically applied polyester powder coat paint

Quick connect through wiring

Certified to UL and CUL Standards

Series	Optics Up	Number of		Voltage1		Power Feed1
	W=White		Number of	120=120V
IQ=Iridium IQ		Lamps 1				C=Straight Cord
Suspended	S=Specular	2=2 lamps	Circuits1	277=277V
						K=Curly Cord
		3=3 lamps	1=1 Circuit	347=347V
Optics Down		4=4 lamps	2=2 Circuit	UNV=Universal		P=Rigid
						Pendant
B=Perforated Baffle
				Suspension
E=Eclipse Louver
		Lamp Type(length)		A=Aircraft Cable
		T8=32W(4' unit)		P=Rigid Pendant
		T5=54W(4' unit)	Wiring 1
			C=Standard Circuit		Suspension Length
			D=Dimming		-Fixed Cable
			E=Emergency		12", 15", 18",
			B=Battery Pack		21", 24" or 27"
			T=Nightlight		(+/- 1/2" adjustment)
			Y=Daylight		-Adjustable Cable

48", 120", 240", 300" or 360" (infinite adjustment along entire length of cable)

-Rigid Pendant 12", 15", 18", 21", 24" or 27"

Ceiling Type1	Options1
T1=1" T-Bar	ES=Straight End Cap
T9=9/16" T-Bar	(provided if none
TS=Slotted T-Bar	specified)
ST=Structure	EB=Beveled End Cap
JB=4" Octagonal	DL=Downlight
J-Box	Isolators
	Slide-N-Lock™2
	DL1 ~ 95% Downlight
	DL2 ~ 90% Downlight
	DL3 ~ 85% Downlight
	DL4 ~ 80% Downlight
	DL5 ~ 75% Downlight
Run Length	DL6 ~ 70% Downlight
Specify luminaire	DL7 ~ 65% Downlight
length in feet	DL8 ~ 60% Downlight

-Individually Mounted Luminaires may be 4', 8' or 12' in length.

-Continuously Mounted Standard row configurations over 12' consist of 8' and 12' sections.

794 COOPER LIGHTING

Notes:

1Not all options available. Please consult your Cooper Lighting Representative for availability. Specifications and dimensions subject to change without notice.

2Please see specification sheets for exact downlight percentages.
