SUSPENDED |
|
|
18"
[457mm]
ORDERING INFORMATION:
Sample number:
Series 14=Geo
Light Output
MIN.
Number of Lamps Up (not included)

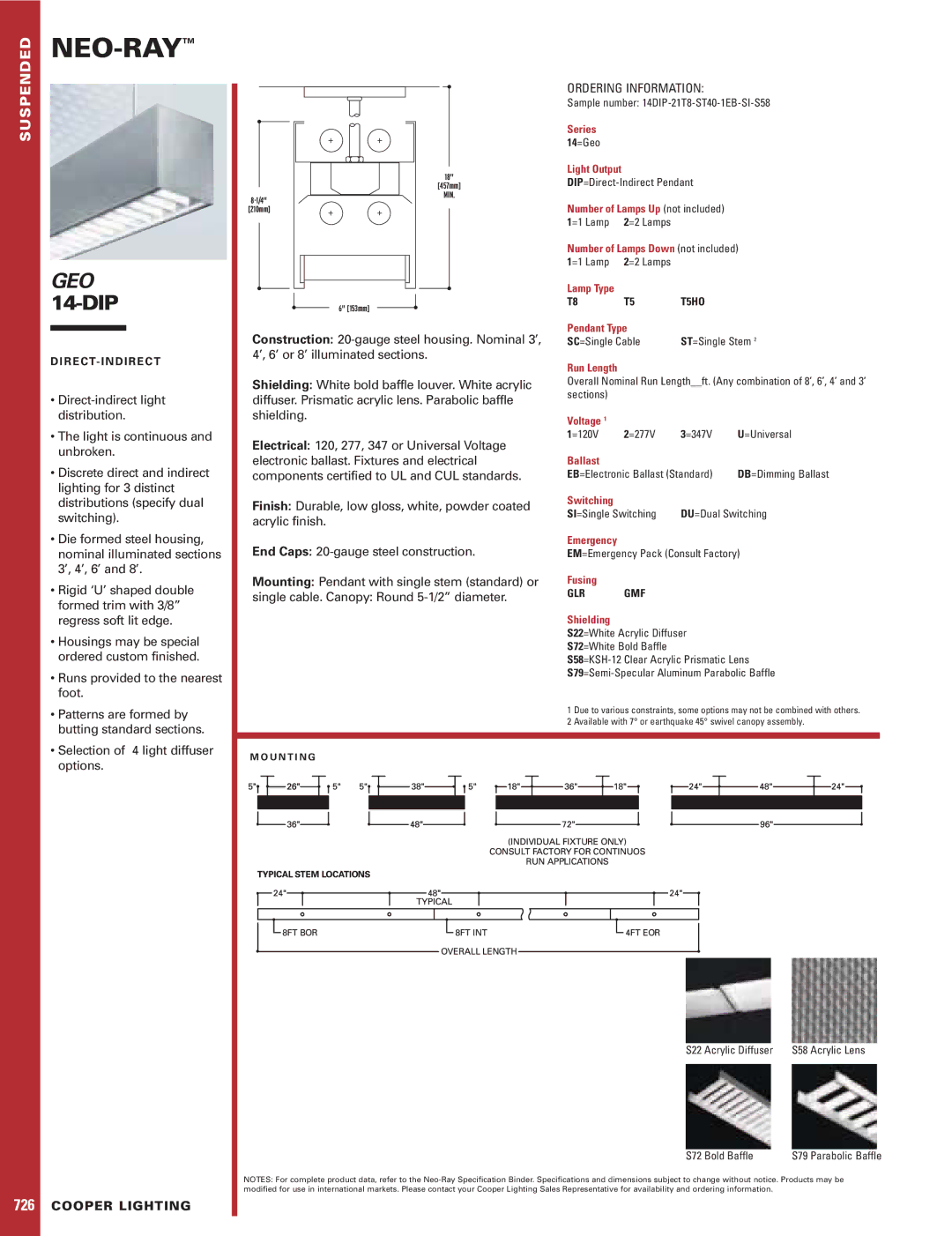

GEO 14-DIP
D I R E C T- I N D I R E C T
• |
distribution. |
• The light is continuous and |
unbroken. |
• Discrete direct and indirect |
lighting for 3 distinct |
distributions (specify dual |
switching). |
• Die formed steel housing, |
nominal illuminated sections |
3’, 4’, 6’ and 8’. |
• Rigid ‘U’ shaped double |
formed trim with 3/8” |
regress soft lit edge. |
• Housings may be special |
ordered custom finished. |
• Runs provided to the nearest |
foot. |
• Patterns are formed by |
butting standard sections. |
• Selection of 4 light diffuser |
6" [153mm]
Construction:
Shielding: White bold baffle louver. White acrylic diffuser. Prismatic acrylic lens. Parabolic baffle shielding.
Electrical: 120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.
Finish: Durable, low gloss, white, powder coated acrylic finish.
End Caps:
Mounting: Pendant with single stem (standard) or
single cable. Canopy: Round
1=1 Lamp | 2=2 Lamps |
|
Number of Lamps Down (not included) | ||
1=1 Lamp | 2=2 Lamps |
|
Lamp Type |
|
|
T8 | T5 | T5HO |
Pendant Type |
| |
SC=Single Cable | ST=Single Stem 2 | |
Run Length
Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)
Voltage 1 |
|
|
|
1=120V | 2=277V | 3=347V | U=Universal |
Ballast |
|
|
|
EB=Electronic Ballast (Standard) | DB=Dimming Ballast | ||
Switching |
|
|
|
SI=Single Switching | DU=Dual Switching | ||
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding
S22=White Acrylic Diffuser
S72=White Bold Baffle
1 Due to various constraints, some options may not be combined with others. 2 Available with 7° or earthquake 45° swivel canopy assembly.
options. |
726 COOPER LIGHTING
M O U N T I N G
S22 Acrylic Diffuser | S58 Acrylic Lens |
S72 Bold Baffle | S79 Parabolic Baffle |
NOTES: For complete product data, refer to the
