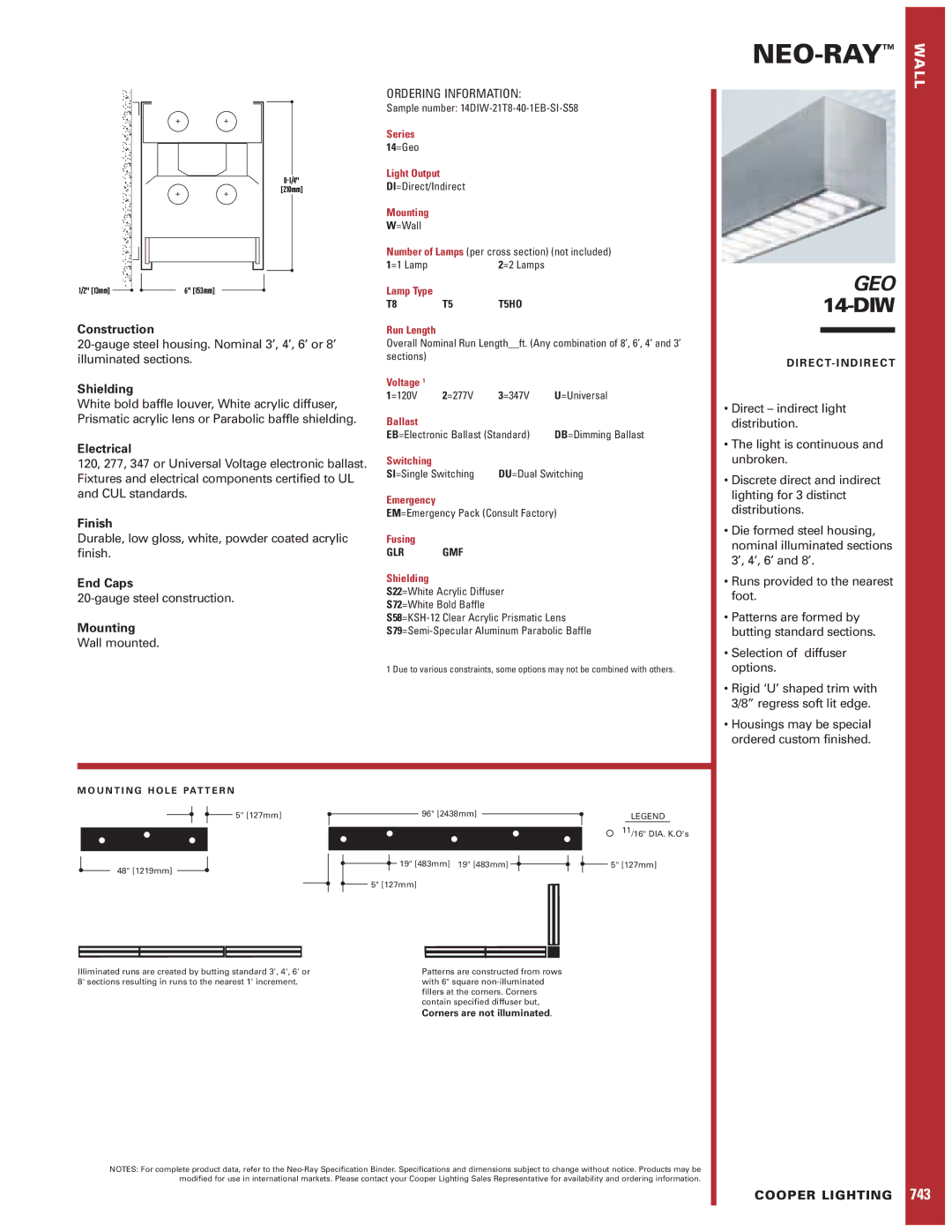

Cooper Lighting Geo 14-DIW specifications Neo-Ray, GEO 14-DIW, Construction, Shielding, Finish

1/2" [13mm]

8-1/4" [210mm]

6" [153mm]

ORDERING INFORMATION:

Sample number: 14DIW-21T8-40-1EB-SI-S58

Series 14=Geo

Light Output

DI=Direct/Indirect

Mounting

W=Wall

Number of Lamps (per cross section) (not included)

1=1 Lamp 2=2 Lamps

Lamp Type

T8T5T5HO

NEO-RAY™ WALL

GEO 14-DIW

Construction

20-gauge steel housing. Nominal 3’, 4’, 6’ or 8’ illuminated sections.

Shielding

White bold baffle louver, White acrylic diffuser, Prismatic acrylic lens or Parabolic baffle shielding.

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

Voltage 1
1=120V	2=277V	3=347V	U=Universal
Ballast
EB=Electronic Ballast (Standard)			DB=Dimming Ballast

D I R E C T- I N D I R E C T

• Direct – indirect light

distribution.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

End Caps

20-gauge steel construction.

Mounting

Wall mounted.

Switching
SI=Single Switching	DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

Shielding

S22=White Acrylic Diffuser

S72=White Bold Baffle

S58=KSH-12 Clear Acrylic Prismatic Lens

S79=Semi-Specular Aluminum Parabolic Baffle

1 Due to various constraints, some options may not be combined with others.

• The light is continuous and

unbroken.

• Discrete direct and indirect

lighting for 3 distinct

distributions.

• Die formed steel housing,

nominal illuminated sections

3’, 4’, 6’ and 8’.

• Runs provided to the nearest

foot.

• Patterns are formed by

butting standard sections.

• Selection of diffuser

options.

• Rigid ‘U’ shaped trim with

3/8” regress soft lit edge.

• Housings may be special

ordered custom finished.

M O U N T I N G H O L E PAT T E R N

5" [127mm]	96" [2438mm]		LEGEND
			11/16" DIA. K.O's
48" [1219mm]	19" [483mm]	19" [483mm]	5" [127mm]
	5" [127mm]

Illiminated runs are created by butting standard 3', 4', 6' or	Patterns are constructed from rows
8' sections resulting in runs to the nearest 1' increment.	with 6" square non-illuminated
	fillers at the corners. Corners
	contain specified diffuser but,
	Corners are not illuminated.

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

COOPER LIGHTING 743
