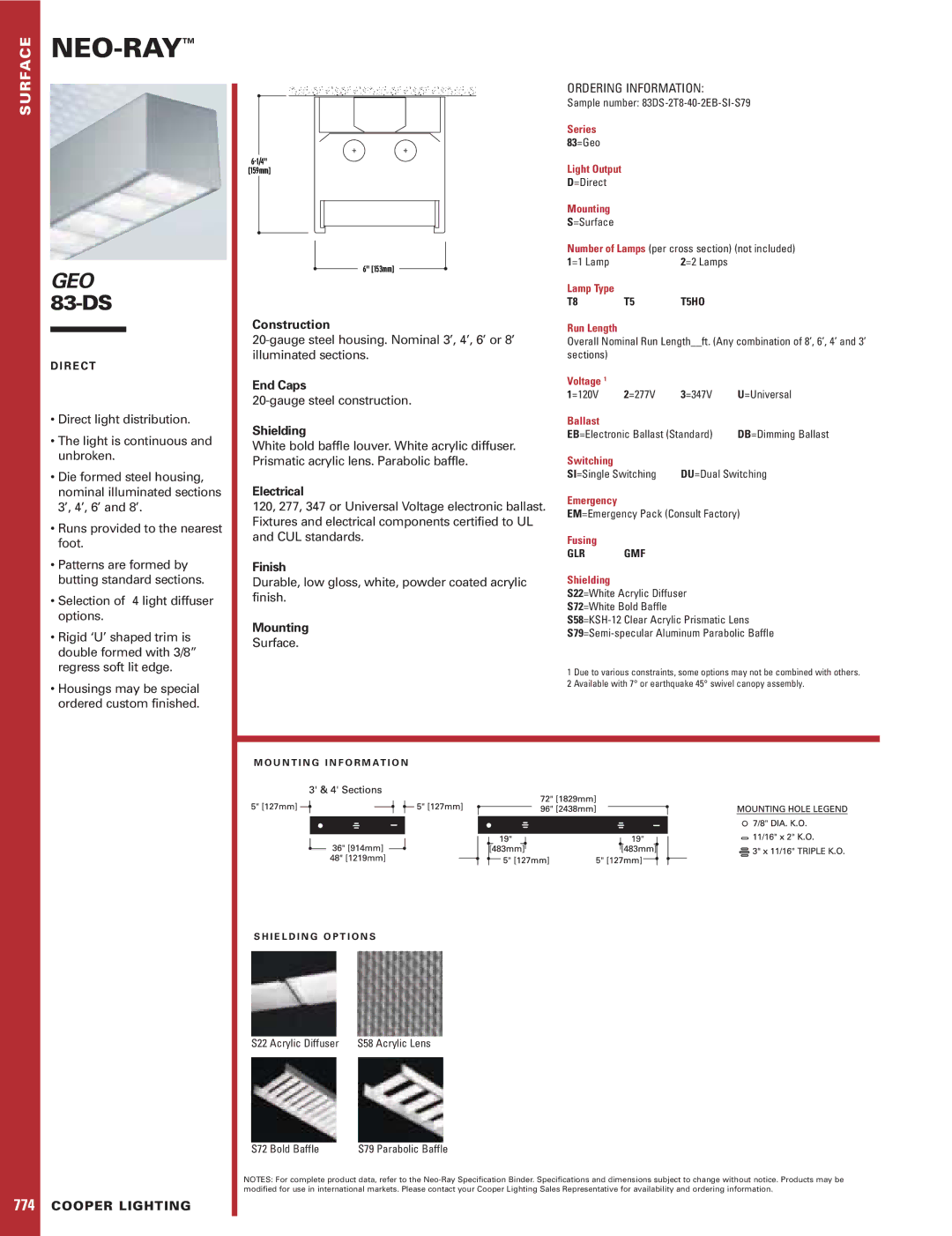

SURFACE

GEO

83-DS

DIRECT
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
774 COOPER LIGHTING
Construction
20-gauge steel housing. Nominal 3’, 4’, 6’ or 8’
illuminated sections.
End Caps
20-gauge steel construction.
Shielding
White bold baffle louver. White acrylic diffuser.
Prismatic acrylic lens. Parabolic baffle.
Electrical
120, 277, 347 or Universal Voltage electronic ballast.
Fixtures and electrical components certified to UL
and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic
finish.
Mounting
Surface.
ORDERING INFORMATION:
Sample number: 83DS-2T8-40-2EB-SI-S79
Series
83=Geo
Light Output
D=Direct
Mounting
S=Surface
Number of Lamps (per cross section) (not included)
1=1 Lamp 2=2 Lamps
Lamp Type
T8 T5 T5HO
Run Length
Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’
sections)
Voltage 1
1=120V 2=277V 3=347V U=Universal
Ballast
EB=Electronic Ballast (Standard) DB=Dimming Ballast
Switching
SI=Single Switching DU=Dual Switching
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding
S22=White Acrylic Diffuser
S72=White Bold Baffle
S58=KSH-12 Clear Acrylic Prismatic Lens
S79=Semi-specular Aluminum Parabolic Baffle
1 Due to various constraints, some options may not be combined with others.
2 Available with 7° or earthquake 45° swivel canopy assembly.
• Direct light distribution.
• The light is continuous and
unbroken.
• Die formed steel housing,
nominal illuminated sections
3’, 4’, 6’ and 8’.
• Runs provided to the nearest
foot.
• Patterns are formed by
butting standard sections.
• Selection of 4 light diffuser
options.
• Rigid ‘U’ shaped trim is
double formed with 3/8”
regress soft lit edge.
• Housings may be special
ordered custom finished.
6" [153mm]
6-1/4"
[159mm]
MOUNTING INFORMATION
SHIELDING OPTIONS
S22 Acrylic Diffuser S58 Acrylic Lens
S72 Bold Baffle
SURFACE
S79 Parabolic Baffle
NEO-RAY
